For New Designs, we highly recommend to consider Revision B for Prototypes and Production.

Microchip's ARM®-based SAM 4S16 microcontroller builds on the high-performance 32-bit Cortex®-M4 core.

The SAM4S16 features:

• Maximum operating speed of 120MHz
• 1MB of flash memory and 128KB of SRAM
• 1.62V to 3.6V supply
• Power consumption 200uA/MHz in dynamic mode at low operating frequency, 30mA at 100MHz and 3uA at 1.8V in back-up mode with the RTC running
• External bus interface supports SRAM, PSRAM, NOR Flash, LCD module and NAND Flash
• Extensive peripheral set for connectivity, system control and analog interfacing
• Native support for Microchip QTouch capacitive touch technology for implementation of buttons, sliders and wheels
• Pin-to-pin compatible with Microchip SAM7S, SAM3N and SAM3S MCUs
• Parallel Input/Output (IO) data capture mode

Get started with your application development now with the SAM4S evaluation kit, integrating a comprehensive development tool and software package. To reduce your time-to-market, Microchip and industry-leading third parties provide a worldwide support ecosystem.

Microcontroller Features

Core

• ARM Cortex-M4 running at up to 120 MHz

• Memory Protection Unit (MPU)

• DSP Instructions, Floating Point Unit (FPU), Thumb®-2 instruction set

Memories

• 1024 Kbytes embedded Flash, ECC, Security Bit and Lock Bits

• 128 Kbytes embedded SRAM

• 16 Kbytes ROM with embedded boot loader routines (UART, USB) and IAP routines

• 8-bit Static Memory Controller (SMC): SRAM, PSRAM, NOR and NAND Flash support

• External Bus Interface - 8-bit data, 4 chip selects, 24-bit address

System

• Embedded voltage regulator for single-supply operation

• Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for Safe Operation

• Quartz or ceramic resonator oscillators: 3 to 20 MHz with clock failure detection and 32.768 kHz for RTT or system clock

• RTC with Gregorian and Persian Calendar Mode, Waveform Generation in Backup mode

• RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency inaccuracy

• Slow clock internal RC oscillator as permanent low-power mode device clock

• High-precision 8/12 MHz factory-trimmed internal RC oscillator with 4 MHz default frequency for device startup, in-application trimming access for frequency adjustment

• Two PLL up to 240 MHz for Device Clock and for USB

• Temperature Sensor

• Low-power tamper detection on two inputs, anti-tampering by immediate clear of general-purpose backup registers (GPBR)

• 22 Peripheral DMA Controllers

Low Power modes

• Sleep, Wait and Backup modes; consumption down to 1 μA in Backup mode

Package

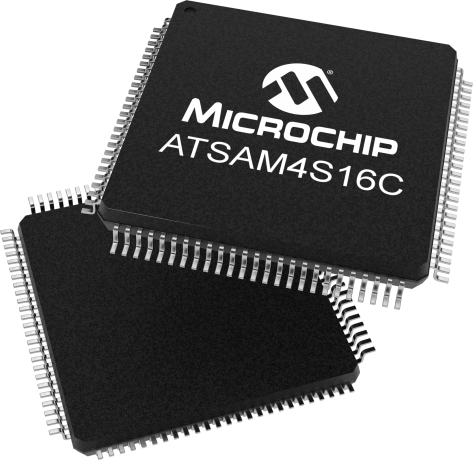

• 100-lead LQFP, 14 x 14 mm, pitch 0.5 mm

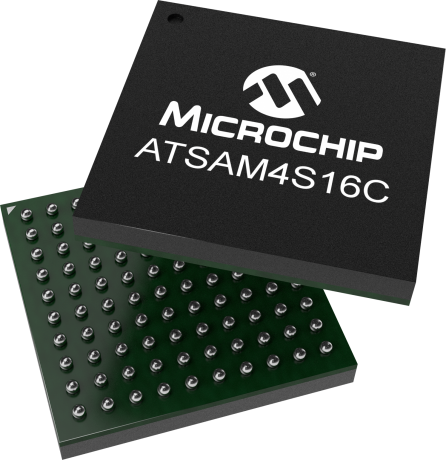

• 100-lead TFBGA, 9 x 9 mm, pitch 0.8 mm

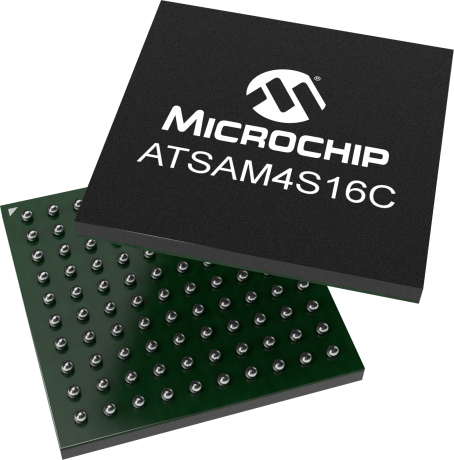

• 100-lead VFBGA, 7 x 7 mm, pitch 0.65 mm

Temperature operating range

• Revision A - Industrial (-40° C to +85° C), Revision B -(-40° C to +105° C)

Peripheral Features

• USB 2.0 Device: 12 Mbps, 2668 byte FIFO, up to 8 bidirectional Endpoints, on-chip transceiver

• Up to two USARTs with ISO7816, IrDA®, RS-485, SPI, Manchester and Modem Mode

• Two 2-wire UARTs

• Up to two 2-Wire Interface modules (I2C-compatible), one SPI, one Serial Synchronous Controller (I2S), one high-speed Multimedia Card Interface (SDIO/SD Card/MMC)

• Two 3-channel 16-bit Timer Counters with capture, waveform, compare and PWM mode, Quadrature decoder logic and 2-bit Gray up/down counter for stepper motor

• 4-channel 16-bit PWM with complementary output, fault input, 12-bit dead time generator counter for motor control

• 32-bit Real-time Timer and RTC with calendar, alarm and 32 kHz trimming features

• 256-bit General Purpose Backup Registers (GPBR)

• 32-bit Cyclic Redundancy Check Calculation Unit (CRCCU) for data integrity check of off-/on-chip memories

I/O

• 79 I/O Lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and on-die series resistor termination

• Three 32-bit Parallel Input/Output Controllers, Peripheral DMA-assisted Parallel Capture mode

Analog Features

• 16-channel, 1Msps ADC with differential input mode and programmable gain stage and auto calibration

• One 2-channel 12-bit 1Msps DAC

• One Analog Comparator with flexible input selection, selectable input hysteresis

Debugger Development Support

• Serial Wire/JTAG Debug Port(SWJ-DP)

• Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.

• Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.

• Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.

• Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.

• Instrumentation Trace Macrocell (ITM) for support of printf style debugging.

• IEEE1149.1 JTAG Boundary-scan on all digital pins.

Integrated Software Libraries and Tools

• ASF-Atmel software Framework – SAM software development framework

• Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.

• DMA support, Interrupt handlers Driver support

• USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
• RTOS integration, FreeRTOS is a core component
