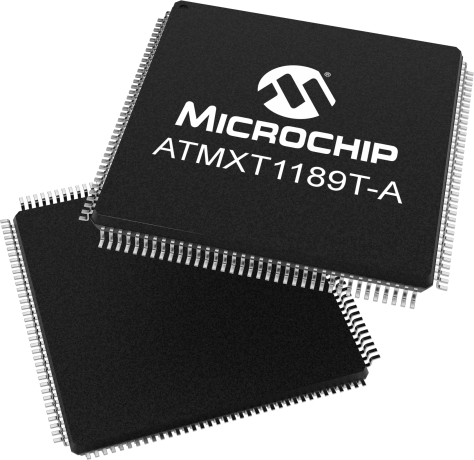

product primary image

ATMXT1189T-A

Status: In Production

Features:

  • Fully automotive-qualified (Grade 2), operating within the temperature range of -40 to +105 deg C
  • Supports up to 16 concurrent touches in real time with touch size reporting
  • Communication via a serial interface (I2C or SPI)
  • High voltage option to increase the signal to noise ratio (SNR)
  • Adaptive Sensing (Self and Mutual cap)
  • Supports thick glove (5mm) touch
  • Support thick lenses (up to 3mm plastic)
  • Superior moisture performance
  • Package: LQFP144
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

In Production
The ATMXT1189T-A Automotive touchscreen controller is aimed at display sizes up to 13” used in center stacks, navigation systems or rear seat entertainment systems. This brand new family of automotive touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the Automotive market. It enables dynamic touch classification, a feature that automatically and intelligently switches between self- and mutual-capacitance sensing to provide users a seamless transition between a finger touch and glove touch. Adaptive Sensing is also resistant to water and moisture and ensures superior touch performance even in these harsh conditions.

Please contact your local Microchip sales office for pricing information and to place an order.

Additional Features

Fully automotive-qualified (Grade 2), operating within the temperature range of -40 to +105 deg C

Supports up to 16 concurrent touches in real time with touch size reporting

Communication via a serial interface (I2C or SPI)

High voltage option to increase the signal to noise ratio (SNR)

Adaptive Sensing (Self and Mutual cap)

Supports thick glove (5mm) touch

Support thick lenses (up to 3mm plastic)

Superior moisture performance

Package: LQFP144

Parametrics
Name
Value
Interface Type
I2C and SPI
Max Screen Size (Inch)
13
Touch Response
>250 Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 105
Number of Touches
16
Max Nodes Supported
1188

Documents

Jump to:

Brochures

Product Brief

Software

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
ATEVK-MXT1189TAT-A
ATEVK-MXT1189TAT-A ( ATEVK-MXT1189TAT-A )

This kit (ATEVK-MXT1189TAT-A) is the I2C based version for the evaluation and development of Microchip maXTouch applications using the ATMXT1189TAT Touchscreen Sensor IC.

Learn More
Add To Cart
Evaluation Kit with SPI & I2C HSBB
Evaluation Kit with SPI & I2C HSBB ( ATEVK-MXT1189TAT-C )

This kit (ATEVK-MXT1189TAT-C) is the SPI based version for the evaluation and development of Microchip maXTouch applications using the ATMXT1189TAT Touchscreen Sensor IC.

Learn More
Add To Cart
ATMXT1189TAT-I2C-PCB
ATMXT1189TAT-I2C-PCB ( ATMXT1189TAT-I2C-PCB )

This PCB (ATMXT1189TAT-I2C-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT1189TAT Touchscreen Sensor IC.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT1189T-AB
1.392800
7.833333
144
LQFP
20x20x1.4mm
Matte Tin
e3
ATMXT1189T-ABR
1.392800
2.285714
144
LQFP
20x20x1.4mm
Matte Tin
e3
ATMXT1189T-AT
1.392800
7.833333
144
LQFP
20x20x1.4mm
Matte Tin
e3
ATMXT1189T-ATR
1.392800
2.285714
144
LQFP
20x20x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
