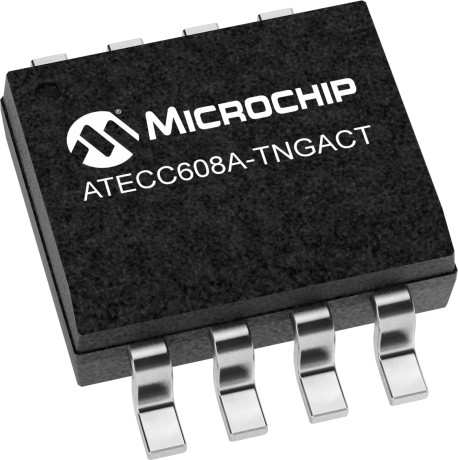

ATECC608A-TNGACT

Pre-provisioned for Actility LoRa join server

Status: In Production

Features:

  • SHA-256 & HMAC hash including off-chip context save/restore
  • AES-128: encrypt/decrypt, galois field multiply for GCM
  • Turnkey PRF/HKDF calculation for LoRaWAN
  • Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip ATECC608A-TNGACT is a Trust&GO secure element part of the Trust Platform for the CryptoAuthentication family. The device comes pre-configured and pre-provisioned with the authentication keys of Actility join servers. The configuration and credentials are locked in the device and cannot be changed unless a re-keying is requested to the Actility join server to move the device to a different join server than Actility. The Actility join server is agnostic of the network server or application server either it's a public or private network. This secure element  integrates an AES128 hardware accelerator and hardware-based cryptographic key storage as well as cryptographic countermeasures which reduces potential backdoors linked to software weaknesses on the symmetric LoRaWAN authentication keys. Other important feature integrated in the ATECC608A-TNGACT are the ECDH (Elliptic Curve Diffie Hellman) security protocol an ultra-secure method to provide key agreement for encryption/decryption, along with ECDSA (Elliptic Curve Digital Signature Algorithm) sign-verify authentication for the Internet of Things (IoT) market including home automation, industrial networking, medical, or retails.

The device is agnostic of any microprocessor (MPU) or microcontroller (MCU) and compatible with virtually any MCUs or MPUs thanks to the CryptoAuthLib library. As with all CryptoAuthentication devices, the ATECC608A-TNGACT delivers extremely low-power consumption, requires only a single GPIO over a wide voltage range, and has a tiny form factor making it ideal for a variety of applications that require longer battery life and flexible form factors.

Additional Features
  • Cryptographic co-processor with secure hardware-based key storage
  • Hardware support for symmetric algorithms
  • SHA-256 & HMAC hash including off-chip context save/restore
  • AES-128: encrypt/decrypt, galois field multiply for GCM
    • Networking key management support
  • Turnkey PRF/HKDF calculation for LoRaWAN
    • Ephemeral key generation and key agreement in SRAM – Small message encryption with keys entirely protected
  • Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
    • Two high-endurance monotonic counters
    • Guaranteed unique 72-bit serial number
    • 1MHz Standard I2C interface
    • 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
    • <150nA Sleep current
    • 8-pad UDFN, 8-lead SOIC packages
Parametrics
Name
Value
Operating Current Typical (mA)
1
Operating Voltage (Vcc)
2 - 5.5
Density
10.5Kb
Temp# Range (deg C)
-40 - 85
Interface Type
Single-wire; I2C
Zones
16
Key Size
256
Standby Typical (uA)
0.04
Algorithm Type
ECC P256 (ECDH and ECDSA), SHA256, AES-GCM

Documents

Jump to:

Data Sheets

Supporting Collateral

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Crypto Kit SOIC Socketed XPRO Development Board
Crypto Kit SOIC Socketed XPRO Development Board ( AT88CKSCKTSOIC-XPRO )

The AT88CKSCKTSOIC-XPRO is a Microchip XPRO extension kit for Microchip CryptoAuthentication™ devices in an 8-pin SOIC Package. The board attaches to any Microchip Micro-controller board that supports the XPRO interface.  The boards operate with the following Microchip Devices

  • ATECC108A/508A/608A - Ecliptic Curve Security devices with I2C or Single Wire Interface
...

Learn More
Add To Cart
Crypto Kit UDFN Socketed XPRO Development Board
Crypto Kit UDFN Socketed XPRO Development Board ( AT88CKSCKTUDFN-XPRO )

The AT88CKSCKTUDFN-XPRO is a Microchip XPRO extension kit for Microchip CryptoAuthentication™ devices in an 8-pin UDFN package. The board attaches to any Microchip Micro-controller board that supports the XPRO interface. The boards operate with the following Microchip Devices

ATECC108A/508A/608A - Ecliptic Curve Security devices with I2C or Single Wire Interface ...

Learn More
Add To Cart
SAM R34 Xplained Pro Evaluation Kit
SAM R34 Xplained Pro Evaluation Kit ( DM320111 )

The SAM R34 Xplained Pro is a hardware platform designed to evaluate the SAM R34 family of LoRa®  devices.

This FCC, ISED

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATECC608A-TNGACTU-G
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
ATECC608A-TNGACTU-B
0.009600
0.300000
8
UDFN
2x3x0.6mm
NiPdAu
e4
ATECC608A-TNGACTU-C
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
ATECC608A-TNGACTS-B
0.075000
0.163265
8
SOIC
3.90mm(.150in)
NiPdAu
e4
ATECC608A-TNGACTS-C
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
ATECC608A-TNGACTS-G
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
