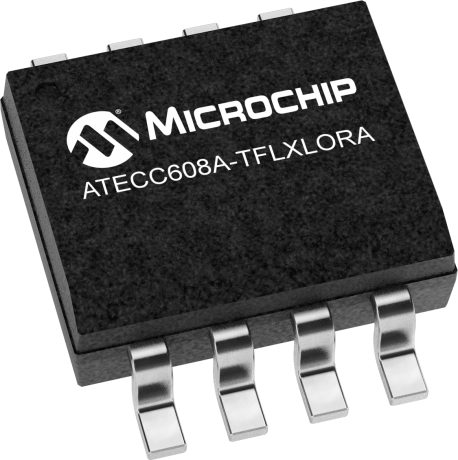

product primary image

ATECC608A-TFLXLORA

Pre-configured for LoRa join servers

Status: In Production

Features:

  • Cryptographic co-processor with secure hardware-based key storage
  • SHA-256 & HMAC hash including off-chip context save/restore
  • AES-128: encrypt/decrypt, galois field multiply for GCM
  • Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
  • Pre-configured to accommodate to any LoRaWAN join servers
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip ATECC608A-TFLXLORA is a TrustFLEX secure element part of the Trust Platform for the CryptoAuthentication family. The device comes pre-configured to accomodate LoRa authentication with any join servers in addition to leverage some of the most common use cases in the market. The configuration is locked in the device and cannot be changed. A re-keying is requested to the join server to move the device to a different join server. The join server is agnostic of the network server or application server either it's a public or private network. This secure element  integrates an AES128 hardware accelerator and hardware-based cryptographic key storage as well as cryptographic countermeasures which reduces potential backdoors linked to software weaknesses on the symmetric LoRaWAN authentication keys. Other important feature integrated in the ATECC608A-TFLXLORA are the ECDH (Elliptic Curve Diffie Hellman) security protocol an ultra-secure method to provide key agreement for encryption/decryption, along with ECDSA (Elliptic Curve Digital Signature Algorithm) sign-verify authentication for the Internet of Things (IoT) market including home automation, industrial networking, medical, or retails.

The device is agnostic of any microprocessor (MPU) or microcontroller (MCU) and compatible with virtually any MCUs or MPUs thanks to the CryptoAuthLib library. As with all CryptoAuthentication devices, the ATECC608A-TFLXLORA delivers extremely low-power consumption, requires only a single GPIO over a wide voltage range, and has a tiny form factor making it ideal for a variety of applications that require longer battery life and flexible form factors.

Additional Features
  • Cryptographic co-processor with secure hardware-based key storage
    • Protected storage for up to 16 Keys, certificates or data
    • Hardware support for symmetric algorithms
  • SHA-256 & HMAC hash including off-chip context save/restore
  • AES-128: encrypt/decrypt, galois field multiply for GCM
    • Networking key management support
    • Turnkey PRF/HKDF calculation for TLS 1.2 & 1.3 & LoRaWAN
    • Ephemeral key generation and key agreement in SRAM – Small message encryption with keys entirely protected
    • Secure boot support
    • Full ECDSA code signature validation, optional stored digest/signature – optional communication key disablement prior to secure boot
    • Encryption/Authentication for messages to prevent on-board attacks
  • Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
    • Two high-endurance monotonic counters
    • Guaranteed unique 72-bit serial number
    • Two interface options available
    • High-speed single pin interface with One GPIO pin
    • 1MHz Standard I2C interface
    • 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
    • 8-pad UDFN, 8-lead SOIC, and 3-lead CONTACT packages
  • Pre-configured to accommodate to any LoRaWAN join servers
    • <150nA Sleep current
Parametrics
Name
Value
Operating Current Typical (mA)
1
Operating Voltage (Vcc)
2 - 5.5
Density
10.5Kb
Temp# Range (deg C)
-40 - 85
Interface Type
Single-wire; I2C
Zones
16
Key Size
256
Standby Typical (uA)
0.04
Algorithm Type
ECC P256 (ECDH and ECDSA), SHA256, AES-GCM

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Crypto Kit SOIC Socketed XPRO Development Board
Crypto Kit SOIC Socketed XPRO Development Board ( AT88CKSCKTSOIC-XPRO )

The AT88CKSCKTSOIC-XPRO is a Microchip XPRO extension kit for Microchip CryptoAuthentication™ devices in an 8-pin SOIC Package. The board attaches to any Microchip Micro-controller board that supports the XPRO interface.  The boards operate with the following Microchip Devices

  • ATECC108A/508A/608A - Ecliptic Curve Security devices with I2C or Single Wire Interface
...

Learn More
Add To Cart
Crypto Kit UDFN Socketed XPRO Development Board
Crypto Kit UDFN Socketed XPRO Development Board ( AT88CKSCKTUDFN-XPRO )

The AT88CKSCKTUDFN-XPRO is a Microchip XPRO extension kit for Microchip CryptoAuthentication™ devices in an 8-pin UDFN package. The board attaches to any Microchip Micro-controller board that supports the XPRO interface. The boards operate with the following Microchip Devices

ATECC108A/508A/608A - Ecliptic Curve Security devices with I2C or Single Wire Interface ...

Learn More
Add To Cart
SAM R34 Xplained Pro Evaluation Kit
SAM R34 Xplained Pro Evaluation Kit ( DM320111 )

The SAM R34 Xplained Pro is a hardware platform designed to evaluate the SAM R34 family of LoRa®  devices.

This FCC, ISED

...

Learn More
Add To Cart
