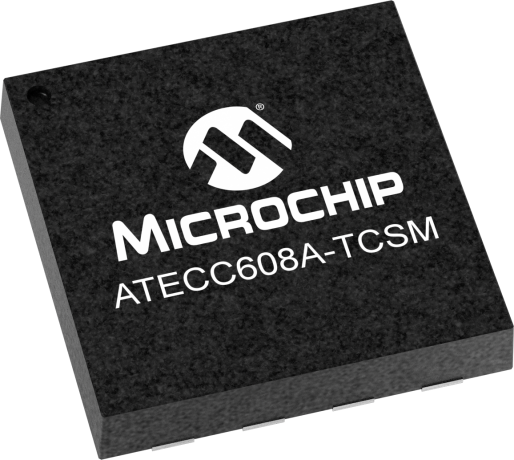

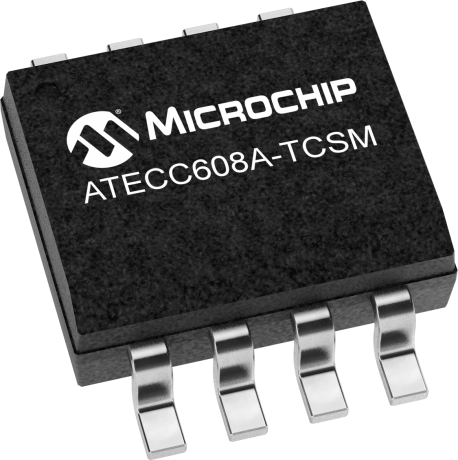

ATECC608A-TCSM

Customizable secure element

Status: In Production

Features:

  • Hardware support for asymmetric sign, verify, key agreement – ECDSA: FIPS186-3 Elliptic Curve Digital Signature
  • ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman
  • NIST standard P256 elliptic curve support
  • SHA-256 & HMAC hash including off-chip context save/restore
  • AES-128: encrypt/decrypt, galois field multiply for GCM
  • Turnkey PRF/HKDF calculation for TLS 1.2 & 1.3
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip ATECC608A-TCSM is a secure element part of the Trust Platform for the CryptoAuthentication family. The device integrates ECDH (Elliptic Curve Diffie Hellman) security protocol an ultra-secure method to provide key agreement for encryption/decryption, along with ECDSA (Elliptic Curve Digital Signature Algorithm) sign-verify authentication. In addition, the ATECC608A offer an integrated AES hardware accelerator strengthening hardware based security for LoRaWAN applications and enable secure boot capabilities for very small microcontrollers.

The ATECC608A-TCSM offers advanced Elliptic Curve Cryptography (ECC) capabilities. With ECDH and ECDSA being built right in, this device is ideal for the rapidly growing IoT market by easily supplying the full range of security such as confidentiality, data integrity, and authentication to systems with MCU or MPUs running encryption/decryption algorithms. Similar to all Microchip CryptoAuthentication products, the new ATECC608A employs a high quality Random Number Generator, ultra-secure hardware-based cryptographic key storage and cryptographic countermeasures which eliminate potential backdoors linked to software weaknesses.

The device is agnostic of any microprocessor (MPU) or microcontroller (MCU) and compatible with Microchip AVR/ARM MCUs or MPUs. As with all CryptoAuthentication devices, the ATECCC608A-TCSM delivers extremely low-power consumption, requires only a single GPIO over a wide voltage range, and has a tiny form factor making it ideal for a variety of applications that require longer battery life and flexible form factors.

To start prototyping, please purchase a blank ATECC608A with the desired package and start coding using CryptoAuthLib Library

Additional Features
  • Cryptographic co-processor with secure hardware-based key storage
  • Protected storage for up to 16 Keys, certificates or data
  • Hardware support for asymmetric sign, verify, key agreement – ECDSA: FIPS186-3 Elliptic Curve Digital Signature
  • ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman
  • NIST standard P256 elliptic curve support
    • Hardware support for symmetric algorithms
  • SHA-256 & HMAC hash including off-chip context save/restore
  • AES-128: encrypt/decrypt, galois field multiply for GCM
    • Networking key management support
  • Turnkey PRF/HKDF calculation for TLS 1.2 & 1.3
    • Ephemeral key generation and key agreement in SRAM – Small message encryption with keys entirely protected
    • Secure boot support
  • Full ECDSA code signature validation, optional stored digest/signature – optional communication key disablement prior to secure boot
    • Encryption/Authentication for messages to prevent on-board attacks
    • Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
    • Two high-endurance monotonic counters
    • Guaranteed unique 72-bit serial number
    • Two interface options available
    • High-speed single pin interface with One GPIO pin
    • 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
    • 1MHz Standard I2C interface
    • 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
    • <150nA Sleep current
    • 8-pad UDFN, 8-lead SOIC, and 3-lead CONTACT packages
Parametrics
Name
Value
Operating Current Typical (mA)
1
Operating Voltage (Vcc)
2 - 5.5
Density
10.5Kb
Temp# Range (deg C)
-40 - 85
Interface Type
Single-wire; I2C
Zones
16
Key Size
256
Standby Typical (uA)
0.04
Algorithm Type
ECC P256 (ECDH and ECDSA), SHA256, AES-GCM

Documents

Jump to:

Data Sheets

Application Notes

Download All

Software Library

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
Crypto Kit SOIC Socketed XPRO Development Board
Crypto Kit SOIC Socketed XPRO Development Board ( AT88CKSCKTSOIC-XPRO )

The AT88CKSCKTSOIC-XPRO is a Microchip XPRO extension kit for Microchip CryptoAuthentication™ devices in an 8-pin SOIC Package. The board attaches to any Microchip Micro-controller board that supports the XPRO interface.  The boards operate with the following Microchip Devices

  • ATECC108A/508A/608A - Ecliptic Curve Security devices with I2C or Single Wire Interface
...

Learn More
Add To Cart
Crypto Kit UDFN Socketed XPRO Development Board
Crypto Kit UDFN Socketed XPRO Development Board ( AT88CKSCKTUDFN-XPRO )

The AT88CKSCKTUDFN-XPRO is a Microchip XPRO extension kit for Microchip CryptoAuthentication™ devices in an 8-pin UDFN package. The board attaches to any Microchip Micro-controller board that supports the XPRO interface. The boards operate with the following Microchip Devices

ATECC108A/508A/608A - Ecliptic Curve Security devices with I2C or Single Wire Interface ...

Learn More
Add To Cart
Crypto Authentication SOIC XPRO Starter Kit
Crypto Authentication SOIC XPRO Starter Kit ( DM320109 )

The CryptoAuthentication™ SOIC Xplained Pro Starter (CryptoAuth-XSTK) kit consists of a SAMD21-XPRO and an AT88CKSCKTSOIC-XPRO socket board along with Crypto Authentication sample devices.   The board works with Microchip's Crypto Evaluation Studio (ACES) out of the box and can be used for evaluation and development wih CryptoAuthentication Devices.  The kit supports all Crypto

...

Learn More
Add To Cart
CryptoAuth Trust Platform
CryptoAuth Trust Platform ( DM320118 )

The CryptoAuth Trust Platform is the newest addition to the CryptoAuthentication evaluation kits. This kit is used for exploring and implementing solutions for the IoT space with a pre-provisioned ATECC608A Trust&GO, pre-configured TrustFLEX and fully customizable

...

Learn More
Add To Cart
ATECC608A TRUST
ATECC608A TRUST ( DT100104 )

The ATECC608A trust is an add-on board for the CryptoAuth Trust Platform and other Microchip development platforms that contain a mikroBUS header. The board supports a mikroElectronica header that connects to any board that has a mikroBUS connection. This board provides an alternative to the sample units that require a socket board for doing the initial development and testing.

The...

Learn More
Add To Cart
Software Libraries
CryptoAuthLib

CryptoAuthLib is a software support library for the ATSHA204A, ATECC108A, ATECC508A and ATECC608A CryptoAuthentication devices written in C. It is a portable, extensible, powerful, and easy-to-use

...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATECC608A-TCSMU
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
ATECC608A-TCSMS
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
