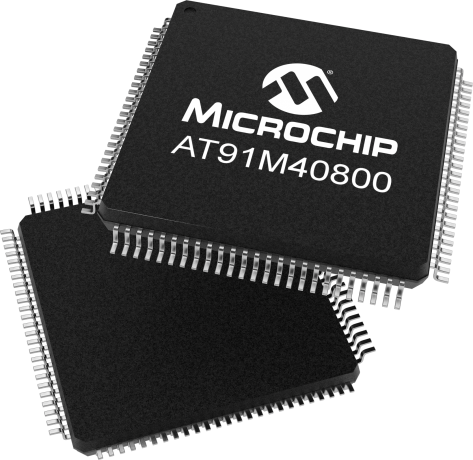

product primary image

AT91M40800

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Parametrics
Name
Value
Part Family
ARM7TDMI
Max CPU Speed MHz
40
SRAM (KB)
8
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
0 to 0
Direct Memory Access Channels
4
Input Capture
3
Max 16-bit Digital Timers
3
Parallel Port
EBI
Max I/O Pins
32
Pincount
100
External Memory Bus Interface
Yes

Documents

Jump to:

Application Notes

Download All

MISC

12/11/2016
5B
12/11/2016
5B
12/11/2016
63595KB

User Guides

12/11/2016
1628KB
12/10/2016
1898KB

Development Environment

  • Integrated Development Environments
  • Demo & Evaluation Boards
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

The AT91SAM-ICE catalog part number (CPN) will be moving to End of

...

Learn More
Demo & Evaluation Boards
SAM9260 Evaluation Kit
SAM9260 Evaluation Kit ( AT91SAM9260-EK )
(Not Recommended for new design)

Learn More
SAM9263-EK
SAM9263-EK ( AT91SAM9263-EK )

This kit lets designers quickly evaluate and develop code for applications running on an SAM9263 microcontroller.

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
100
0
8,192
$4.25

144
0
8,192
$6.45

176
0
8,192
$7.86

100
0
262,144


64
32
8,192


100
128
32,768
$5.34

100
256
65,536
$6.59

100
512
131,072
$9.59

100
128
32,768



RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT91M40800-33AU
0.580400
6.666667
100
LQFP
14x14x1.4mm
Matte Tin
e3
AT91M40800-33AU-999
0.580400
1.600000
100
LQFP
14x14x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
