The Microchip AT27LV040A is a high-performance, low-power, low-voltage, 4-megabit One Time Programmable EPROM organized as 512-Kbit x 8. Requiring a single power supply in the range of 3.0V to 3.6V in normal read mode operation any byte can be accessed in less than 90 ns. With typical power consumption of only 18 mW at 5 MHz and VCC = 3.3V, the AT27LV040A consumes less than one-half the power of a standard, 5V EPROM. Standby mode supply current is typically less than 1 μA at 3.3V making it ideal for fast, portable systems using battery power.

• 4-Mbit (512-Kbit x 8)

• Dual voltage range operation

• Low voltage, 3.0V to 3.6V, or
• Standard power supply range, 5V +/-10%
• Low-power CMOS operation
• 20 μA max standby (less than 1 μA, typical) for VCC = 3.6V
• 36 mW max active at 5 MHz for VCC = 3.6V
• Parallel Interface
• 90 ns access time
• High-reliability CMOS technology
• 2,000V ESD protection
• 200 mA latchup immunity
• Rapid programming algorithm – 100 μs/byte (typical)
• CMOS and TTL compatible inputs and outputs
• JEDEC standard for LVTTL
• Integrated product identification code
• Industrial Temperature Range: -40°C to 85°C
• Available in Green (Pb/Halide-free) Packaging Only

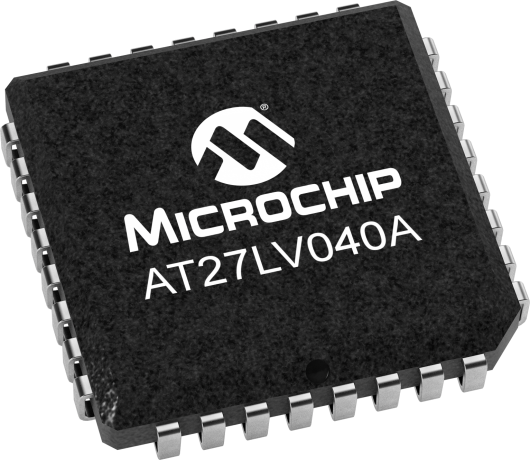

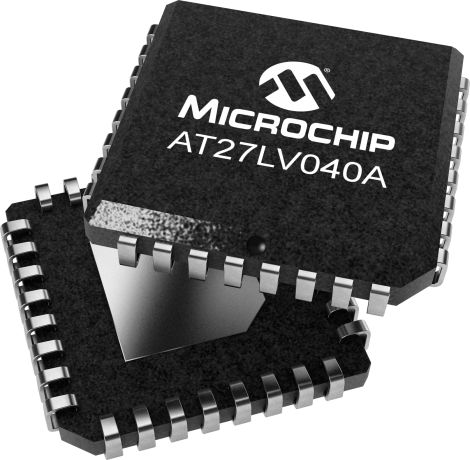

32-lead, Plastic J-leaded Chip Carrier (PLCC)
