Building Block Solutions - Embedded Systems Reference Designs
Key Features

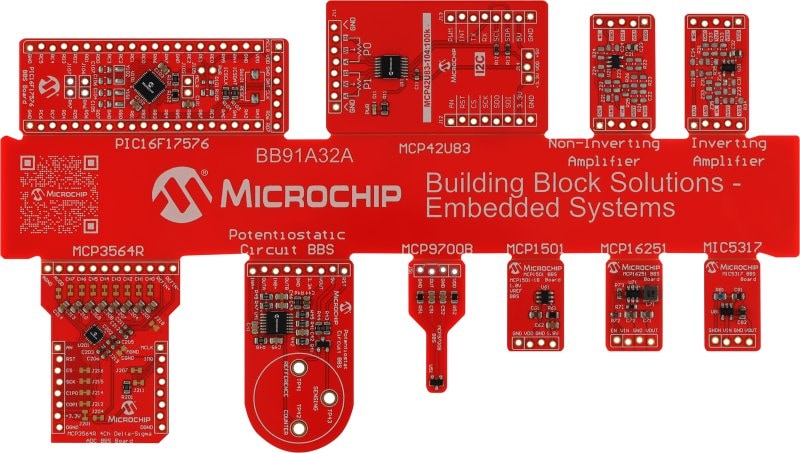

The BB91A32A Building Block Solutions - Embedded Systems kit provides a modular platform that allows users to integrate individual boards into existing systems or configure multiple boards to support diverse application requirements. This approach supports rapid prototyping, system expansion and customized embedded designs.
The kit includes several analog and mixed-signal devices configured on separate BBS boards for easy evaluation and implementation in system-level applications.
BBS Boards Included:
- PIC16F17576 microcontroller
- MCP3564R: 8-channel, low-noise 24-bit delta-sigma Analog-to-Digital Converter (ADC)
- MCP42U83: digital potentiometer
- Non-inverting amplifier
- Inverting amplifier
- Potentiostatic circuit
- MCP16251: DC-DC converter
- MCP9700B: Low-power, linear active thermistor
- MIC5317: low-dropout regulator
- MCP1501: 1.8V high-precision buffered voltage reference
