Transform Medical Respiratory Care
Motor control failures in respiratory devices can mean the difference between life and death. In the respiratory industry, motor control of fans and blowers remains a dominant source of technical issues, causing significant project delays and reliability concerns. These critical applications demand motor control products that offer low power consumption, precise high- and low-speed control and unwavering reliability—whether deployed in hospital ventilators or home medical devices.
Our Brushless DC (BLDC) motor control, graphics display, power management and signal processing solutions address these challenges head-on, delivering the precision and reliability required for critical respiratory equipment, from hospital-grade ventilators to portable home devices.
Experience sophisticated sensorless Field-Oriented Control (FOC) technology that enables rapid motor response in milliseconds for patient comfort and safety.

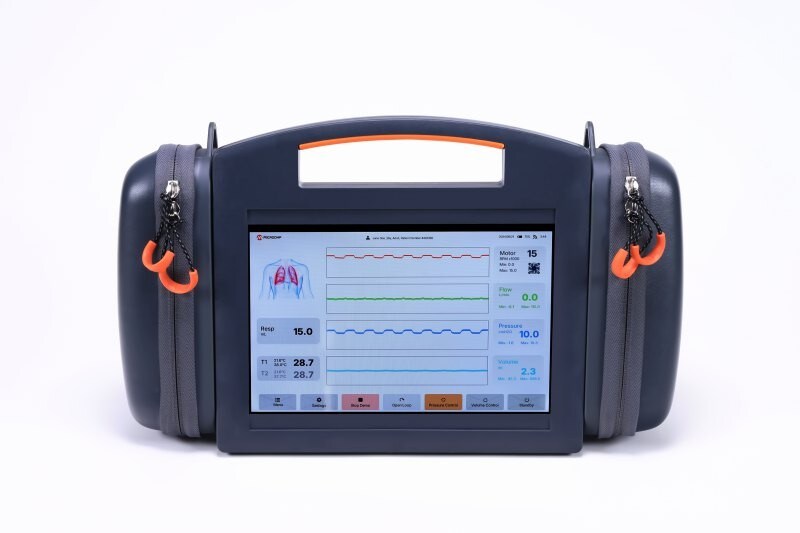

Demo Overview
Our Respiratory Equipment Demo provides core functions and components of the BLDC motor drive solution and closed-loop control mechanisms for CPAP and ventilator applications.
The demo showcases different modes to put air/gas into a patient based on the following fundamental principles and parameters:
- Pressure: Inflate user to a certain pressure
- Volume: Put a certain amount of volume into user
- Respiratory Rate: Number of breaths per minute
- Flow Rate: Motor RPM speed
- Time: Inhalation and exhalation time length
- Ramp Rate: Get the pressure/volume slowly or quickly
Three Powerful Demo Modes
Mode 1: Open-Loop Control
Demonstrates basic motor control with user-adjustable parameters and is great for CPAP settings
Mode 2: Pressure Control
Closed-loop pressure regulation for ventilator applications, maintaining precise airway pressure
Mode 3: Volume Control
Closed-loop volume delivery for anesthesia machines, which enables accurate tidal volumes
Reference Designs

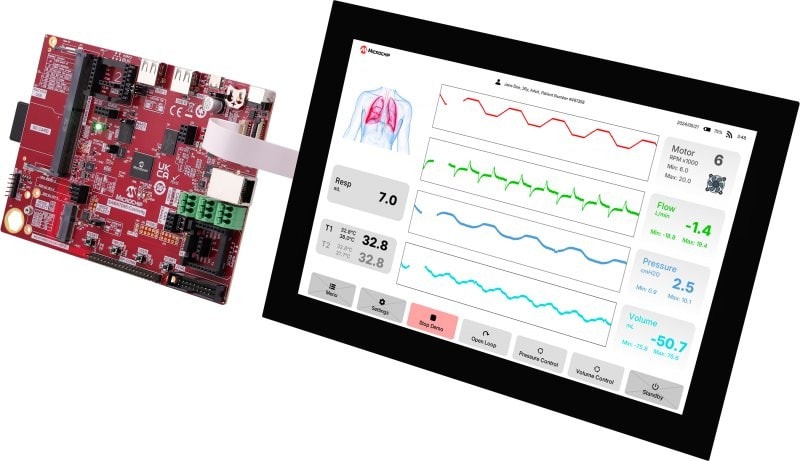

High-Resolution-Display With HMI for Ventilator CPAP Machine Demonstration Application
BLDC Motor Control With Graphical User Interface for CPAP and BiPAP Respiratory Equipment Demonstration Application
Applicable Medical Devices
CPAP/BiPAP
Pressure-based control adjusts to breathing patterns for sleep apnea therapy

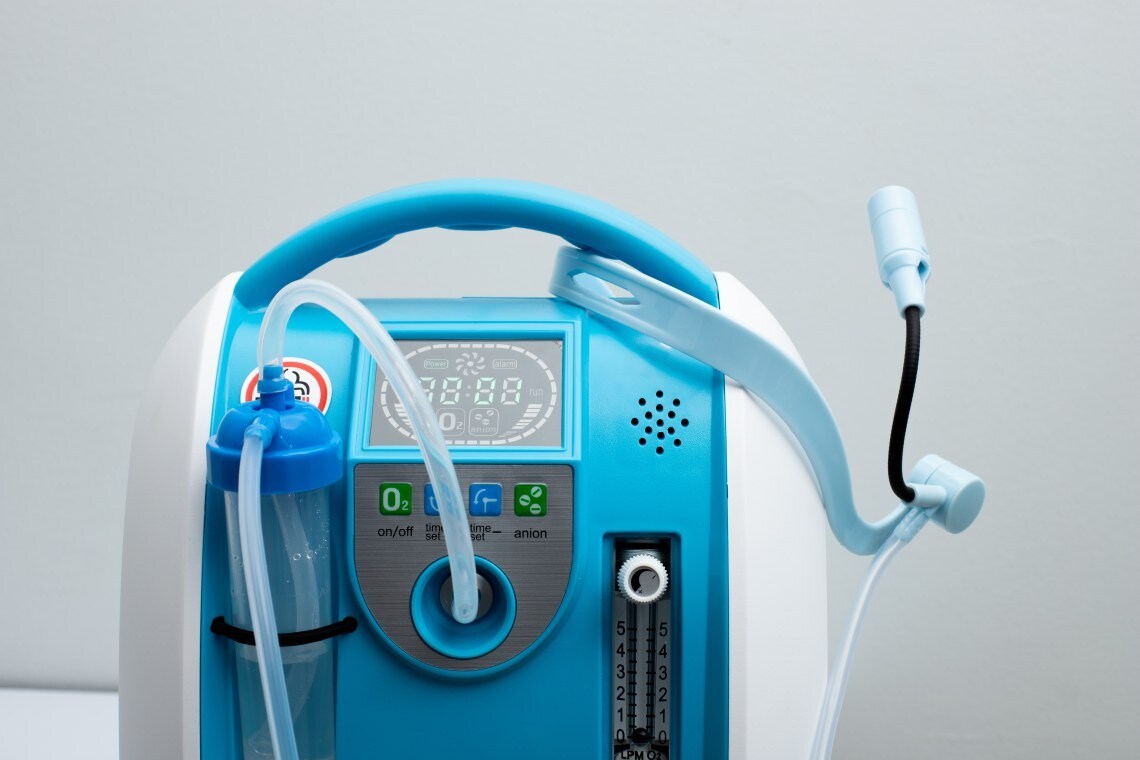

Portable Oxygen Concentrators
Compact motor control for mobile oxygen therapy devices

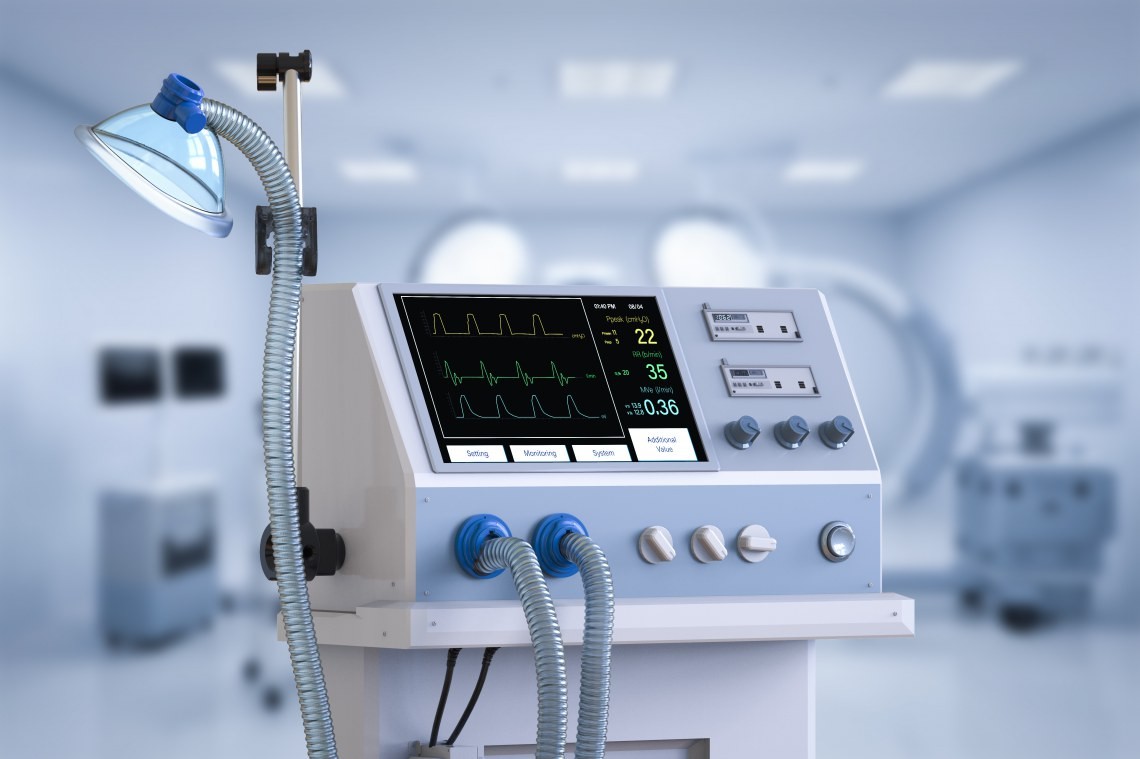

Hospital Ventilators
High-flow gas generation with precise flow and pressure control
Anesthesia Machines
Accurate gas mixture delivery with proportional valve control
Advanced Control Parameters
- Pressure regulation (inflate to target pressure)
- Volume control (precise volume delivery)
- Respiratory rate (breaths per minute)
- Flow rate (motor RPM speed)
- Time control (inhalation/exhalation timing)
- Ramp rate (gradual or rapid pressure/volume changes)

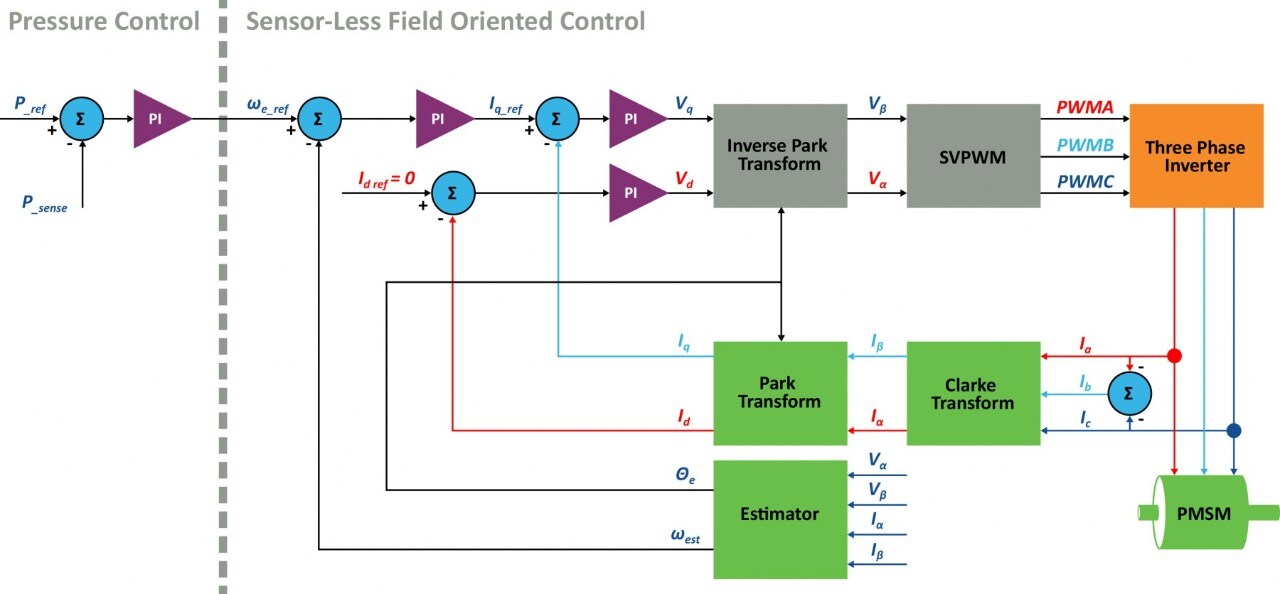

How it Works
Products We Offer

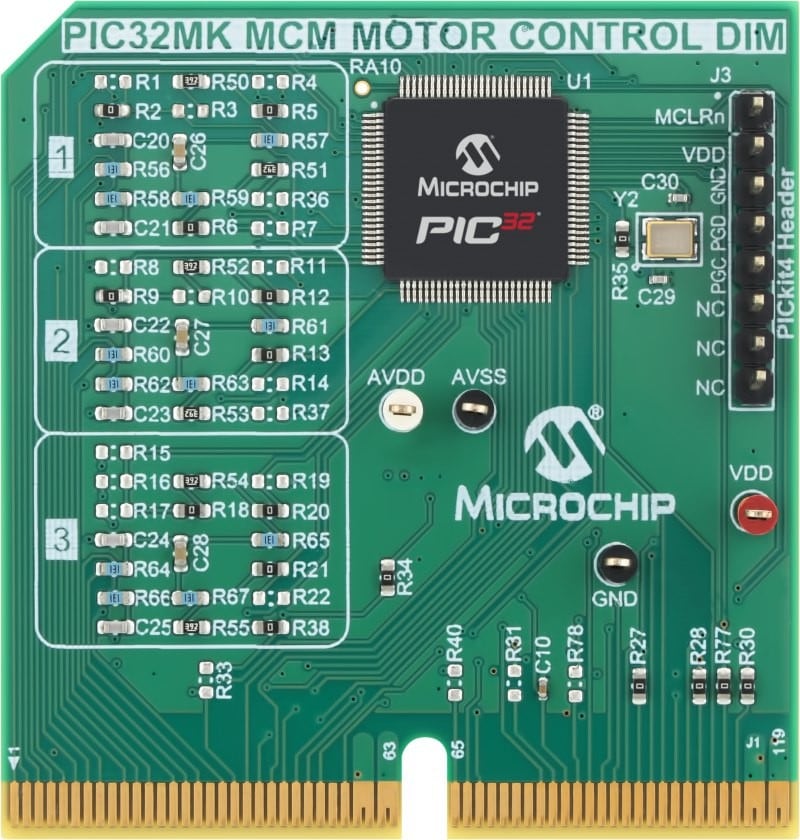

Microcontrollers
Signal Conditioning and Power Management
Wireless
Other Products
Medical Video Channel
Medical Video Channel
Connected, Secure, and Wearable Electrocardiogram (ECG) Demonstration Video
Connected, Secure, and Wearable Electrocardiogram (ECG) Demonstration Video
As medical remote patient monitoring becomes more important, the need for wearable ECG capability has become critical. Microchip’s Connected, Wearable ECG Demonstration Board can be used in the design of advanced fitness tracking devices and can also be designed into medical wearable remote patient monitoring and diagnostic systems.
Wearable Heart Rate Monitor Demo
Wearable Heart Rate Monitor Demo
Ultra Low-Power (ULP) Connected, Wearable Activity Monitor Demo
Ultra Low-Power (ULP) Connected, Wearable Activity Monitor Demo
High-end wearable activity trackers can take step count, temperature, light and other movement and environment measurements. They are not only being used for fitness applications but are becoming an essential part of medical device design. Microchip’s Ultra Low-Power or ULP Connected, Wearable Activity Monitor Demonstration Board can be used as the starting point for the design of medical home monitoring, patient tracking and drug delivery compliance devices.
For more information, please visit:
https://www.microchip.com/en-us/solutions/medical
Microchip's Wearable Bluetooth® Low Energy Pedometer Demonstration Board
Microchip’s wearable Bluetooth Low Energy pedometer reference design demo helps designers develop a low-cost, low-power, wearable pedometer with both an on-board LED display as well as Bluetooth Low Energy capability to connect to smartphones and tablets. This demo board can be used as a basic wearable step count activity tracker design, but it can also be used as a development platform for the design of more advanced activity tracker functions such as distance traveled or calories burned. Also, additional biometric measurement capability can be added using other Microchip medical reference demo designs.
Microchip’s Connected Thermometer Demonstration
Microchip’s Connected Thermometer Demonstration
Microchip's Connected Thermometer Board demonstrates the implementation of a Bluetooth®-connected digital thermometer using Microchip's PIC16F1519 MCU and RN42 Bluetooth Module. The PIC16F1519 MCU is an eXtreme Low Power (XLP), cost-effective 8-bit microcontroller with an integrated capacitive touch sensing module. Connectivity is demonstrated on this board by the use of Microchip's fully qualified RN42 Bluetooth2.1 + EDR Module. This demo design can also be easily implemented using any of Microchip's Bluetooth Low Energy or Wi-Fi® connectivity modules.
Microchip’s Connected Weight Scale Demonstration
Microchip’s Connected Weight Scale Demonstration
Microchip’s Connected Weight Scale Demonstration Board shows the implementation of a Bluetooth®-connected weight scale using Microchip’s PIC16F1783 MCU and the RN42 Bluetooth module. The PIC16F1783 MCU is an eXtreme Low Power (XLP), cost-effective 8-bit microcontroller with an integrated capacitive touch sensing module, 12-bit ADC and operational amplifiers. Connectivity is demonstrated on this board by the use of Microchip’s fully qualified RN42 Bluetooth 2.1 + EDR module. This demo design can also be easily implemented using any of Microchip’s Bluetooth Low Energy or Wi-Fi® connectivity modules.
Microchip's Pulse Oximeter Demonstration Board
Microchip's Pulse Oximeter Demonstration Board
Microchip’s pulse oximeter reference design demo board helps designers develop a low-cost, low power handheld or wearable pulse oximeter with user interface which is capable of measuring both heart rate and blood oxygen level. It can be used to start development of a hospital or clinical pulse oximeter design, but it can also be used as a starting point for the development of a wearable activity tracker design that can measure heart rate and blood oxygen level.
Health & Fitness Solutions
Health & Fitness Solutions
See how Microchip's products can enable the development of innovative medical and fitness solutions.
More information: https://www.microchip.com/en-us/solutions/medical
Medical Product Solutions from MASTERs 2016
Medical Product Solutions from MASTERs 2016
Get an overview of some of Microchip's solutions for designing the latest medical devices.
More information: https://www.microchip.com/en-us/solutions/medical
Intelligent Analog
Medical Respiratory Devices
Microchip Intelligent Analog PIC MCUs offer on chip analog building blocks with flexible connections to optimize integration, simplify design, and minimize cost.
PIC24F "GC" Intelligent Analog Integration
Connected Functional Safety Syringe Pump/Auto Injector
Connected Functional Safety Syringe Pump/Auto Injector
Whether healthcare is administered in the hospital, clinic or in the home; safe automated syringe pumps and auto injectors have become a critical part of drug delivery. Microchip's Functional Safety Syringe Pump/Auto Injector demo is a great example of the implementation of a medical, safety-critical application. This demonstration highlights the use of Microchip's Class B Functional Safety Software Libraries and our IEC-62304 compliant Functional Safety Compilers. The demo itself not only shows how to design the motor control and sensor interface for an automatic syringe pump or auto injector device, it also demonstrates how to implement connected, patient compliance functions in a drug delivery system.
