Three-Phase Brushless Motor and Gate Drivers for Motor Control Applications
Functional-Safety Compliant, Three-Phase, BLDC Motor Gate Driver SBCs

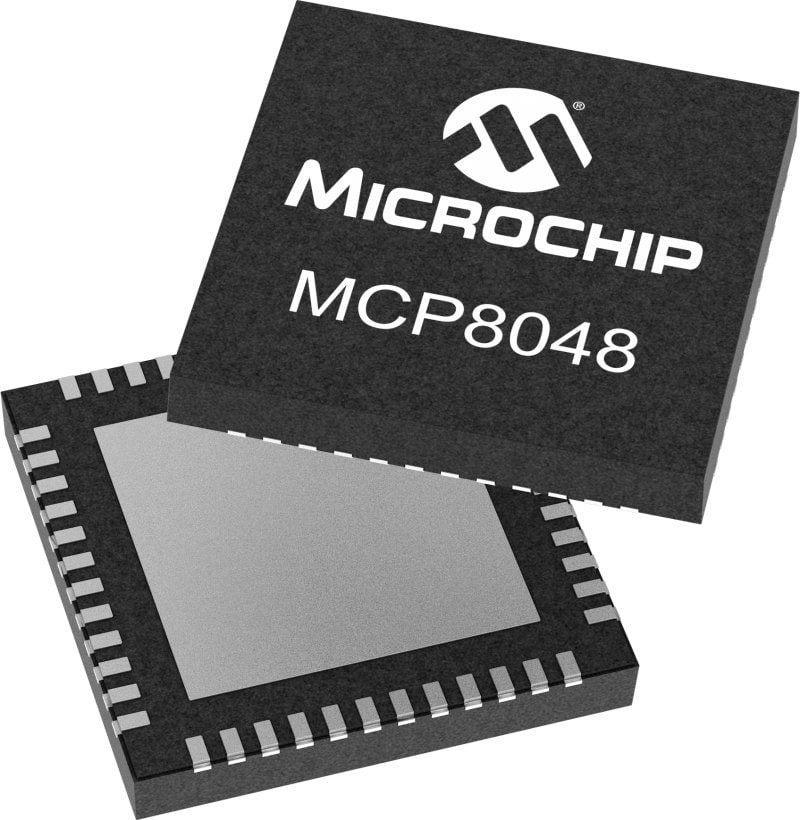

MCP8048
- Supply voltage range: 3V to 42V
- Integrated LIN transceiver
- Independent input control for high-side and low-side N-type Metal-Oxide Semiconductor (NMOS) MOSFET gate drives
- SPI communication
- Temperature range (TJ): −40°C to +150°C (automotive)
- Automotive recommended
- ASIL B, SIL 2 functional safety compliant

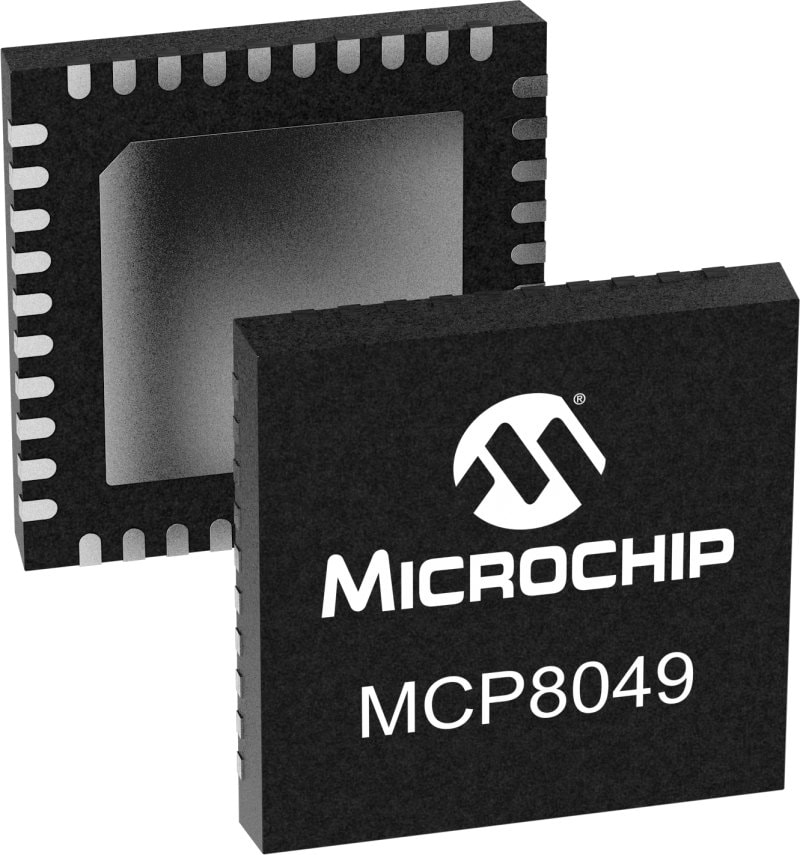

MCP8049
- Supply voltage range: 3V to 42V
- Independent input control for high-side and low-side NMOS MOSFET gate drives
- SPI communication
- Temperature range (TJ): −40°C to +150°C (automotive)
- Automotive recommended
- ASIL B, SIL 2 functional safety compliant
Featured Three-Phase Motor Drivers
ATA6847x
- Supply voltage range: 3V to 42V
- Built-in safety features
- Temperature range (TJ): −40°C to +125°C, −40°C to +150°C (automotive)
- Integrated LIN transceiver (ATA6847L, ATA6847P)
- TxD Dominant Timeout Disable (ATA6847P)
- Automotive recommended
- Functional safety ready
MCP802x
- Supply voltage range: 4V to 40V
- Built-in safety features
- Temperature range (TJ): −40°C to +165°C
- Three independent operational amplifiers for general use
MCP8027
- Supply voltage range: 6V to 28V
- Built-in safety features
- Adjustable-output buck regulator (750 mW)
- 500 mA peak output current
- Temperature range (TJ): −40°C to +150°C
MIC4607A
- Supply voltage range: 5.5V to 85V
- Gate drive supply voltage up to 16V
- Enhanced circuit protection features
- Automotive recommended
