SAM9 Arm926EJ-S™ Core-Based Hybrid MCUs

If your application that is currently running on a microcontroller (MCU) needs to handle more data for connectivity and processing and/or to support display resolution above VGA, you need to upgrade your design. Running at frequencies of up to 800 MHz, our low-power hybrid MCUs bridge the gap between an MCU and a microprocessor (MPU).They are supported by our MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony to enable development for Real-Time Operating System (RTOS) and bare-metal software, Linux® OS and Microchip mainline distributions.These hybrid MCUs help you design your application by keeping the temperature specification under the ambient temperature condition (Tambient) unlike typical MPUs where Tjunction is used.Our hybrid MCUs come with a rich set of peripherals and user interfaces, including on-device Double Data Rate (DDR), Systems-in-Packages (SiPs) and Systems on Modules (SOMs), to simplify the design for cost-sensitive consumer, IoT and industrial applications.

SAM9 Hybrid MCUs

SAM9X7 Series

  • 800 MHz operation
  • DDR2/DDR3L and NAND Flash external memory interfaces
  • LCD controller with RGB, LVDS and MIPI® DSI® interfaces
  • One 10/100/1000 Mbps Ethernet Mac controller with IEEE® 1588 and TSN support, RGMII and RMII
  • Two CAN FD ports and up to 13 FLEXCOMs, such as USART, SPI and TWI/I2C
Explore SAM9X7 Series Parametrics

SAM9X60

  • 600 MHz operation
  • SDRAM, LPSDR, LPDDR, DDR2 and NAND Flash external memory interfaces
  • Resistive touch
  • Two Ethernet ports, two SD/embedded Multimedia Card (eMMC) ports, three Hi-Speed USB ports
  • Up to two CAN ports and up to seven UARTs
Explore SAM9X60
Products External DRAM Memory Interface Connectivity  Graphics Security Embedded Flash
SAM9X75 DDR2/3L USB, CAN-FD, Gb Ethernet (TSN) LVDS,RGB, MIPI- DSI,  LCD Yes _
SAM9X72 DDR2/3L USB, CAN-FD, Gb Ethernet (TSN) LVDS,RGB,LCD Yes _
SAM9X70 DDR2/3L USB, Gb Ethernet (TSN) _ Yes _
SAM9X60 SDRAM/DDR2/ LPDDR

USB, CAN,x2 10/100 Ethernet



 RGB, LCD Yes _
SAM9X35 SDRAM/DDR2 USB, CAN, 10/100 Ethernet RGB, LCD Yes _
SAM9X25 DDR2/LPDDR, SDRAM/LPSDRAM USB, CAN, x2 10/100 Ethernet _ _ _
SAM9M11 SDRAM/DDR2/ LPDDR USB, 10/100 Ethernet RGB, LCD, Video Dec _ _
SAM9M10 SDRAM/DDR2/ LPDDR USB, 10/100 Ethernet RGB, LCD, Video Dec Yes _
SAM9G46 SDRAM/DDR2/ LPDDR USB, 10/100 Ethernet RGB, LCD Yes _
SAM9G45 SDRAM/DDR2/ LPDDR USB, 10/100 Ethernet RGB, LCD Yes _
SAM9G35 SDRAM/DDR2/ LPDDR USB, 10/100 Ethernet RGB _ _
SAM9G25 SDRAM/DDR2/ LPDDR USB, 10/100 Ethernet _ _ _
SAM9G20 SDRAM USB, 10/100 Ethernet _ _ _
SAM9XE SDRAM USB, 10/100 Ethernet _ _ Yes
RM9200 SDRAM USB, 10/100 Ethernet _ _ _

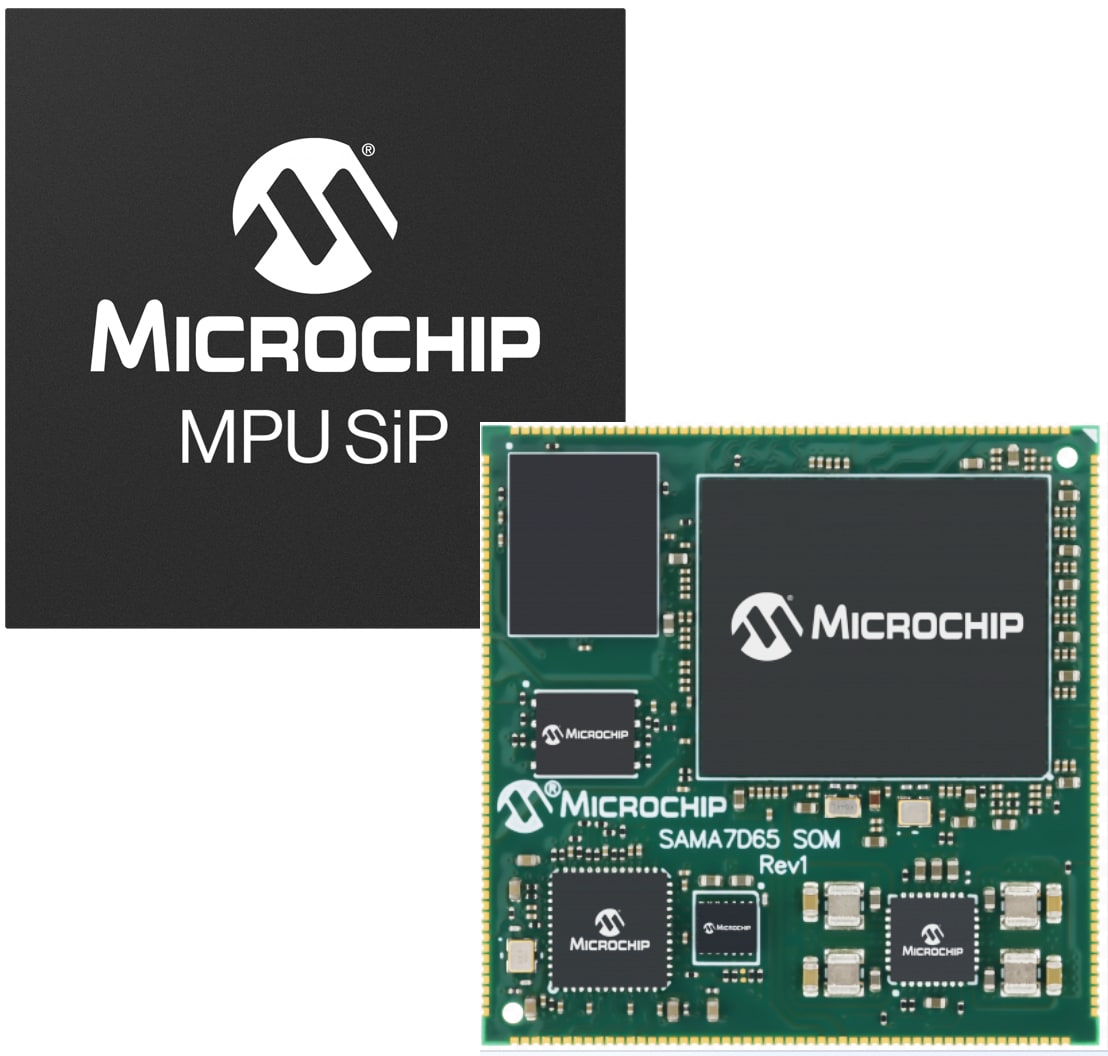

SiPs and SOMs

Simplify Your Development and Speed Up Your Time to Market

To facilitate the use of MPUs in your next design, our Systems in Packages (SiPs) feature integrated DRAM, and our Systems on Modules (SOMs) offer integrated DRAM plus features such as power management, wireless connectivity and on-board NAND Flash.

SiPs and SOMs

Getting Started

Visit our Developer Help website to access a complete suite of development resources for the SAM9 family including reference designs, software packages, hardware documentation and in-depth boot process.

Developer Help Graphic

Key Applications

Microchip Graphics Suite Image

Graphics

Differentiate your products with our aesthetically pleasing and feature-rich embedded Graphical User Interfaces (GUIs) that offer intuitive menus, vivid graphics and easy device interaction

Learn More
Automotive Interior Concept Image

Automotive

Our 32-bit MPU-based solutions meet the demands of modern in-car systems, including control panels, gateways, telematics and audio applications. These MPUs are AEC-Q100 Grade 2 qualified and supported by our client-driven obsolescence policy to enable long-term availability and reliability.

Learn More
Industrial Automation Concept Image

Industrial Automation Communications

Accelerate your industrial automation design with robust, real-time Industrial communication stacks that are seamlessly supported on our MPUs.

Learn More

Design Help

Need Help Choosing a Product for Your Design?

Our Client Support team is here to support you. Use the link below to schedule a call with a member of our team, use our live chat widget in the bottom right corner or submit a question for assistance and we will follow up with you as soon as possible.











Client support representative on phone image

MPU Design Partners

We partner with design consultants to assist with your MPU-based designs. Learn more about how our design partners can accelerate your time to market.

Design Partners
