M.2 Timing Modules
SyncE Timing Module for Data Center Servers
Timing Module for AI-Driven Data Centers and 5G Networks

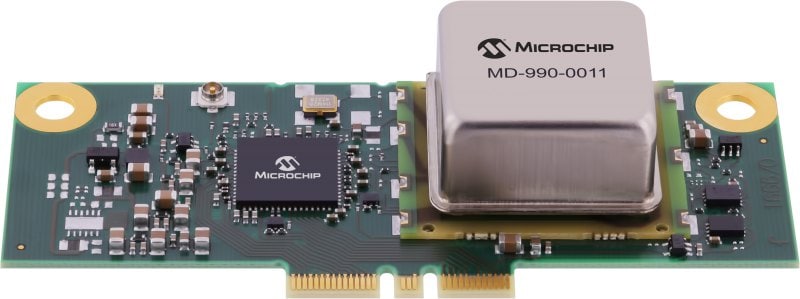

The MD-990-0011-B is a powerful SyncE timing module for data center servers and network equipment. It provides precise synchronization for applications, including AI, 5G and next-generation connectivity.
Collaborating with Intel, the MD-990-0011-B timing module offers seamless integration with Intel Xeon® 6 SoC server platforms, enabling OEMs and ODMs to build future-ready systems.
System Block Diagram
MD-990-0011-B Block Diagram
Featured Products
This timing module integrates several of our advanced technologies into a single solution. Key components include the following featured products.

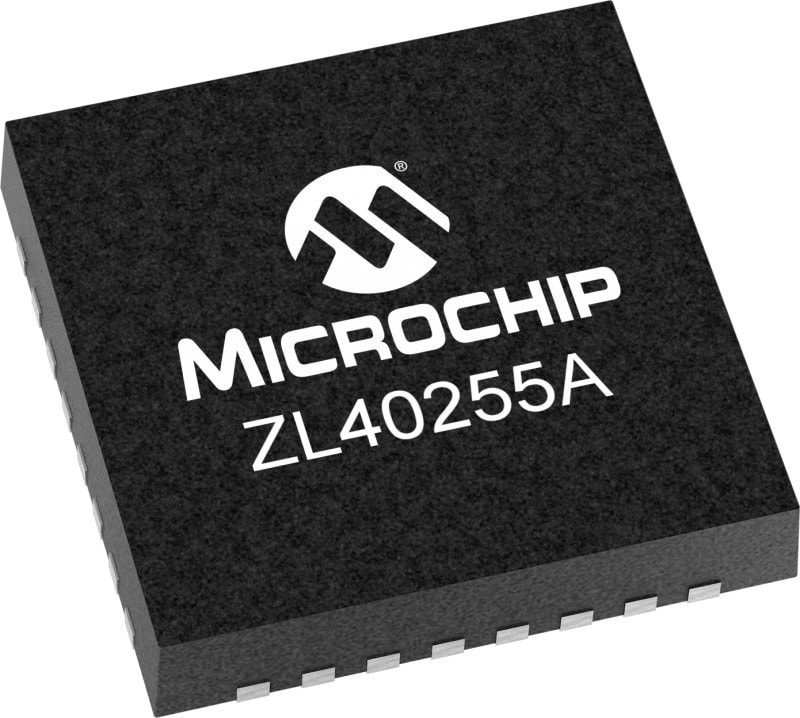

ZL40255A
Programmable LVCMOS ePPS Buffer
The ZL40255A programmable fanout buffer IC accepts one Low-Voltage Complementary Metal-Oxide Semiconductor (LVCMOS) input clock of up to 250 MHz and provides up to 6 LVCMOS outputs. It supports clock, data and ePPS signal applications. Automatic self-configuration occurs after power-up or reset.
ZL80132B
SyncE Network Synchronizer
The ZL80132B SyncE network synchronizer comes with dual DPLL clock channels, three DPLLs for advanced modes and five low-jitter synthesizers. Its features also include ePPS, fast boot, partial reset and cascading DPLL and is well-suited for 5G DU/CU server applications with GPS/GNSS synchronization.
OX-221
High-Stability Crystal Oscillator
The OX-221 is a high-performance Oven-Controlled Crystal Oscillator (OCXO) in a 22 × 25 SMD hermetically sealed package. It delivers excellent frequency stability, slope and holdover performance for 5G base stations and IEEE 1588 applications.
ZL80640B
ePPS TimeBuffer
The ZL80640B ePPS TimeBuffer features four inputs and 12 outputs, providing reliable time signal fanout with ePPS and smooth reference and synchronization locking. Intended for server-based 5G DU/CU applications, it can be integrated into OCP NIC or PCIe® daughter cards or deployed in large telecom chassis systems.

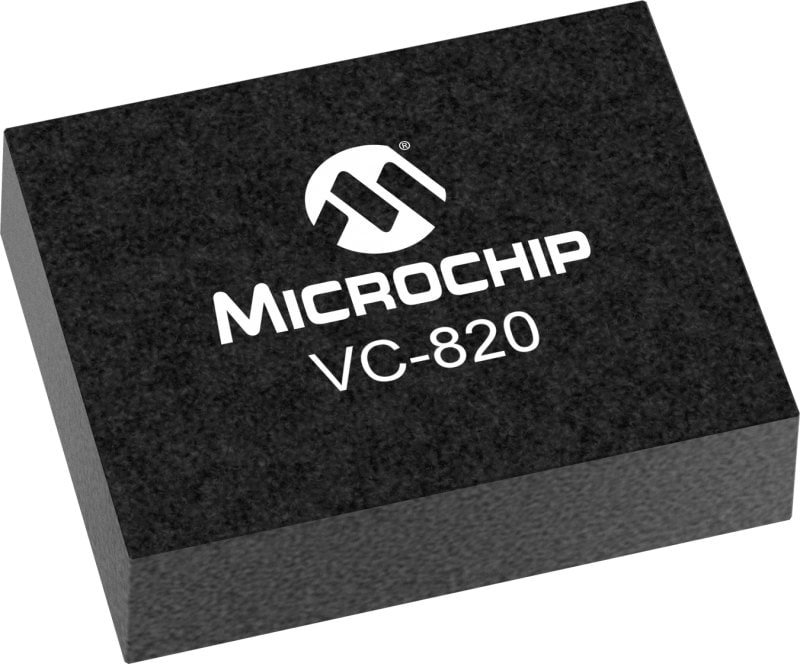

VC-820
CMOS Crystal Oscillator
This crystal oscillator is a quartz-stabilized square-wave generator with a CMOS output, using a fundamental or third-overtone crystal for low jitter and a monolithic IC to improve reliability and cost efficiency.

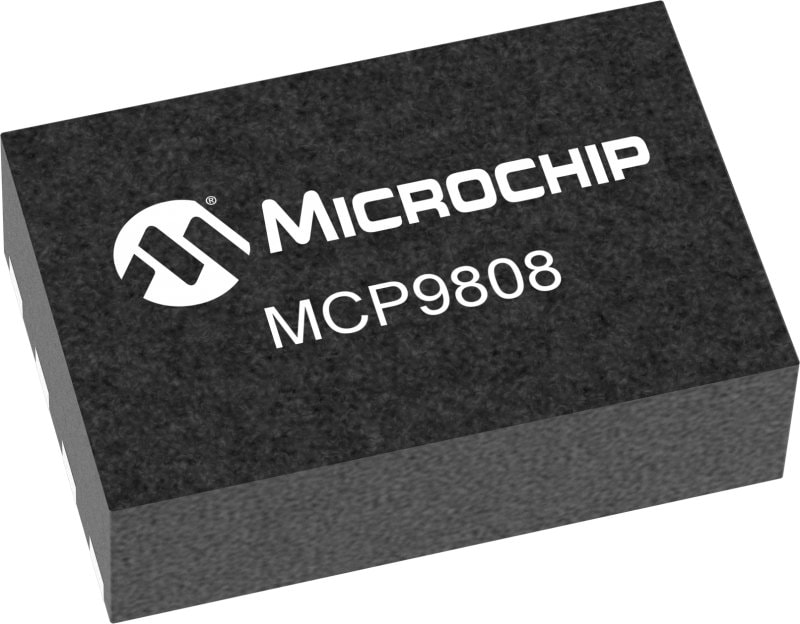

MCP9808
±0.5°C Max. Accuracy Digital Temperature Sensor
This digital temperature sensor features user-programmable registers for flexible settings, including power modes and temperature alert limits. Its configurable alert output and SMBus/I2C interface make it well-suited for advanced, multi-zone temperature monitoring.

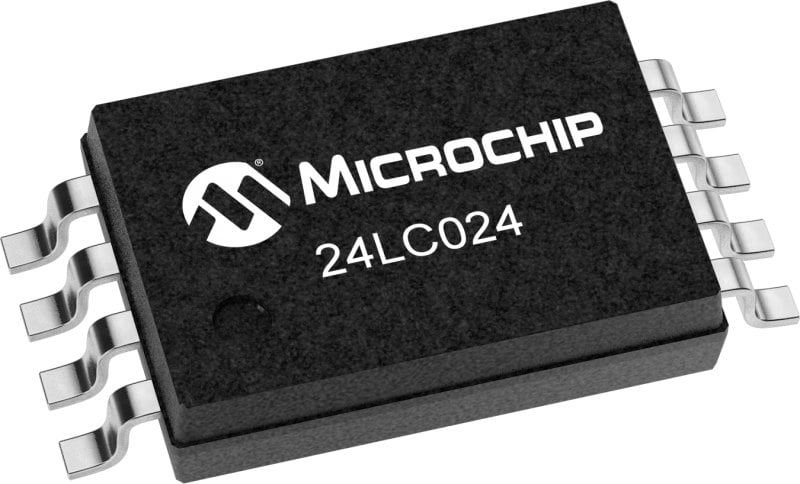

24LC024
2 kb I2C Serial EEPROM
The device features a 256 kb x 8-bit memory block with a two-wire serial interface, operates down to 1.7V and supports low standby and active currents. It supports 16B page writes and connections with up to eight devices to provide 16 Kbits of EEPROM.
Why Design With Our MD-990-0011-B Timing Module?
Precision and Reliability
The MD-990-0011-B delivers industry-leading Synchronous Ethernet (SyncE) and PTP timing accuracy so that your systems meet the most demanding data center and telecom synchronization requirements. Its robust holdover capability maintains precise timing during reference loss, minimizing downtime and protecting service continuity.
Future-Proof Design
With its modular M.2 E-Key form factor and pre-validated hardware and firmware, the MD-990-0011-B enables rapid integration across a variety of platforms, including OCP NICs, PCIe NICs and server motherboards. It provides support for standard Linux® tools and firmware updates so that your design remains adaptable to evolving standards and requirements.
Reduced Risk
We provide extensive technical documentation, application notes and direct engineering support to help you accelerate development and avoid common pitfalls. By leveraging a pre-certified, field-proven module, you reduce the need for custom timing circuit design and compliance testing, which reduces development effort and project risk.
