Low Earth Orbit (LEO) Quartz Oscillators

View All Parametrics

Radiation-Tolerant Oscillators for New Space

The need for economically priced oscillators for LEO applications presents a challenge for high-reliability designs. It is important to balance the need for reliability, cost and performance for oscillators in LEO environments.

To meet these requirements, we have taken oscillator designs that have proven track records for performance, yields and design margins and improved them to handle Total Ionized Dose (TID) and single event latch-up levels anticipated for LEO environments. This approach has resulted in our L series portfolio of robust oscillators that can meet the LEO requirements for mission life, launch conditions, radiation tolerance and lower cost.

Featured Products

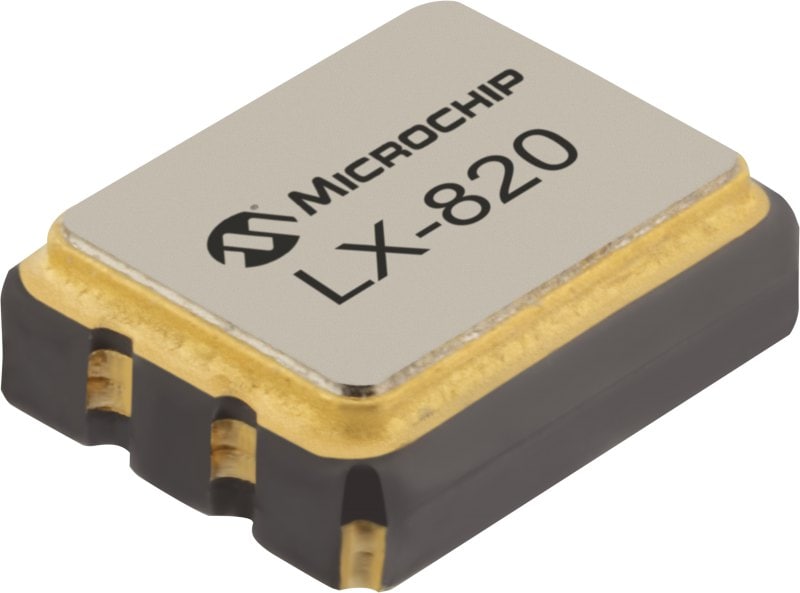

LX-820 XO

Radiation-Tolerant Small Size

The LX-820 is a 3.2 mm x 2.5 mm quartz oscillator qualified to 50 krad for Total Ionizing Dose (TID) and 40 MeV-cm²/mg for Single Event Latchup (SEL), making it well-suited for small form factor LEO missions.

Explore LX-820

LT-802 TCXO

Small Form Factor

The LT-802 series of TCXOs, in a 5 × 3.2 mm ceramic package, provides high stability, low power consumption and radiation resistance.

Explore LT-802

LO-201 OCXO

100 MHz to 120 MHz Sine Wave OCXOs

The LO-201 family of OCXOs satisfies requirements for higher frequency applications without the need to multiply from lower frequencies.

Explore LO-201

LO-202 OCXO

20 MHz to 35 MHz Sine Wave OCXOs

The LO-202 family of the L-series OCXOs is our mid-frequency timing solution for the LEO market.

Explore LO-202

LX-703 XO

1.25 MHz to 135 MHz XOs

The LX-703 series oscillators is specifically designed for New Space applications with radiation resistance and launch survivability requirements.

Explore LX-703

LT-400 TCXO

Fully Analog Design

The LT-400 series of Temperature-Compensated Crystal Oscillators (TCXOs) uses fully analog, resistor- and thermistor-compensation techniques to provide excellent frequency stability with the benefit of a low-power solution.

Explore LT-400

LO-200 OCXO

10 MHz to 20 MHz Sine Wave OCXOs

The LO-200 series of Oven-Controlled Crystal Oscillators (OCXOs) provides the best stability, phase noise and aging that come with lower frequency crystal designs.

Explore LO-200

Documentation

Application Notes

Absolute Pull Range
