Single Cell, Li-Ion/Li-Polymer Charge Management Controller
Overview
- Linear Mode:Yes
- # of cells:1
- Int/Ext FET:Int
- Vin Max (V):6
- Vin Min (V):3.75
- Voltage Regulation Accuracy (%):0.75
- Temperature Monitor:No
- Charge Safety Timers:No
- Max. Thermal Regulation :Yes
- High accuracy preset output voltage regulation (+/-0.75%)
- Output voltage options include 4.2V, 4.35V, 4.4V and 4.5V
- User-programmable charge current
- Charge status output can directly drive LEDs
- On-chip thermal regulation
- Preconditioning and end-of-charge ratio options
- Under-voltage lockout

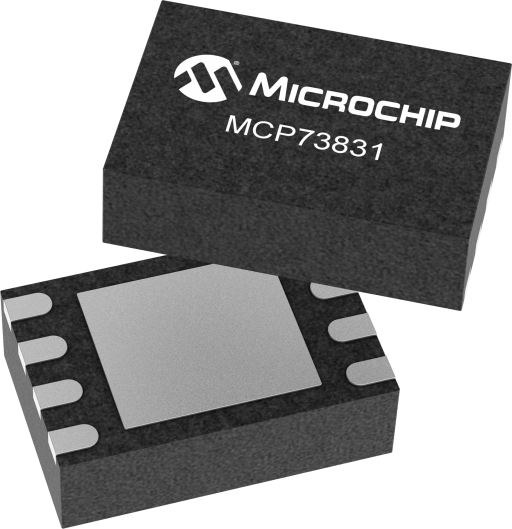

Tiny 500mA linear charge management controller. Includes integrated pass transistor, integrated current sensing, and reverse discharge protection in 5-pin SOT-23 and thermally-efficient 8-pin 2mm x 3mm DFN packages
