TrustFLEX Secure Authentication IC
Pre-provisioned secure authentication IC for TLS system
Overview
- Algorithm Type:ECC P256 (ECDH and ECDSA), SHA256, AES-GCM
- Standby Typical (uA):0.03
- Interface Type:Single-wire; I2C
- Provisioning:TrustFLEX
- Hardware support for asymmetric sign, verify, key agreement – ECDSA: FIPS186-3 Elliptic Curve Digital Signature
- ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman
- NIST standard P256 elliptic curve support
- Hardware support for symmetric algorithms
- SHA-256 & HMAC hash including off-chip context save/restore
- AES-128: encrypt/decrypt, galois field multiply for GCM
- Networking key management support
- Turnkey PRF/HKDF calculation for TLS 1.2 & 1.3
- Ephemeral key generation and key agreement in SRAM – Small message encryption with keys entirely protected
- Secure boot support
- Full ECDSA code signature validation, optional stored digest/signature – optional communication key disablement prior to secure boot
- Encryption/Authentication for messages to prevent on-board attacks
- Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
- Two high-endurance monotonic counters
- Guaranteed unique 72-bit serial number
- Two interface options available
- High-speed single pin interface with One GPIO pin
- Operating temperature up to 100C
- <150nA max sleep current

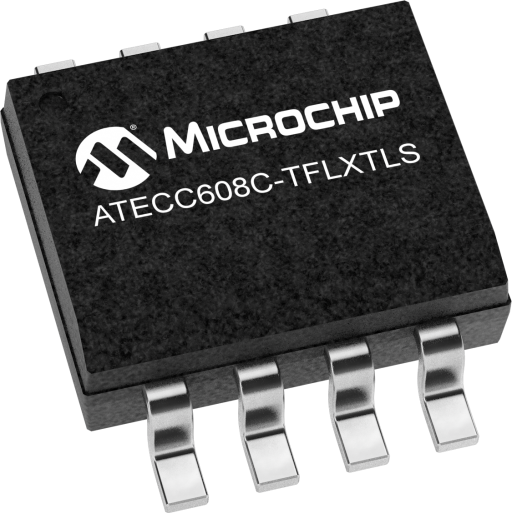

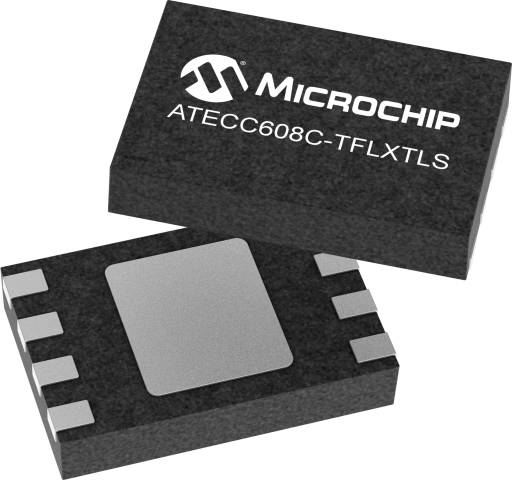

- 8-pad UDFN, 8-lead SOIC, and 3-lead CONTACT packages
- 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
- 1MHz Standard I2C interface
The Microchip ATECC608C-TFLXTLS is the TrustFLEX secure element part of the Trust Platform for the CryptoAuthentication family. The device comes pre-configured implementing the most common authentication use cases use in the embedded industry by default. It will help the architect accelerating his development time. The configuration is locked in the device and cannot be changed. The cloud infrastructure, either it's a public of private network, can implement either token-base authentication or customer certificate authentication (traditional PKI model). This secure element integrates ECDH (Elliptic Curve Diffie Hellman) security protocol an ultra-secure method to provide key agreement for encryption/decryption, along with ECDSA (Elliptic Curve Digital Signature Algorithm) sign-verify authentication for the Internet of Things (IoT) market including home automation, industrial networking, medical, retail or any TLS connected networks. Other important features integrated in the ATECC608C-TFLXTLS are the AES128 hardware accelerator and hardware-based cryptographic key storage and cryptographic countermeasures which eliminate potential backdoors linked to software weaknesses.
The device is agnostic of any microprocessor (MPU) or microcontroller (MCU) and compatible with virtually any MCUs or MPUs thanks to the CryptoAuthLib library. As with all CryptoAuthentication devices, the ATECCC608C-TFLXTLS delivers extremely low-power consumption, requires only a single GPIO over a wide voltage range, and has a tiny form factor making it ideal for a variety of applications that require longer battery life and flexible form factors.
The ATECC608C-TFLXTLS comes also provisioned with default thumbprint certificates and key that are unlocked in the device and changeable by the customer own credentials (differently than the ATECC608B Trust&GO. It helps providing the flexibility to the customer to implement its own certificate chain. Take a look at the various code examples using the Microchip Trust Platform software tool:
Cannot load image!
Not the part you were looking for?
Tools And Software
Development Environment
Demo & Evaluation Boards
3rd Party Tools
| Tools |
|---|
 The Trust Platform Design Suite (TPDS) is our onboarding tool for our security-related solutions. The full onboarding experience includes, but is not limited to:
Training and education about security concepts
Prototyping, including dummy key generation and code examples, available via our interactive application notes
Access to our provisioning system through a secure sub-system configurator and secure exchange process
|
| Tools |
|---|
| The CryptoAuth Trust Platform provides a compact development solution for developing IoT solutions with the ATECC608B-TNGTLS and ATECC608B-TFLXTLS and ATECC608B-MAHDA devices or the ATECC608C equivalents.
|
| The ATECC608 Trust is an add-on board for the CryptoAuth Trust Platform and other Microchip development platforms that contain a mikroBUS header For IoT Applications.
The board has ATECC608C-TFLXTLS, ATECC608C-TNGTLS, ATECC608C-TCSM and ECC608-TMNGTLS devices.
|
| Tools |
|---|
| Secure SOIC Click is universal, socket based click board, specifically designed for the Microchip CryptoAuthentication™ devices in an 8-pin SOIC package. This click board™ supports the SPI, I2C, and the SWI interface based ICs from the CryptoAuthentication™ family with a flexible command set, that allows use in various security applications, including Network/IoT Node Endpoint Security, Secure Boot, Small Message Encryption, Key Generation for Software Download, Ecosystem control, Anti Counterfeiting and similar.
Secure SOIC click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket. |
["developmentenvironment","Development Environment"] ,
["emulators","Emulator and Debuggers"] ,
["demoevaluationboards","Demo & Evaluation Boards"] ,
["programmerrelations","Programmers"] ,
["thirdpartytools","3rd Party Tools"] ,
["legacy","Legacy"] ,
["softwarelibraries","Library and Firmware"]
referencedesigns,Reference Designs:
codeexamples,Code Examples:
ibisboarddesignfiles,Board Design Files:
spicemodels,Spice Models:
plecsmodels,PLECS Models:
bootloaders,Bootloaders:
Purchase
Loading
Catalog Parts for ATECC608C-TFLXTLS
All parts
|
|
|
|
|
|
|
|||
|---|---|---|---|---|---|---|---|---|
| ATECC608C-TFLXTLSU-PROTO | 8 | UDFN | -40C to +85C | BAG | $1.40 | In Stock Now | Please select a different part available in this familyView Samples | |
 Trust Flex TLS, Provisioned Proto Typing, 8-UDFN, I2C, (10 bulk) Country of Origin: In Stock Now: 24,445 Partial BAG Up to 21725 partial units estimated to ship on Full BAG Up to 2720 full units estimated to ship on Additional Stock Arriving. You can secure stock by ordering now, and we will ship the product up to the ordered quantities on the dates given below. Incoming Factory Stock. Order Now to Secure Up to 8580 partial units estimated to ship on This lead time represents a snapshot in time. Actual delivery may vary depending on order timing, volume, and other factors. Microchip remains committed to meeting or improving our committed dates to the best of our ability.Lead Time For Additional Quantities Additional quantities estimated to ship by | ||||||||
| ATECC608C-TFLXTLSS-PROTO | 8 | SOIC | -40C to +85C | TUBE | $1.40 | Order Incoming Factory Stock Now | Please select a different part available in this familyView Samples | |
| Trust Flex TLS, Provisioned Proto Typing, 8-SOIC (10 bulk) Country of Origin: Order Incoming Factory Stock Now Additional Stock Arriving. You can secure stock by ordering now, and we will ship the product up to the ordered quantities on the dates given below. Incoming Factory Stock. Order Now to Secure Up to 5000 partial units estimated to ship on Up to 5000 partial units estimated to ship on Up to 8468 partial units estimated to ship on Up to 7000 full units estimated to ship on Up to 900 partial units estimated to ship on Show More This lead time represents a snapshot in time. Actual delivery may vary depending on order timing, volume, and other factors. Microchip remains committed to meeting or improving our committed dates to the best of our ability.Lead Time For Additional Quantities Additional quantities estimated to ship by | ||||||||
