Overview

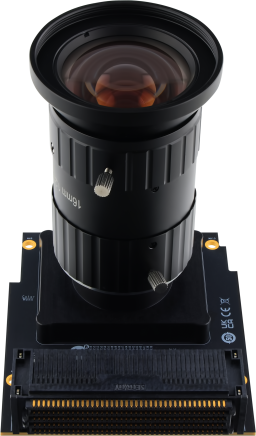

Microchip’s SLVS-EC 3.0 FMC (VIDEO-DC-SLVS30) enables evaluation of Sony’s high-speed SLVS-EC receiver IP on PolarFire® FPGAs for advanced CMOS image sensor applications.
It supports Sony IMX901 with 4-lane SLVS-EC 3.0 at 4.752 Gbps/lane, enabling 7840 × 2112 @ 60 fps video streaming, with support for 2/4/8 lanes, up to 9.504 Gbps/lane, and RAW-8/10/12/16 formats.

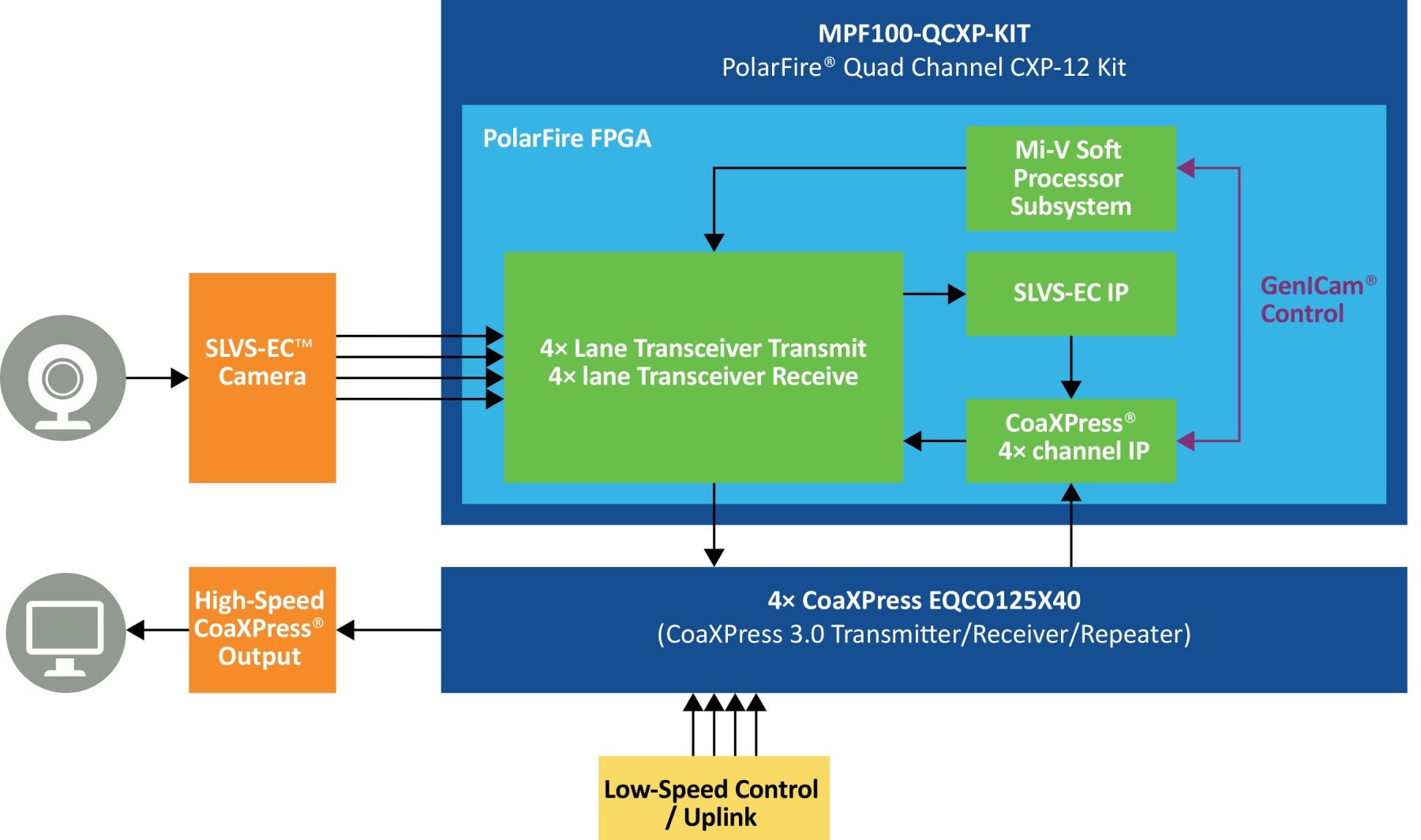

SLVS-EC 3.0 Block Diagram

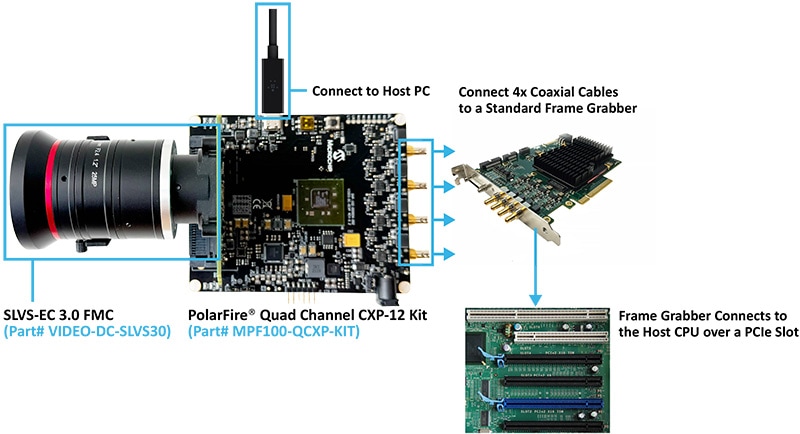

SLVS-EC 3.0 FMC Demo Setup
Demonstrates 4-lane SLVS-EC 3.0 at 4.752 Gbps, streaming 7840×2112 video at 60 fps and converting it to 4-channel CoaXPress for high-speed frame capture.
The PolarFire Quad Channel CXP-12 Kit (P/N: MPF100-QCXP-KIT) needs be purchased seperately.
- FPGA
- PolarFire® and PolarFire SoC FPGA support
- SLVS-EC Receiver IP v4.4
- Memory
- 64-Kbit I²C EEPROM
- High-Speed Connectivity
- 1× SLVS-EC v3.0 interface
- 2 / 4 / 8 configurable lanes
- Up to 9.504 Gbps per lane
- Expansion
- 1× VITA™ 57.4 FMC+™ LPC Connector
- Sony CMOS image sensor interface
- Supports RAW-8, RAW-10, RAW-12, and RAW-16 pixel formats
- 1× SLVS-EC 3.0 FMC (VIDEO-DC-SLVS30)
- 1× QuickStart Card
Cannot load image!
| Tool Details |
|---|
The quad-channel PolarFire CXP-12 Kit features an SLVS-EC™-to-CoaXPress bridge for connecting high-speed image sensors to vision systems. It enables reliable, low-latency, high-resolution imaging over long-distance coaxial links for industrial vision and imaging applications.
|
