Overview
Microchip’s PolarFire® and PolarFire® SoC FPGAs enable high-speed, real-time imaging by bridging SLVS-EC sensors with CoaXPress infrastructure for reliable, long-distance performance in machine vision and medical applications.
SLVS-EC 2.0 to CoaXPress block Diagram

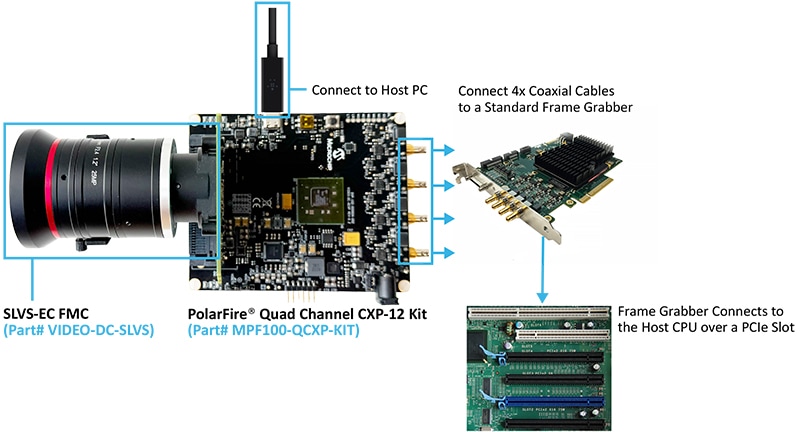

PolarFire Quad Channel CXP-12 Kit Demo Setup
Real-time high-resolution SLVS-EC video captured and transmitted over 4-channel CXP-12 using the PolarFire® FPGA platform, delivering high bandwidth with ultra-low latency.
The SLVS camera FMC (P/N: VIDEO-DC-SLVS) needs be purchased seperately.
Key Features
- SLVS-EC: Up to 8 lanes for high-speed raw data transfer
- CoaXPress v2.0: Up to 12.5 Gbps per channel
- Combined High bandwidth, long distance, and low latency

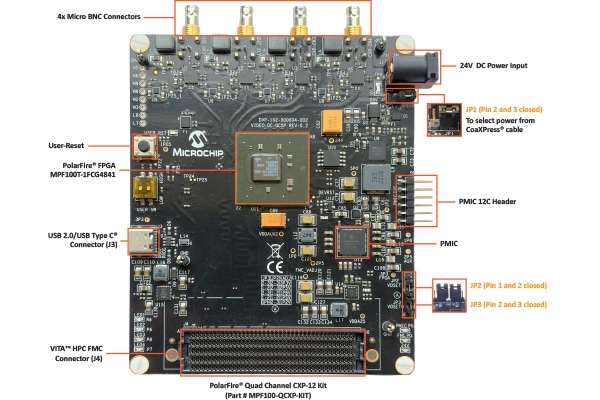

Board Features

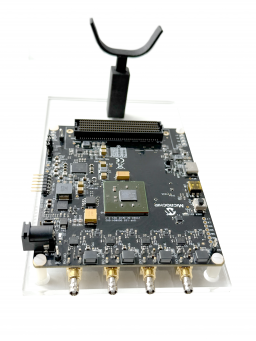

- PolarFire Quad Ch CXP-12 Kit with Acrylic base
- USB 2.0 Cable C Male to C Male
- Power Cord and Adaptor 24V 90W
- QuickStart card
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PolarFire Quad Channel CXP-12 User Guide | User Guides | Download | ||
| PolarFire Quad Channel CXP-12 Schematics | Information Sheet | Download | ||
| PolarFire Quad Channel CXP-12 Board Files | Board Design Files | Download | ||
| AN6143: SLVS to CoaXPress Demo Application Note | Application Notes | Download |
| Tool Details |
|---|
This FMC daughter card is a dedicated platform for evaluating and testing the SLVS-EC receiver IP with PolarFire FPGAs.
|
