Part Number: TMIK010

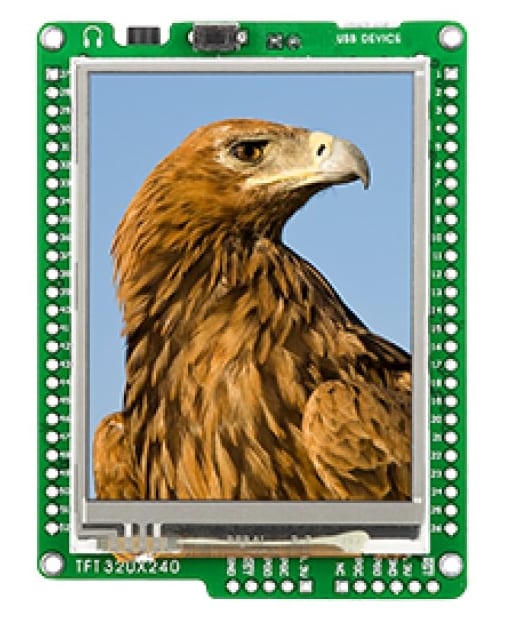

TMIK010 - MIKROMEDIA BOARD FOR PIC24

  • A palm-sized unit with amazing multimedia capabilities

Overview

The Mikromedia Board for PIC24 is a palm-sized unit with amazing multimedia capabilities. Based on the PIC24F256GB110 with USB On-The-Go (OTG), it includes a 320 x 240 TFT display with touchscreen, stereo MP3 codec, 8-Mbit serial flash, microSD card slot, headphone jack, and USB connector. Powered by USB, the board can easily play MP3 files from a microSD card with full 320kbps quality.
