Part Number: THW1024

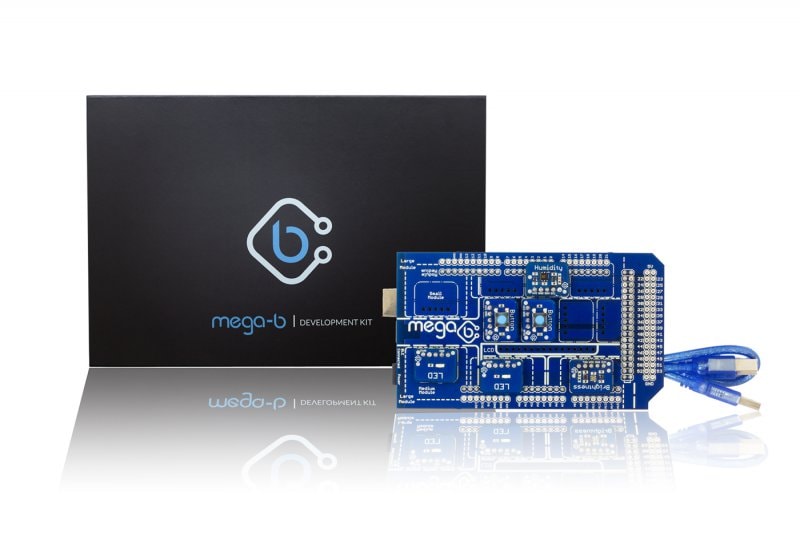

BREADWARE MEGA-B DEVELOPMENT KIT
- Microchip RN4871 BLE module
- Atmel ATmega 2560 Microcontroller
- 8-bit, 16 MHz processor
- 8Kbytes RAM, 256KBytes FLASH
- USB 2.0B or Barrel Jack
- FCC/CE certified

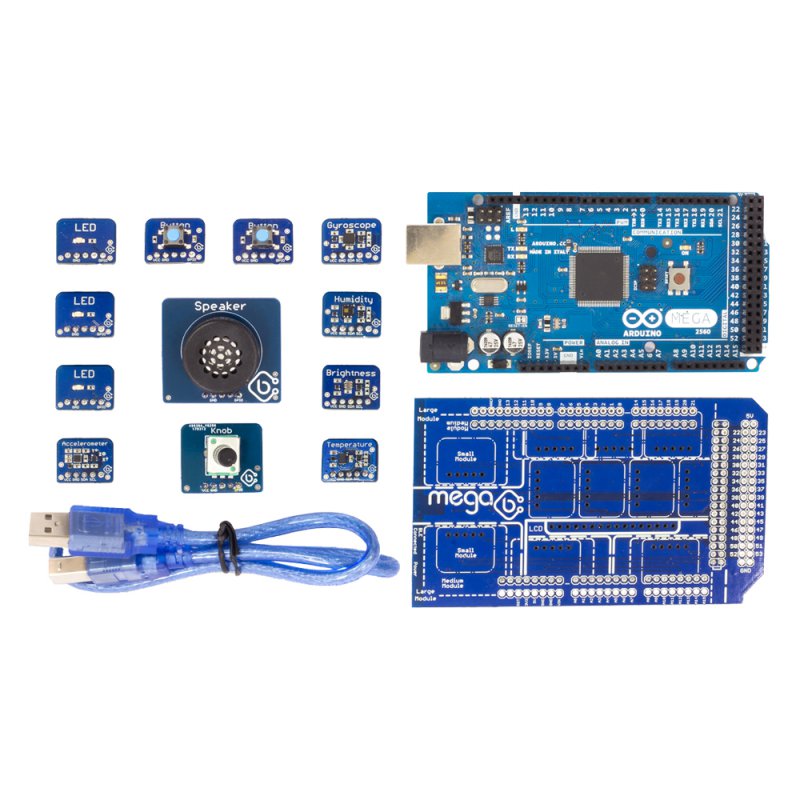

- Mega-B Bread™Board
- Arduino Mega
- USB 2.0A to 2.0B programming cable
- 13 Breadware Modules
Overview
The Mega-B Development Kit is a Bluetooth LE 4.2 prototyping kit for quickly building and testing your IoT concept. All modules are plug-n-play, allowing for flexible prototyping. The kit can be programmed through our online platform, Breadware IDE, or with the Arduino IDE. You can leverage design templates, write device firmware using our “hardware-object-oriented programming language,” build test mobile applications, configure web dashboards for the device, and utilize webhooks to stream data.
The Mega-B piggybacks on the Arduino Mega 2560, and all of the functionality and GPIOs are preserved, giving you the capability to integrate 3rd party modules, or your own designs.
