Part Number: TDGL019

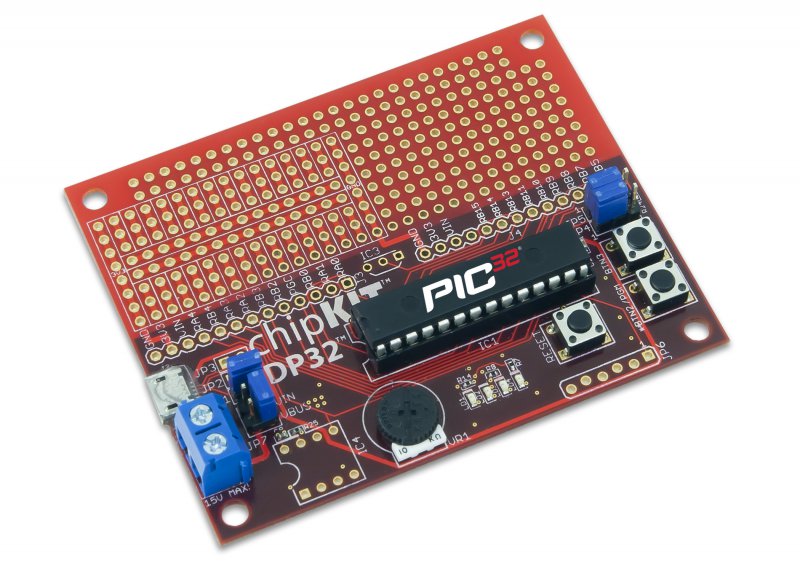

TDGL019 - CHIPKIT DP32 DEVELOPMENT BOARD

  • Microchip PIC32MX250F128B microcontroller (40/50 MHz 32-bit MIPS, 128K Flash, 32K SRAM)
  • 15V maximum input voltage
  • 19 available I/O pins
  • Nine analog inputs
  • Potentiometer connected to an analog input
  • Four user LEDs
  • Two user push buttons
  • Prototyping area

Overview

The chipKIT™ DP32™ is the first chipKIT rapid prototype project board from Digilent. The board adds the power of the Microchip PIC32MX250F128B with a prototyping area in a single board.
