Overview

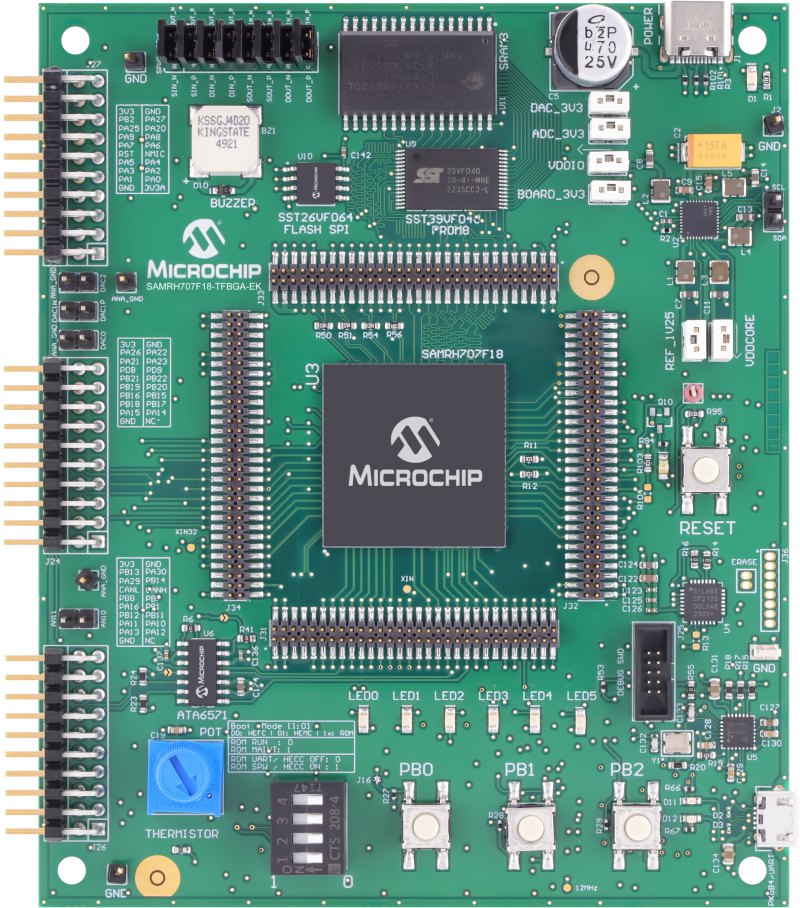

The SAMRH707F18-TFBGA-EK is a hardware platform enabling the evaluation of the plastic version of the Radiation-Hardened ARM Cortex-M7 SAMRH707 microcontroller. The evaluation kit is supported by Microchip’s MPLABX/ HARMONY Integrated Development Environment (IDE) and provides easy access to the SAMRH707 device features.
SAMRH707F18x-4QB-HP Sample Microcontroller
- On-Board Memories
- 512 Kbytes (8-bit wide) Flash
- 512 Kbits (8-bit wide) SRAM
- 64 Mbit SPI Flash
- On-Board Clock Management
- 32.768 kHz crystal
- 10 MHz oscillator
- Communication Interfaces
- UART emulation through USB interface
- CAN ports supporting ATA6571 transceivers
- One SpaceWire Dedicated Header
- Analog Function Interfaces
- DAC outputs : Buzzer / Header
- ADC inputs : Potentiometer / Thermistor / Header
- Embedded Debug Access
- On-Board Embedded Debugger (PKOB4)
- SWD Debug connector
- Extension Capability
- Three headers compatible with Xplained mezzanine board
- Four connectors with direct access to the microcontroller pins
- On-Board End User Interface
- One mechanical Reset button
- Three mechanical user push buttons
- Six user LEDs
- One pin for NMIC
- 5V Power Supply
- USB-C port
- Power status LED
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| SAMRH707F18-TFBGA-EK Evaluation Kit User Guide | User Guides | Download | ||
| SAMRH707F18 TFBGA Evaluation Kit Schematics | Schematics | Download | ||
| SAMRH707 TFBGA EK AltiumProject | CAD Resources | Download | ||
| SAMRH707F18 TFBGA Footprint | Other Board Design Files | Download | ||
| SAMRH707F18 TFBGA Symbol | Other Board Design Files | Download | ||
| Getting Started with SAMRH707F18 Microcontroller using MPLAB-X IDE and MCC Harmony Framework | Application Notes | Link | Download |
| Tool Details |
|---|
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
|
