Part Number: PD-IM-7648T4
PD-IM-7648T4
- Featuring PD69208T4, PD69200
- IEEE 802.3af/at/bt/PoH standard compliant
- Supporting 48 x 45W / 24 x 90W ports
- 225W power supply or DC power input
- LED stream
- UART / USB host interface
- Four gangs (each contains 12 X RJ45 connectors)
- Switch domain isolated from PoE domain
- Switch domain USB interface Switch domain
- UART (RS232) interface
- External power supplies interface
- PoE manager manual reset (on daughterboard)
- PoE controller manual reset (on motherboard)
- There are no pulse transformers nor common mode chocks per port
- Evaluation system working temperature: 0°C to +50°C
- RoHS compliant
Overview

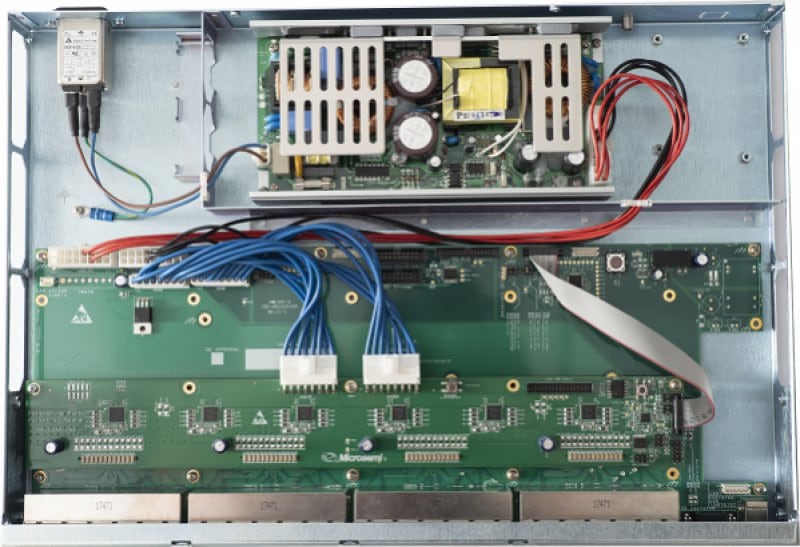

The PD-IM-7648T4 is a 48-port PD69208T4-based enhanced evaluation board. The PoE evaluation system incorporates a motherboard (PD-IM-7500) and a daughter board (PD-DB-7648T4) in an enclosure with power supply.It provides designers with the needed environment to evaluate the performance and implementation of PD69208T4 PoE Manager and PD69200 PoE controller mounted on the PD-DB-7648T4 daughter board.The evaluation system incorporate a simple PC connection via commonly available UART / USB interface. GUI is available to easily configure PoE system parameters and monitor the PoE ports status.
For the latest PoE FW available, please visit Microchip Software Libraries.
Package Contents
N/A
