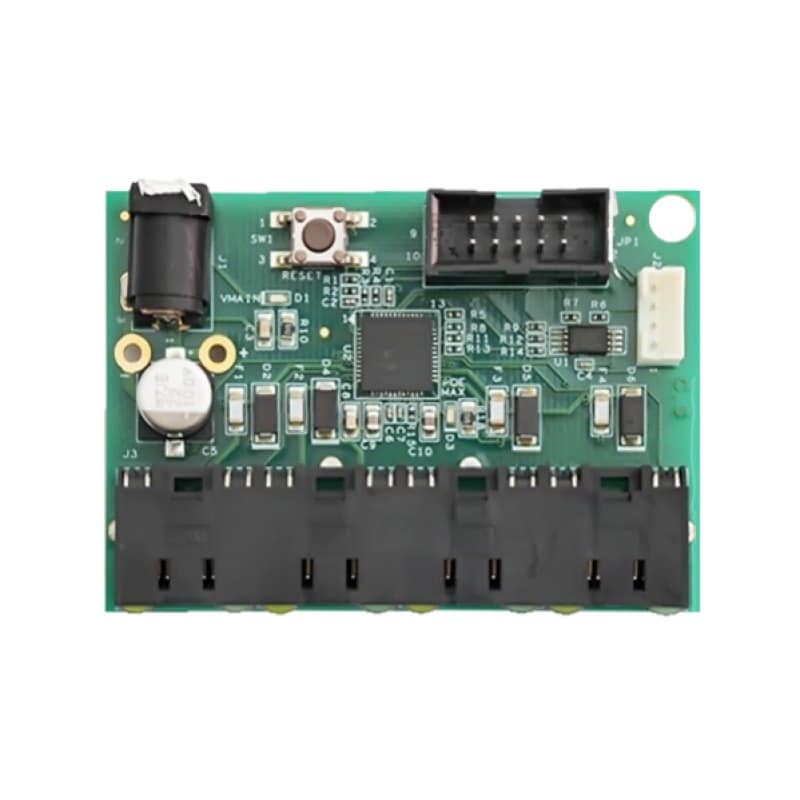

Part Number: PD-IM-7504B

PSE AT WITH PD69104B1

  • Featuring PD69104B1
  • IEEE 802.3af/at standard compliant 4 ports
  • Supporting 4 x 30W or 2 x 60W ports
  • LED stream
  • Designed to support four RJ45 ports, PoE application, and PoE extended mode (2-pairs)
  • Vin connector – DC jack
  • On-board LEDs indicators
  • Reset button EEPROM support I2C and UART communication connectors
  • Marketing board working temperature: 0°C to +50°C
  • RoHS compliant
View Purchasing Options
Contact Us

Overview

The PD-IM-7504B evaluation board provides designers with the needed environment to evaluate the performance and implementation of PoE and PoE extended mode applications, based on PD69104B1 PoE manager.The evaluation board enables PoE designers to evaluate Microchip's PoE solution with maximum flexibility and ease in configuration.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PD-IM-7504B Design Files Download 8319d12e-cb60-42bc-87bf-b5d11a29db9e
PD-IM-7504B User Guide Download f0c3e9e7-f837-4574-aa19-11c1396319b9
