Overview

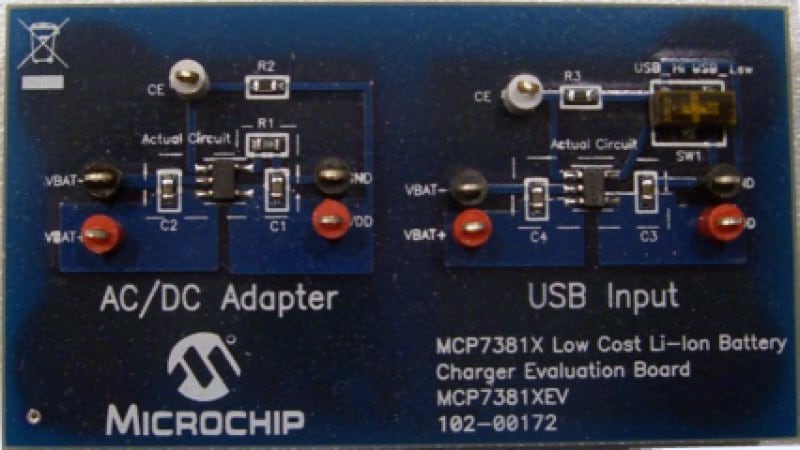

The MCP7381X Li-Ion Battery Charger Evaluation Board demonstrates the features and abilities for Microchip’s MCP7381X Li-Ion Battery Charger Evaluation Board Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management Controllers. The MCP73811/2 are stand-alone highly integrated linear Li-Ion battery chargers that employ a constant current/constant voltage (CCCV) charge algorithm for cost sensitive and space limited applications.
- Color coded test points ensuring the proper connections: Red for VDD and VBAT+; black for GND & VBAT-;White for CE (Chip Enable)
- 2-position Dip Switch for charge current selections between USB_Low and USB_High
- Chip Enable (CE) Pin to disable the system when drive Low
- Evaluating different charge current rates by changing RPROG (Programming Resistor) values
The MCP7381X Li-Ion Battery Charger Evaluation Board demonstrates the features and abilities for Microchip’s MCP7381X Li-Ion Battery Charger Evaluation Board Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management Controllers. The MCP73811/2 are stand-alone highly integrated linear Li-Ion battery chargers that employ a constant current/constant voltage (CCCV) charge algorithm for cost sensitive and space limited applications.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP7381X Low-Cost Li-Ion Battery Charger Evaluation Board User's Guide | User Guide | Download | ||
| MCP7381X Low-Cost Li-Ion Battery Charger Evaluation Board Gerbers | Board Design Files | Download | ||
| MCP73811/2 Data Sheet | Data Sheets | Download |
