Part Number: MCP73113EV-1SOVP

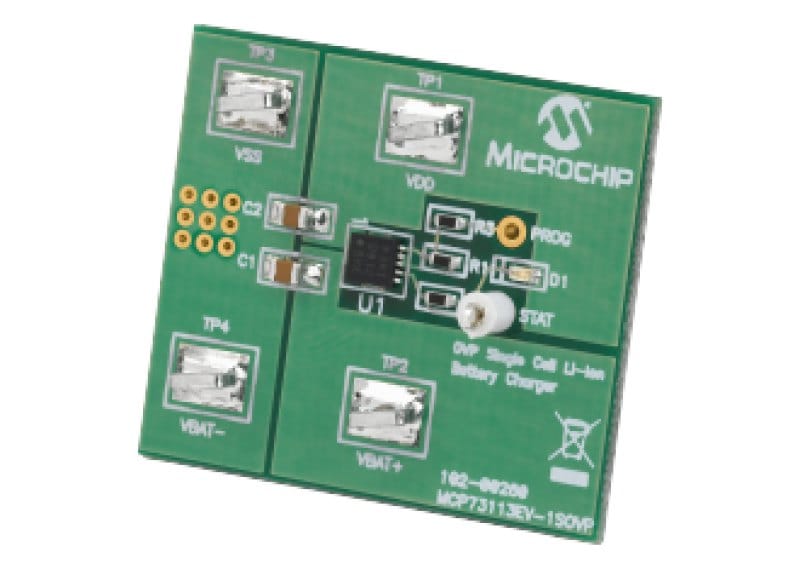

MCP73113 OVP SINGLE CELL LI-ION BATTERY CHARGER EVALUATION BOARD

  • 6.5V Input Overvoltage Protection
  • 10% Preconditioning of deeply depleted cells
  • 32-Minute Preconditioning Timer
  • 6-Hour Safety Timer
  • 10% Automatic Charge Termination
  • 500 mA and 1000 mA Preset Fast Charge Current
  • Automatic Recharge
  • Thermal Regulation
  • One Blue LED indicates charge status
  • Small DFN packages with Exposed Pad as additional heat sink
View Purchasing Options
Contact Us

Overview

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board demonstrates the features of Microchip’s MCP73113 “Single-Cell Li-Ion / Li-Polymer Battery Charge Management Controller with Input Overvoltage Protection”.
Package Contents
The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board demonstrates the features of Microchip’s MCP73113 “Single-Cell Li-Ion / Li-Polymer Battery Charge Management Controller with Input Overvoltage Protection”.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP73113EV-1SOVP Gerbers Download 09eff1a5-ff24-4862-9e06-f9ed19b83993
MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board User's Guide Download 4cfbba0f-fe12-461c-a1d2-dce1b917eb0a
