Overview
This product is no longer available for sale.
This kit supports Mindi™ Active Filter Designer & Simulator and active filters designed by FilterLab® V2.0. These filters are all pole and are built by cascading first and second order sections.

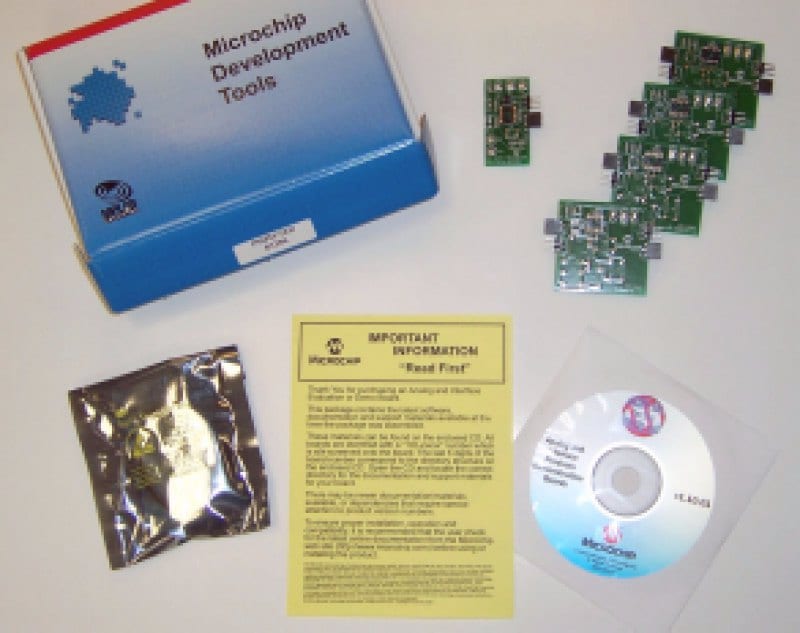

The Active Filter Demo Board Kit is comprised of three sub-assemblies:
This kit supports Mindi™ Active Filter Designer & Simulator and active filters designed by FilterLab® V2.0. These filters are all pole and are built by cascading first and second order sections.
The Active Filter Demo Board Kit is comprised of three sub-assemblies:
- VDD/2 Filter Section – One PCB designed to provide mid-supply biasing to the other Printed Circuit Boards (PCB); it provides test points for connecting a lab power supply and a lab signal generator
- Active Filter Sections – Four PCBs that support active filter designs with filter order between n = 1 and 8; each board supports a first or second order filter section, and provides an output test point for lab equipment
- Accessory Bag – Contains op amps and zero ohm jumpers that can be used to help build filters; it also contains resistors and capacitors needed to build a 5th order, Bessel low-pass filter.
- Easily re-configured
- Sockets for op amps, resistors, and capacitors
- Supports all active filters designed by Mindi™ Active Filter Designer & Simulator
- Supports all active filters designed by FilterLab® V2.0
This kit supports Mindi™ Active Filter Designer & Simulator and active filters designed by FilterLab® V2.0. These filters are all pole and are built by cascading first and second order sections.
The Active Filter Demo Board Kit is comprised of three sub-assemblies:
The Active Filter Demo Board Kit is comprised of three sub-assemblies:
- VDD/2 Filter Section – One PCB designed to provide mid-supply biasing to the other Printed Circuit Boards (PCB); it provides test points for connecting a lab power supply and a lab signal generator
- Active Filter Sections – Four PCBs that support active filter designs with filter order between n = 1 and 8; each board supports a first or second order filter section, and provides an output test point for lab equipment
- Accessory Bag – Contains op amps and zero ohm jumpers that can be used to help build filters; it also contains resistors and capacitors needed to build a 5th order, Bessel low-pass filter.
- Lab Equipment:
Power Supply Signal Generator Oscilloscope Network Analyzer (if available)
