Part Number: MA330052

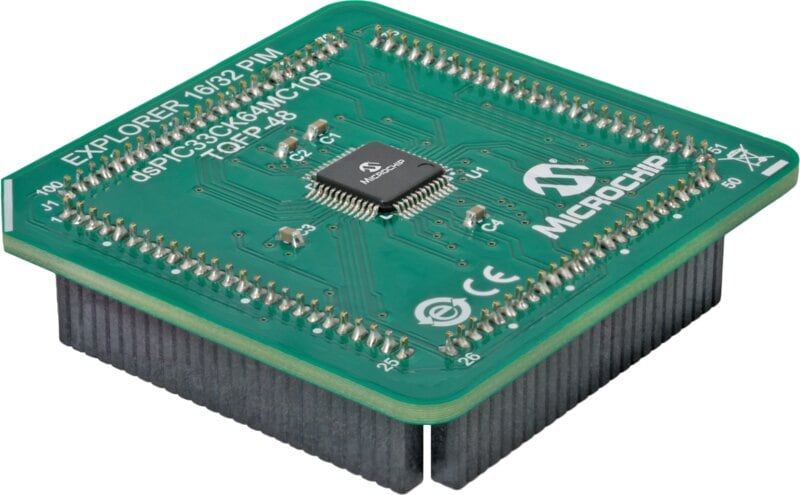

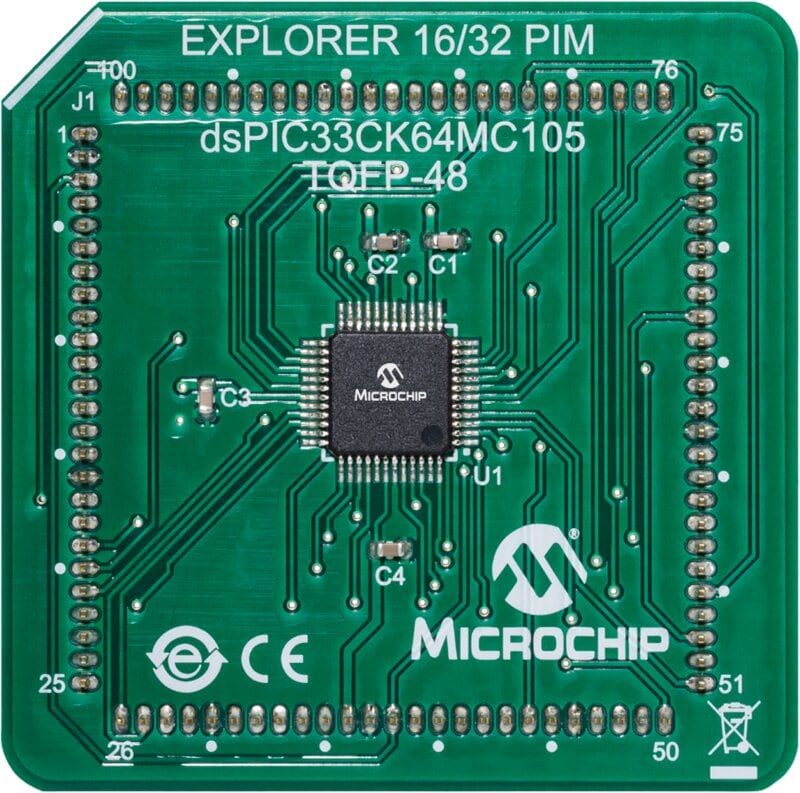

DSPIC33CK64MC105 GENERAL PURPOSE PIM
- dsPIC33CK64MC105-I/PT (48-pin TQFP) based PIM
- Used with the Explorer 16/32 Development Board [DM240001-2]
Overview
This Plug-in Module (PIM) features a 48-pin dsPIC33CK64MC105 Digital Signal Controller (DSC) and can be used for evaluation of the dsPIC33CK64MC10x and dsPIC33CK32MC10x devices with the Explorer 16/32 Development Board (DM240001-2).
The usage of this PIM with the Explorer 16/32 Development Board (DM240001-2) requires an external debugger with support for dsPIC33CK64MC105, which includes MPLAB® ICD 4 (DV164045), PICkit 4 (PG164140), or Snap (PG164140) In-Circuit Debuggers/Programmers. This PIM is not supported by the onboard debugger of the Explorer 16/32 Development Board (DM240001-2).
Package Contents
dsPIC33CK64MC105 General Purpose Explorer 16/32 PIM (MA330052)
