Part Number: HV9911DB4

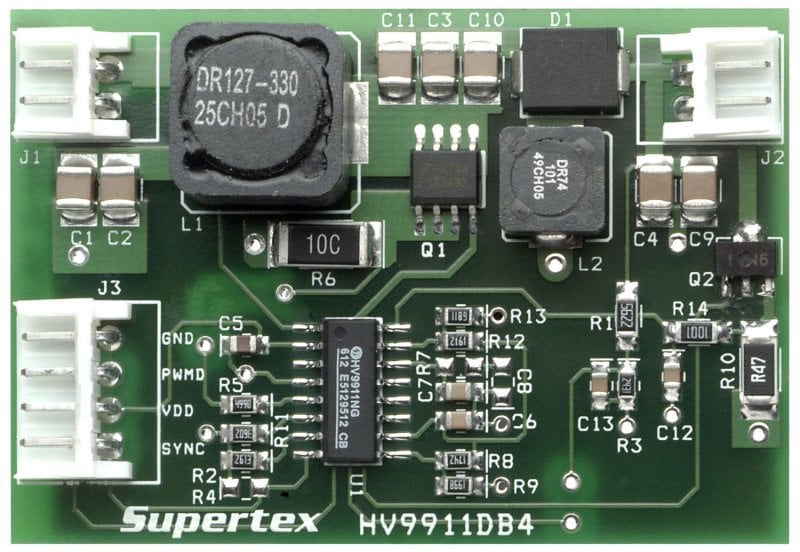

HV9911DB4 - HIGH BRIGHTNESS SEPIC LED DRIVER DEMOBOARD

Please download the user guide for more information.

Overview

The HV9911DB4 is an LED driver dempboard capable of driving one to six three-watt LEDs in series from an input of 9.0 - 16VDC. The demoboard uses HV9911 in a SEPIC topology to drive LED string voltages higher or lower than the input voltage. The converter has a very good initial regulation (+/-5%), and excellent line and load regulation over the entire input and output voltage range (<+/-1%). The full load efficiency of the converter is typically greater than 85%.

PLEASE CONTACT YOUR LOCAL MICROCHIP SALES OFFICE FOR DEMO BOARD AVAILABILITY.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV9911DB4 User Guide Download 0865c0a9-2a0e-4b55-a0c4-923834bcaa05
