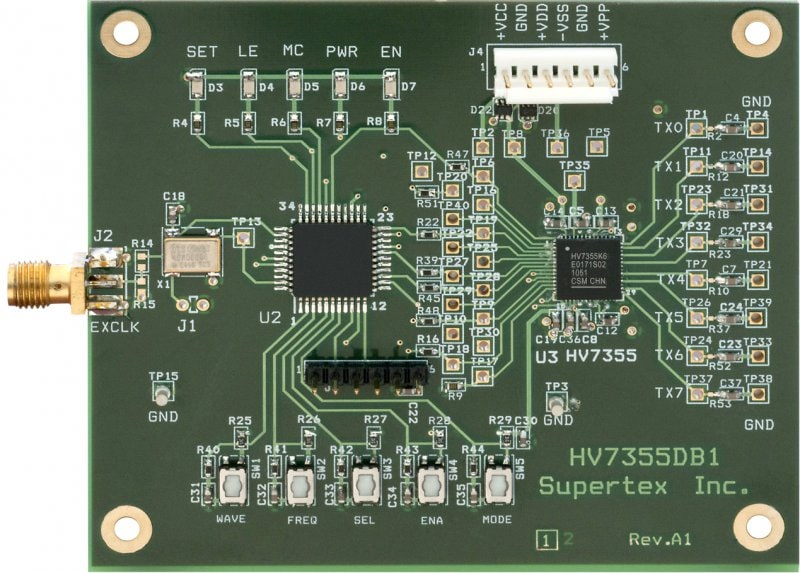

The HV7355 is a monolithic eight-channel, high-speed, high voltage, unipolar ultrasound transmitter pulser. This integrated, high performance circuit is in a single, 8x8x0.9mm, 56-lead QFN package. The HV7355DB1 is used to generate the basic high voltage pulse waveform as an ultrasound transmitting pulser.
Please download the user guide for more information
