Part Number: EVB8710

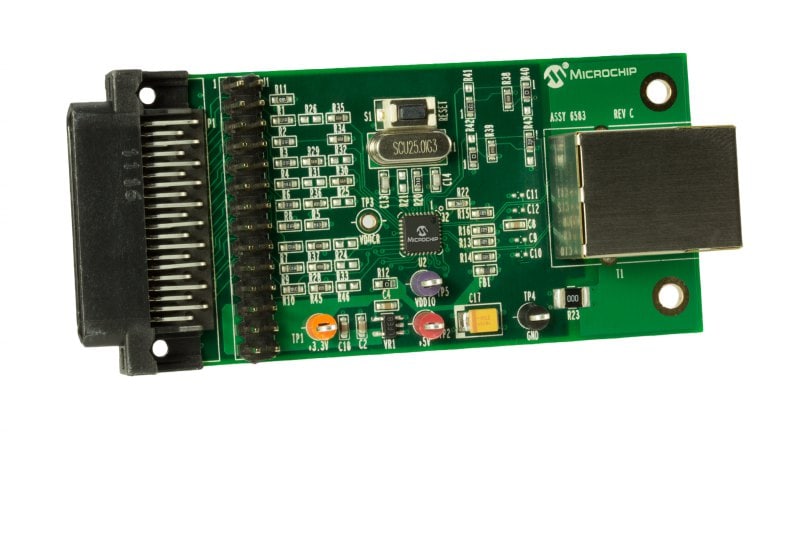

LAN8710A HIGH-SPEED 10/100 ETHERNET TRANSCEIVER CUSTOMER EVALUATION BOARD

The LAN8710 is connected to an RJ-45/Integrated Magnetics Ethernet Jack for 10/100 connectivity.

View Purchasing Options
Contact Us

Overview

The EVB8710 is a PHY Evaluation Board EVB that interfaces a MAC controller to the LAN8710 Ethernet PHY via a standard 40-pin MII connector. The LAN8710 is connected to an RJ-45/Integrated Magnetics Ethernet Jack for 10/100 connectivity.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB8710 Evaluation Board Schematic Download c285e8c0-93e4-46f0-a887-b49ecb9f5ea0
EVB8710 Evaluation Board Schematic, OrCAD Download 74320772-0eb1-43a8-9824-ff4a8c48bc8c
EVB8710 Evaluation Board Bill of Materials Download e0475d68-626d-4291-8a9e-7cb3969f1a5b
EVB8710 Evaluation Board Gerber Files Download cbb0a69b-4321-47cb-91bb-9cadd9e3a115
EVB8710 Evaluation Board User Manual Download 23e9c095-f050-41d8-bf75-44c748272a4e

Silicon Products

Product
Title
Product
Title
LAN8710A 10/100 Base-T/TX Ethernet Transceiver with MII/RMII Interface LAN8710A 10/100 Base-T/TX Ethernet Transceiver with MII/RMII Interface
