Overview
This product is no longer available for sale.

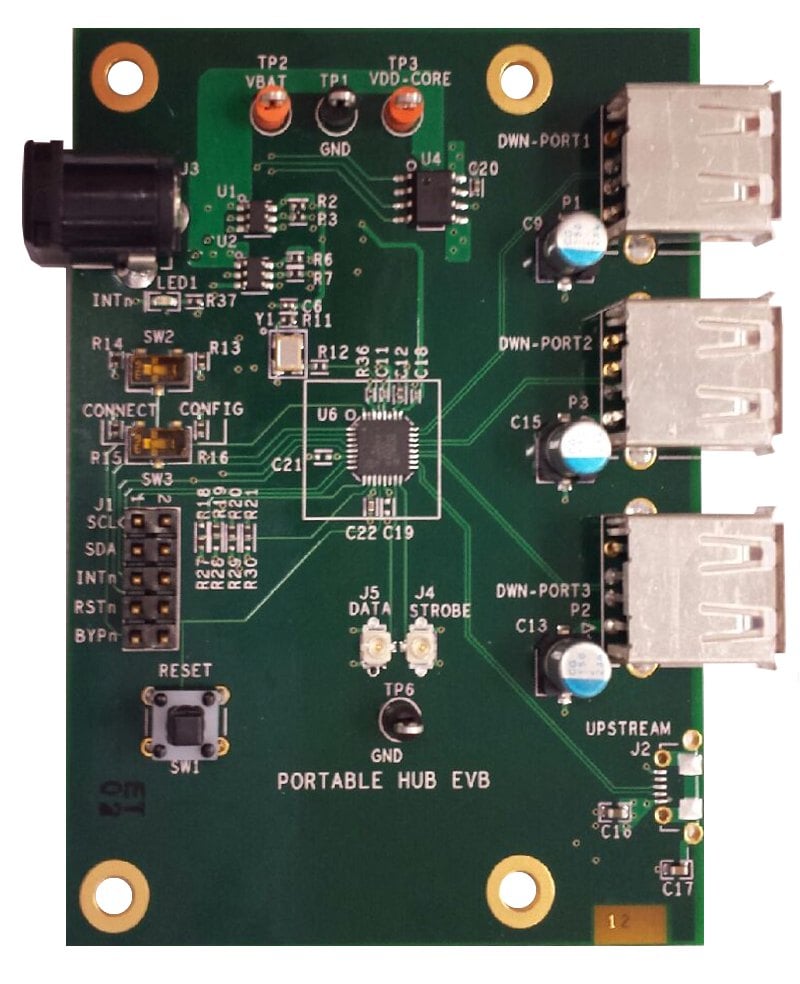

The EVB-USB3503Q is a fully functioning stand-alone USB hub designed for evaluation of the Microchip QFN version of the USB3503 USB 2.0 HSIC high-speed hub controller. This tool also provides access to the USB3503s HSIC upstream port, three USB 2.0 downstream ports and I²C interface. Included evaluation software allows the user to configure and monitor the EVB-USB3503Q when used with a Total Phase Aardvark adapter (not included). This tool is the ideal solution for early USB3503 system integration and software development.
This tool also provides access to the USB3503s HSIC upstream port, three USB 2.0 downstream ports and I²C interface.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EVB-USB3503Q QFN Evaluation Board User Manual | User Guide | Download | ||
| EVB-USB3503Q QFN Evaluation Board Schematic, PDF | Board Design Files | Download | ||
| EVB-USB3503Q QFN Evaluation Board Schematic, OrCAD | Board Design Files | Download | ||
| EVB-USB3503Q QFN Evaluation Board Bill of Materials | Board Design Files | Download | ||
| EVB-USB3503Q QFN Evaluation Board Gerber Files.zip | Board Design Files | Download |
