Part Number: EVB-LAN9252-PICtail

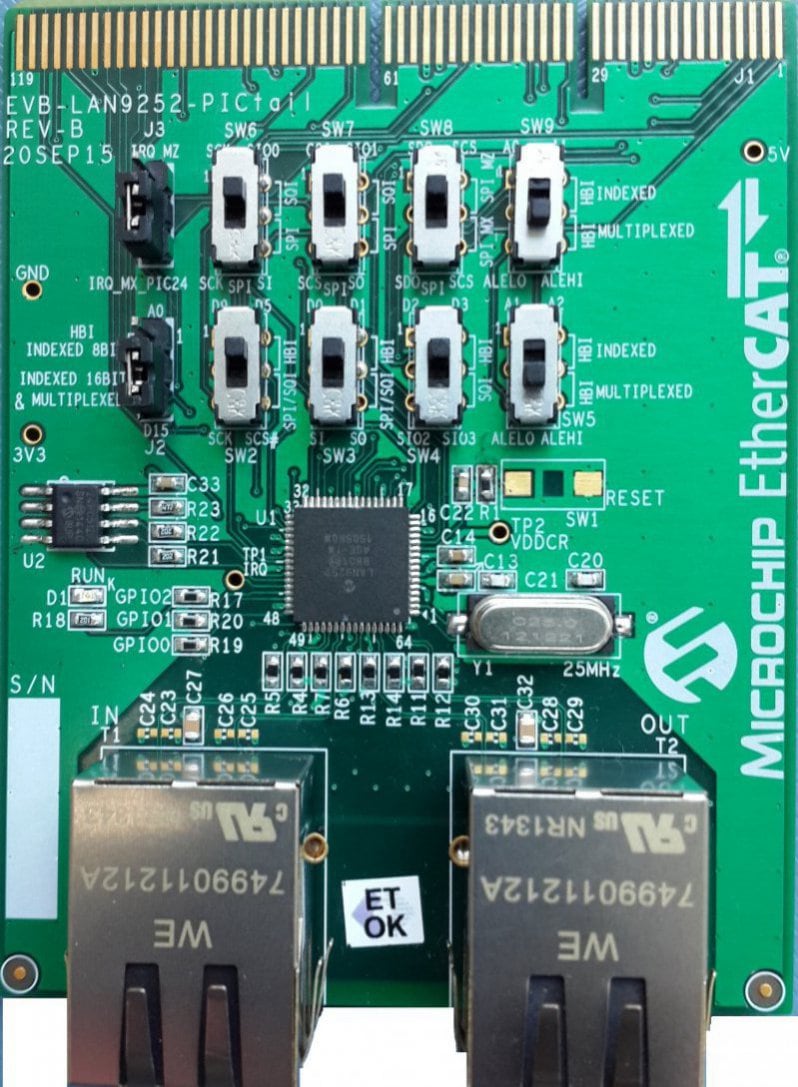

EVB-LAN9252-PICTAIL™ ADD-ON BOARD

  • The EVB-LAN9252-PICtail™ Add-On Board supports option to select HBI PDI and SPI/SQI configurations .
  • The onboard EEPROM to configure the EtherCAT salve configuration
  • The EVB-LAN9252-PICtail™ Add-On Board supports two Integrated PHY's via on board RJ45 Connectors.
View Purchasing Options
Contact Us

Overview

EVB-LAN9252-PICtail™ Add-On Board is used for evaluating Microchip Technology’s LAN9252, a 2/3-port EtherCAT® slave controller with dual integrated Ethernet PHYs. It is an expansion board compatible with Explorer 16 development platform.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB-LAN9252 PICTAIL Gerber Download 1348cd91-c626-4eb0-8f76-5143969ca3d2
EVB-LAN9252-PICTAIL-Board Design Files-DSN-Rev-B Download 4d3732eb-d070-4baf-9b1e-69ad87cad0e6
EVB-LAN9252-PICTAIL-Schematics-Rev-B Download c92d80ac-296f-4817-8f91-e6fa5a86daf4
EVB-LAN9252-PICTAIL BOM Rev B Download b3e800a4-898b-420e-bb05-84fefc343ff7
EVB-LAN9252-PICtail Add-On Board User’s Guide Download c623d136-d2a5-4d9f-b61a-a6686fa19226

Software

Title
Date
board-support-package-for-evb-lan9252-pictail 01 Jul 2022 Link

Silicon Products

Product
Title
Product
Title
LAN9252 EtherCAT controller with dual integrated Ethernet PHYs LAN9252 EtherCAT controller with dual integrated Ethernet PHYs
