1365-evb-lan9252-add-on
1365-evb-lan9252-add-on

Part Number: EVB-LAN9252-ADD-ON

LAN9252 – ADD-ON FOR EL9800 DEVELOPMENT PLATFORM

  • The EVB-LAN9252-DIGIO supports option to select DIG-IO PDI and SPI configurations .
  • Onboard EEPROM to configure the EtherCAT slave configuration (ESC)
  • The EVB-LAN9252-ADD-ON provides two Integrated PHY's via on board RJ45 8P8C Connectors.
View Purchasing Options
Contact Us

Overview

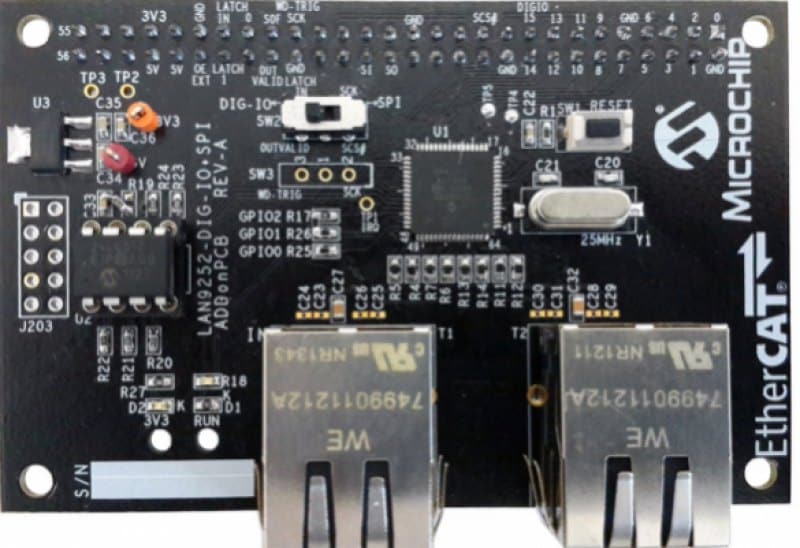

EVB-LAN9252-ADD-ON is designed to be used as an add-on board (ESC board) with the Beckhoff EL9800 or EL9820 EtherCAT evaluation platform. This board supports the SPI and DIGIO PDI modes of operation.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB-LAN9252-ADD-ON Gerber Download 562de516-0c6a-405f-a40a-bcf6171118b9
EVB-LAN9252-ADD-ON-Board Design Files-DSN-Rev-C Download 53d27d05-7dbd-4042-8902-5290915a6248
EVB-LAN9252-ADD-ON-Schematics-Rev-C Download 107e1b0c-46d1-48d9-9782-5dc33ad86c40
EVB-LAN9252-ADD-ON BOM Rev C Download 78f90d99-51b0-4291-b20f-ab23f88784d0
EVB-LAN9252-ADD-ON for Beckhoff EL9800 User’s Guide Download 620b7262-b613-4ae5-a70a-42e3574d03dd
EVB-LAN9252-ADD-ON Board Software Quick Start Guide Download f6df8686-fc04-45f1-9e1e-f416894334b0

Software

Title
Date
board-support-package-for-evb-lan9252-add-on 01 Jul 2022 Link

Silicon Products

Product
Title
Product
Title
LAN9252 EtherCAT controller with dual integrated Ethernet PHYs LAN9252 EtherCAT controller with dual integrated Ethernet PHYs
