Overview

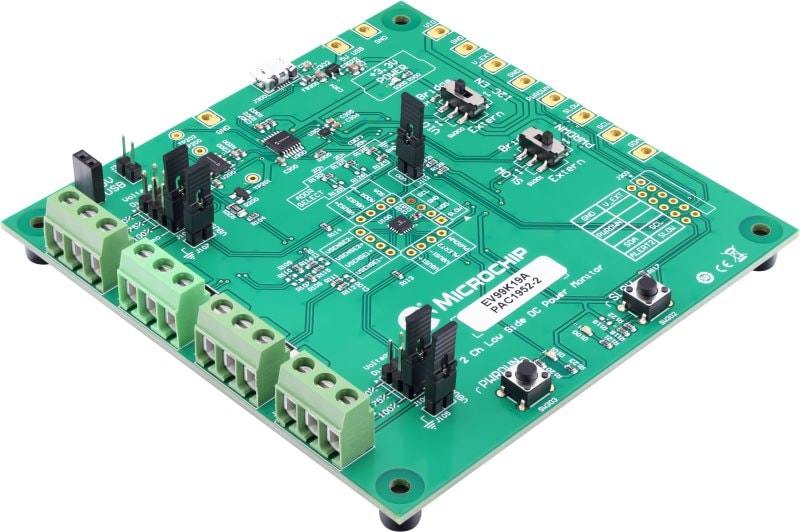

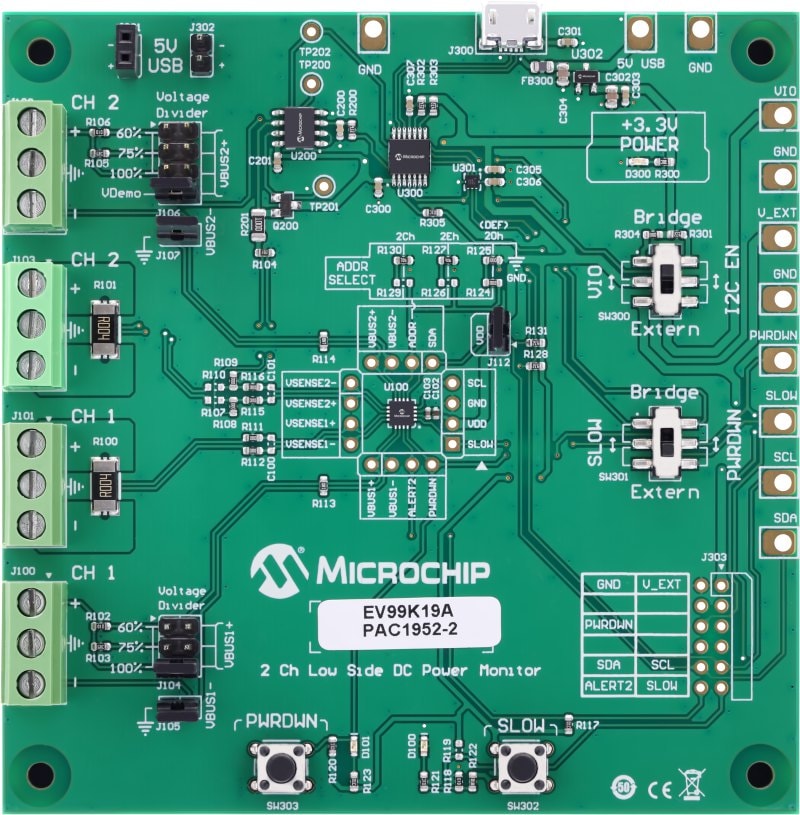

This board enables easy connection of the PAC1952 to power sources and loads for power monitoring and energy metering using on board 4mOhm high side current sensing resistors. It has USB connection to PC and a GUI to display the data, as well as options to disconnect the PC and communicate directly with a different host controller. Both channels have a voltage divider selector that allows the measurement of voltages above 32V. Channel 1 also has a demo voltage source controlled from the GUI.
- 2 low side measurement channels with 4mOhm shunts routed with Kelvin connection
- I2C to USB bridge on board
- Demo Voltage generator on board
- Voltage divider selector for 100%, 75% and 60%
- Test header to measure PAC1952 power consumption
- Test points on all pins of the PAC1952
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EV99K19A/EV97L33A Rev2 Design Files | Board Design Files | Download | ||
| EV99K19A/EV97L33A Rev2 3D PDF | Board Design Files | Download | ||
| PAC194x/PAC195x Demo Application (v1.0.2.6) | Software Tools | Download | ||
| PAC194x/5x Python Library and Application (V1.1.0) | Software Libraries and Firmware | Download | ||
| PAC1952-2-Evaluation-Board-User-Guide | User Guide | Download |
