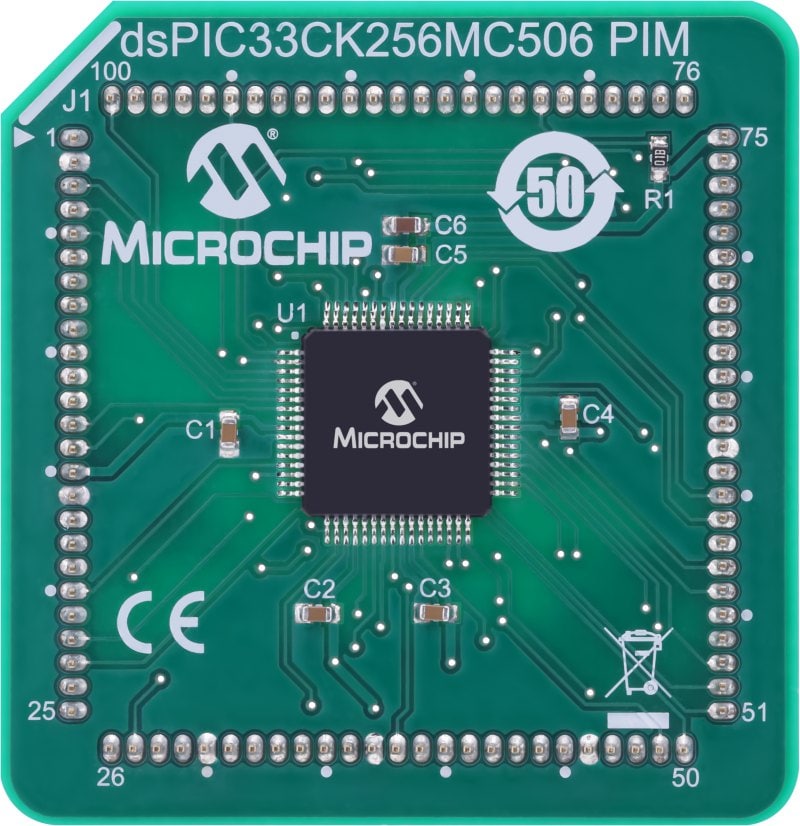

221018-mc16-photo-ev16e47a-front-transparent

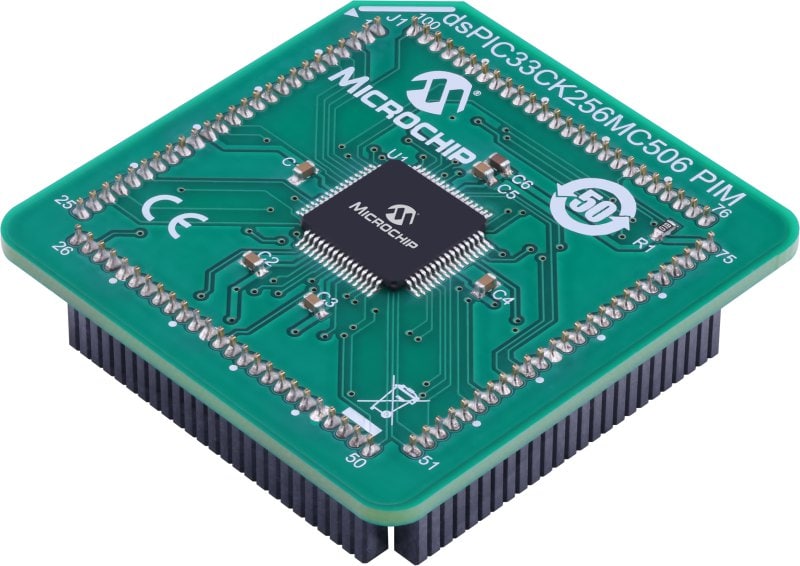

221018-mc16-photo-ev16e47a-angle-transparent
221018-mc16-photo-ev16e47a-front-transparent
221018-mc16-photo-ev16e47a-angle-transparent

Part Number: EV16E47A

dsPIC33CK256MC506 General Purpose PIM

  •  dsPIC33CK256MC506-I/PT (64-pin TQFP) based PIM
  • Used with the Explorer 16/32 Development Board [DM240001-2]
View Purchasing Options
Contact Us

Overview

This Plug-in Module (PIM) features a 64-pin dsPIC33CK256MC506 Digital Signal Controller (DSC) and can be used for evaluation of the dsPIC33CK256MC50x, dsPIC33CK128MC50x, dsPIC33CK256MC10x and dsPIC33CK128MC10x devices with the Explorer 16/32 Development Board (DM240001-2).

The usage of this PIM with the Explorer 16/32 Development Board (DM240001-2) requires an external debugger supporting the dsPIC33CK256MC506 family such as MPLAB® ICD 4 (DV164045), PICkit 4 (PG164140), or Snap (PG164140) In-Circuit Debuggers/Programmers. This PIM is not supported by the on-board debugger of the Explorer 16/32 Development Board (DM240001-2).

Package Contents
  • dsPIC33CK256MC506 General Purpose Explorer 16/32 PIM
