Overview

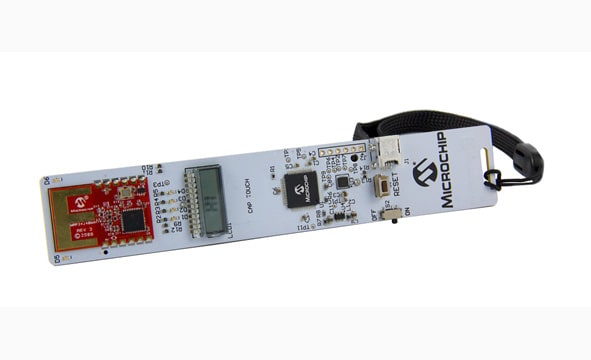

Microchip’s PIC18F67J94 Development Board (Part# DM183037) is powered by a PIC18F67J94 microcontroller with on-board USB functionality and includes an MRF24J40MA 2.4GHz wireless transceiver. The development board demonstrates many of the strengths of the PIC18F97J94 product family.
The PIC18F67J94 Development Board puts you on the road to developing everything from interactive gaming to low-energy appliances. Extremely low power consumption combined with a host of peripherals make the PIC18F97J94 product family ideal for portable, battery-powered applications. The ability to direct-drive large numbers of LCD segments creates rich user interfaces at a value cost. Processing power (16 MIPS) combined with multiple interface options (SPI, UART, I2C®, USB®) allow this product family to serve as the centerpiece of your technologically innovative product.
- Direct-drive LCD display (drives 4-common Lumex display)
- USB connectivity with built-in USB HID-based bootloader
- Battery powered with single 1.5V AA
- MCP1640 boosts 1.5V to 3.0V
- MRF24J40MA - 2.4 GHz IEEE 802.15.4 radio transceiver
- 3-axis accelerometer communicates via SPI interface
- Capacitive touch sensing button
- Low battery indication
- Multiple LED’s (4 blue, 4 red)
- Demo – interactive dance game – watch video below
The PIC18F67J94 Development Board offers the following supporting collateral:
- Bill of Materials
- Schematic
- Tech Brief TB3094
- Fully editable ‘C’ source code for dance demo
Microchip’s PIC18F67J94 Development Board (Part# DM183037) is powered by a PIC18F67J94 microcontroller with on-board USB functionality and includes an MRF24J40MA 2.4GHz wireless transceiver. The development board demonstrates many of the strengths of the PIC18F97J94 product family.
The PIC18F67J94 Development Board puts you on the road to developing everything from interactive gaming to low-energy appliances. Extremely low power consumption combined with a host of peripherals make the PIC18F97J94 product family ideal for portable, battery-powered applications. The ability to direct-drive large numbers of LCD segments creates rich user interfaces at a value cost. Processing power (16 MIPS) combined with multiple interface options (SPI, UART, I2C®, USB®) allow this product family to serve as the centerpiece of your technologically innovative product.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC18F67J94 Development Board Firmware | Software Libraries and Firmware | Download | ||
| PIC18F67J94 Dev Board BOM | Board Design Files | Download | ||
| PIC18F67J94 Dev Board Schematic | Board Design Files | Download | ||
| PIC18F67J94 Development Board | Tech Brief | Download |
