Part Number: DM173001

PICDEM 17

User Guide: Download User Guides

Overview

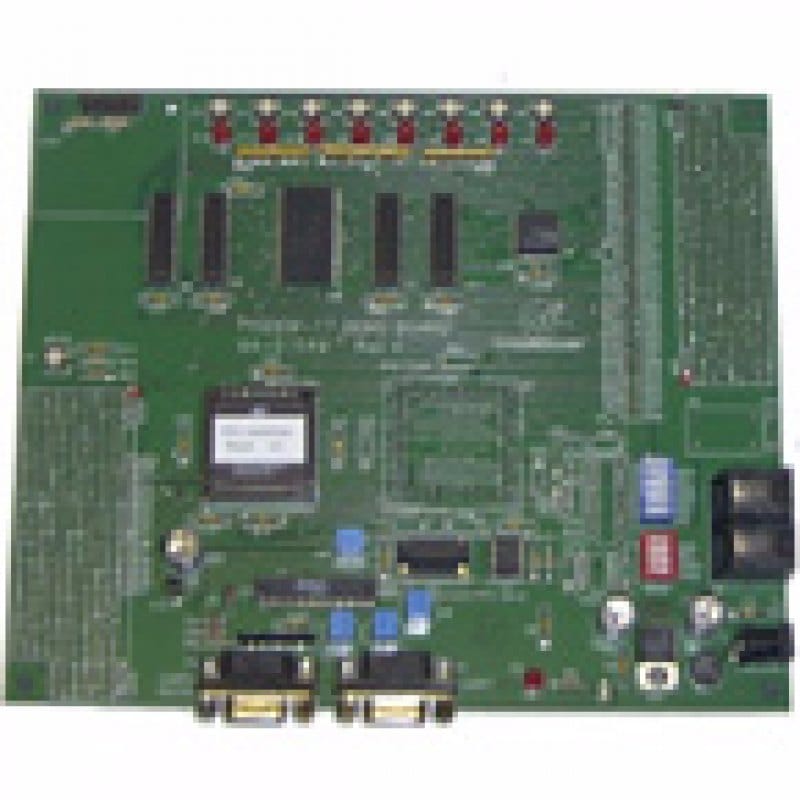

The PICDEM™ 17 is an evaluation board that demonstrates the capabilities of several Microchip microcontrollers, including PIC17C752, PIC17C756, PIC17C762 and PIC17C766.

Hardware:

  • 68-pin PLCC socket
  • Space for 84-pin socket
  • RS-232 interface with DB9 connector for USART1
  • RS-232 interface with DB9 connector for USART2 with hardware handshaking signals
  • Precision analog voltage source and reference for 10-bit A/D
  • MCP2510 CAN interface support

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
MPLAB® ICD User Guide Errata User Guide Download
PICDEM™ 17 Code User Guide Download
PICDEM™ 17 Demonstration User's Guide User Guide Download
PICDEM™ 17 External LDO Errata Errata Download
