Overview
The BB15L61A Small Signal Sensor Building Block Solution (BBS) Kit contains several analog and mixed signal devices configured in separate BBS boards for easy evaluation and implementation in system level applications.
This kit features the following BBS boards:
- BB88G26A: MCP3564R - 8-Channel, 153.6 ksps, Low Noise 24-Bit Delta-Sigma ADC with Internal Voltage Reference
- BB03Y14A: MCP33131-10 - 1 Msps 16-Bit Single-Ended Input SAR ADC
- BB65K12A: MCP9804 - ±0.25°C Typical Accuracy Digital Temperature Sensor
- BB93Z17A: MCP9700B - Low-Power Linear Active Thermistor
- BB54X40A: MCP6444 - 450 nA, 9 kHz Op Amp Configured as a Three Op-Amp INA
- BB28C14A: MCP6N16 - Zero-Drift Instrumentation Amplifier
- BB61S86A: MCP6481/MCP6491 – 4/7.5 MHz, Low-Input Bias Current Op Amps, Configured as an amplifier, low pass filter, and high pass filter

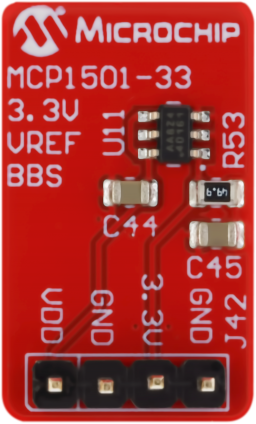

- BB17J62A: MCP1501-33 – 3.3V High-Precision Buffered Voltage Reference
