Overview

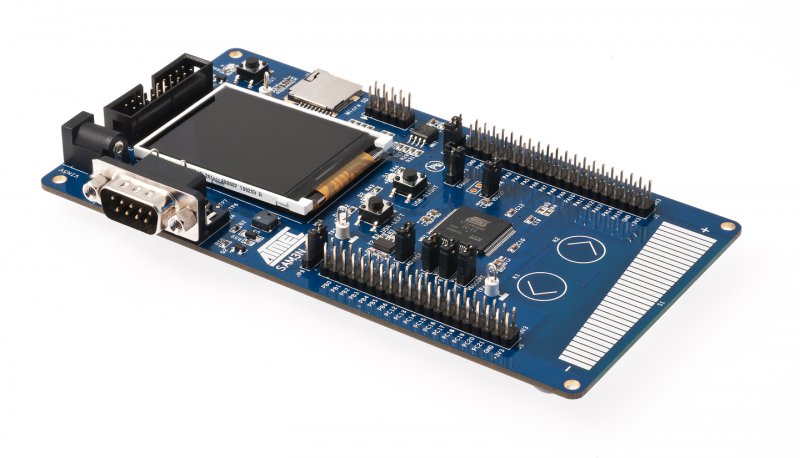

The SAM3N Evaluation Kit (SAM3N-EK) enables evaluation capabilities and code development of applications running on a SAM3N device.
- The SAM3N-EK includes many hardware peripherals such as:
- 32-Megabit Serial DataFlash??
- 2.0 inch TFT color LCD display with backlight
- UART port with level shifter IC
- Micro SD interface
- Reset buttons: NRST
- User buttons: Left and Right
- QTouch?? buttons: Left, Right, and Slider
- JTAG port
- On-board power regulation
- Two user LEDs
- Power LED
- ZigBee?? connector
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| SAM3N-EK Design & Manufacturing Files - Bundle containing all the schematics, PCB and test files for all the kit versions | Miscellaneous | Download | ||
| SAM3N-EK | User Guide | Download | ||
| SAM3N-EK Demo Release Notes | Miscellaneous | Download | ||
| SAM3N-EK Design & Manufacturing Files Information - Kit versioning history and information, plus bundle contents description. | Miscellaneous | Download |
| Tool Details |
|---|
The ?? QTouch?? Library is a royalty-free software library (GCC and IAR) for developing touch applications on standard AT91SAM and AVR?? microcontrollers.
|
|
The QTouch Studio is a PC application providing real-time visualization of the QTouch debug data stream sent from supported development and evaluation boards:
|
