Overview
ATM90E26 Single-Phase Energy Metering Demo Board is used for the demo and testing of ATM90E26 (single-phase energy metering AFE chip), which can sample single-phase voltage and current, meter active/reactive energy and output active/reactive energy pulses accordingly, as well as measure parameters such as voltage, current and power.
The AFE Control Board - SAM4C communicates with and controls the AFE board, providing easy access to evaluate the energy metering chips.
AFE Board
- ATM90E26: single-phase energy metering AFE chip
- Voltage sampling: resistor divider network
- Current sampling
- Shunt resistor or Current Transformer (CT) for L line current
- Current Transformer (CT) for N line current
- Energy pulses
- Active energy pulse indicator and isolated output
- Reactive energy pulse indicator and isolated output
- One communication connector
- Crystal: 8.192MHz
- Power supply for demo board
- AC 100V-240V line voltage input
- DC 9V power input
- External 3.3V input
Control Board
- SAM4C microcontroller
- Two possible power sources
- External DC9V
- External 3.3V from the daughter board
- Digital I/O
- Five mechanical buttons
- One reset button
- Two switch buttons for display (including forward and backward button)
- Two wake up buttons (one is FWUP, the other is TMP0)
- One extension header
- One communication connector
- Five mechanical buttons
- Segment LCD display
- Five types of communication interfaces
- One USB
- One RS485
- One RS232
- One Infrared Radiation (IR)
- One Optical Infrared Radiation (OIR)
- One EEPROM
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| ATM90E2x-DB Quick Start Guide | User Guide | Download | ||
| ATM90E2x-DB User Guide | User Guide | Download | ||
| ATSAM4C-CB Control Board User Guide | User Guide | Download | ||
| ATM90E2x Demo Board Design Documentation | Board Design Files | Download | ||
| ATM90Exx Auto Calibration | Board Design Files | Download |
| Tool Details |
|---|

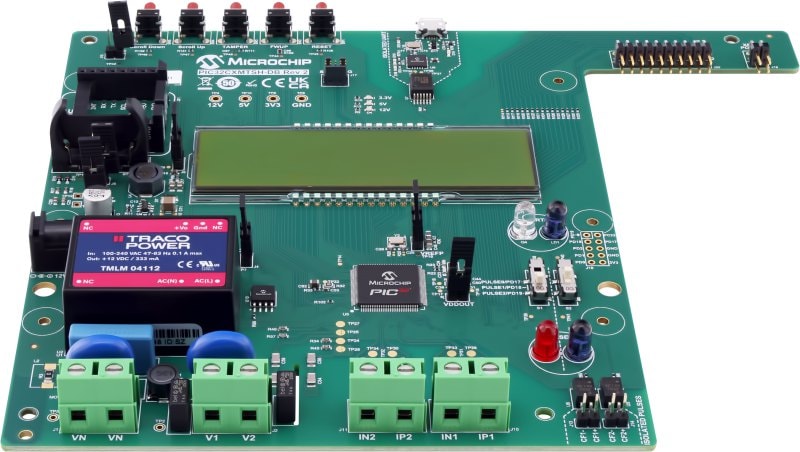

The PIC32CXMTG-EK lets designers quickly evaluate and develop code for smart energy applications built around a single-core Arm® Cortex®-M4F processor, running at a maximum frequency of 200 MHz and embedding up to 2 Mbytes of Flash and 512 Kbytes of SRAM.
|
