Overview

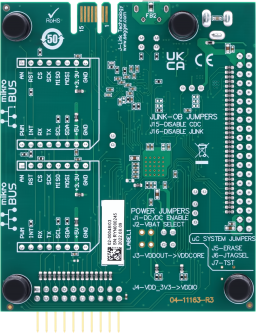

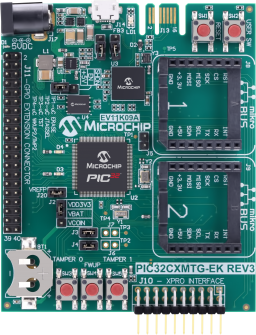

The PIC32CXMTG-EK lets designers quickly evaluate and develop code for smart energy applications built around a single-core Arm® Cortex®-M4F processor, running at a maximum frequency of 200 MHz and embedding up to 2 Mbytes of Flash and 512 Kbytes of SRAM. PIC32CXMTG high processing power, high memory footprint, low-power and advanced embedded security make it well suited for application such as communication modules and split meter systems.
- On-Board Debugger: J-Link OB:
- UART debug
- SWD mode
- Jumper for ERASE signal
- Two mikroBUS sockets:
- Socket for SPI, PWM, UART and analog input in accordance with mikroBUS standard
- One Xplained PRO EXT connector for extension boards, like ATREB233-XPRO, ATREB215-XPRO, ATOLED1-XPRO and PL460-EK
- User Interface:
- Five mechanical user buttons
- One green and one blue user LED
- Power supplies:
- USB or DC-Jack
- 3V coin cell battery holder
- Power-on red LED
- Jumpers on relevant power supply rails to allow current consumption measurements
- Memory:
- 64-Mbit Quad IO SPI Flash
- Peripherals:
- Most GPIO/Peripheral IOs not used for the mikroBUS and Xplained PRO Extension are made available in an I/O expander connector
Cannot load image!
