300-ard00386
300-ard00386

Part Number: ARD00386

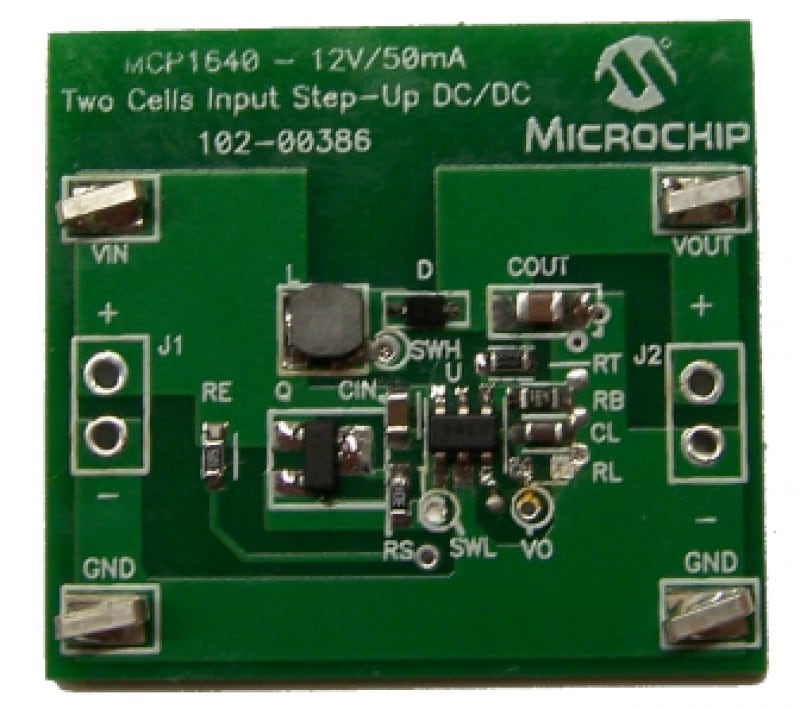

MCP1640 12V/50MA TWO CELLS INPUT BOOST CONVERTER REFERENCE DESIGN

Input Voltage: Two Alkaline or Lithium Cells, 2.0-3.0V Typical
- Supports extended input range of 2.0V-5.0V

  • Output capability:
    - 12V/50 mA typical @ 2.0V input
    - 12V/70 mA @ 3.3V input
  • No Load Input Current: 0.2 mA @ 3.0V input
  • Efficiency: Up to 75%
  • PWM Operation at 500 kHz

    • View Purchasing Options
    Contact Us

    Overview

    The MCP1640 12V/50 mA Two Cells Input Boost Converter Reference Design is designed to demonstrate the MCP1640 device’s high-voltage boost capability above its typical output range of 5.5V. This board boosts the low-voltage input to 12V and up to 70 mA load. By changing specific resistors, a lower/higher output than 12V can be obtained. The MCP1640 Input Boost Converter was developed to help engineers reduce product design cycle time. At 2.0V input and 12V output, the board is capable of a maximum of 50 mA load current.

    Package Contents

    The MCP1640 12V/50 mA Two Cells Input Boost Converter Reference Design is designed to demonstrate the MCP1640 device’s high-voltage boost capability above its typical output range of 5.5V. This board boosts the low-voltage input to 12V and up to 70 mA load. By changing specific resistors, a lower/higher output than 12V can be obtained. The MCP1640 Input Boost Converter was developed to help engineers reduce product design cycle time. At 2.0V input and 12V output, the board is capable of a maximum of 50 mA load current.

    To view this video, please click manage cookies below and accept functional cookies.
    Manage Cookies

    All Application Notes

    Documentation

    Title
    Document Id
    MCP1640/B/C/D Data Sheet Download 1e39f88c-940e-4c22-8141-58d1f1dc15fd
    MCP1640 12V/50mA Two Cells Input Boost Converter Ref Des (ARD00386) BOM Download 1ea6d87d-c8e0-473a-b7f8-5619ea18c980
    MCP1640 12V/50mA Two Cells Input Boost Converter Ref Des (ARD00386) Gerbers Download d53dd7ff-2ed5-4215-9412-db2d581cb851
    MCP1640 12V/50mA Two Cells Input Boost Converter Ref Des (ARD00386) Schematic Download 57788bf3-0df9-494b-a440-6ee356c89a23

    Application Notes

    Title
    Date
    Document Category
    Single Cell Input Boost Converter Design 26 Feb 2010 Link Application Notes
