Overview

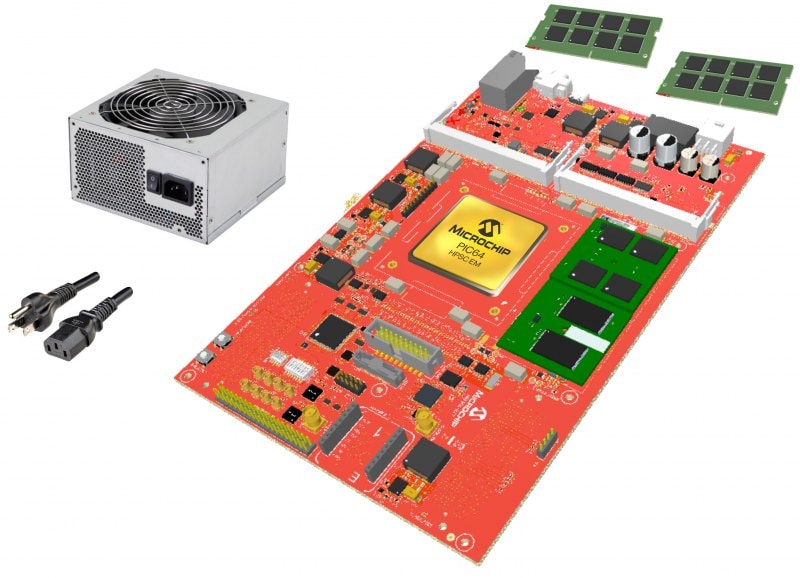

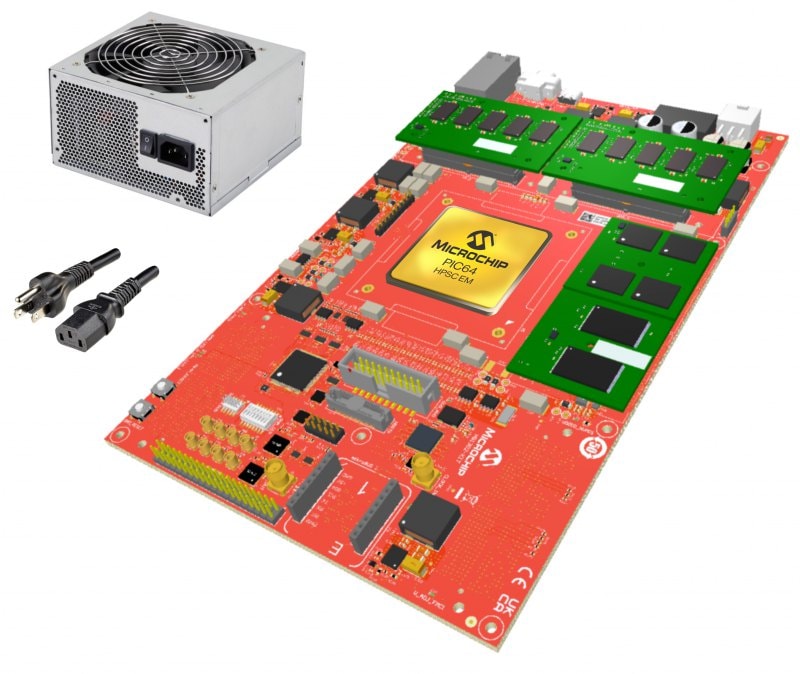

The PIC64-HPSC Base Kit 2, which features Microchip’s 64-bit RISC-V microprocessor PIC64-HPSC EM, two 80-bit DDR4 memory DEECE, and two NVRAM devices that can be used for general hardware evaluation and software development for designs using the PIC64-HPSC microprocessor (MPU). Up to two Peripheral Daughter Cards (PDCs) can be connected to the PIC64 HPSC Base Card via FMC+ connectors. Key capabilities enabled by the PDCs include:
- Access to the Ethernet Switch and endpoints or Coax connections.
- PCIe® connectivity
- SpaceWire connectivity
Two different PIC64-HPSC Accessory NVRAM Cards are available as add-on components to the PIC64-HPSC Base Kit. One of each is included in the PIC64-HPSC Base Kit. You can order two additional Accessory NVRAM Cards, one of each type, to fully populate the PIC64-HPSC Base Kit.
Order Number |
Name |
Description |
HB1340-KIT-PDC |
10-Port SFP+ 1 GbE/10 GbE |
10 SFP+ 1 GbE/2.5 GbE/5 GbE/10 GbE |
HB1341-KIT-PDC |
16-Port Ethernet RJ45 |
16 - 10/100/1000 Mbps Ethernet Ports |
| HB1343-KIT-PDC | 4-Port LVDS repeater | 4 Micro-DB9 connectors with LVDS repeater suitable for SpaceWire |
HB1344-KIT-PDC |
FMC+ High-Speed Loopback |
Loopback on high-speed ports |
HB1345-KIT-PDC |
FMC+ High-Speed Breakout |
SMB access to high-speed ports (Ethernet Switch and Endpoints) |
HB1346-KIT-PDC |
FMC+ PCIe* Adapter – Female |
Female PCIe (CEM) connector to Base Card |
HB1347-KIT-PDC |
FMC+ PCIe* Adapter – Male |
Male PCIe (CEM) connector to Base Card |
HB1363-KIT-ACC |
Accessory 500 MB NOR PFlash |
500 MB NOR Parallel Flash Memory Card |
HB1364-KIT-ACC |
Accessory 32 GB NAND Flash |
32 GB NAND Flash Memory Card |
*HB1346-KIT-PDC and HB1347-KIT-PDC are not necessary if using the HB1304-KIT.
Contact Microchip sales office for purchasing information.
Hardware Interfaces:
- Two 80-bit DDR4 (DEECE) custom connectors
- Two FMC+ connectors to support up to two PDCs
- One mikroBUS™ connector
- One Raspberry Pi® connector
- One Time Sensitive Networking (TSN) capable Gigabit Ethernet endpoint (RJ45)
- One SpaceWire port
- One USB-UART
- One high-speed trace port
- Four connectors for NVRAM memory cards
- One PIC64-HPSC Base Card 2 with one PIC64-HPSC 1000-EM device
- Two custom 80-bit DDR4 DEECE Memory Modules
- One 500 MB NOR Parallel Flash Memory Card
- One 32 GB NAND Flash Memory Card
- One ATX power supply
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC64-HPSC Evaluation Platform Sell Sheet | Sell Sheets | Download |
| Tool Details |
|---|

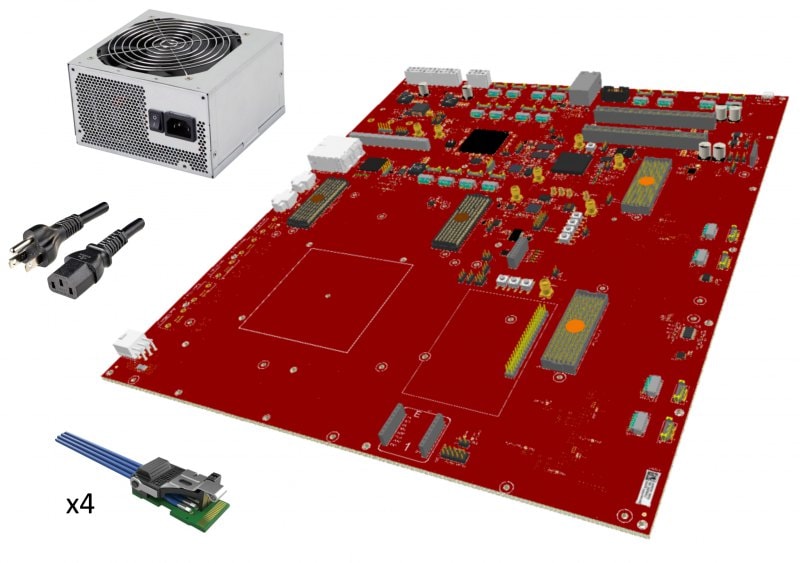

The PIC64-HPSC Base Kit 1 provides a cost effective method for you to develop hardware and software applications utilizing the PIC64-HPSC 64-bit microprocessor (MPU).
|
The PIC64-HPSC Expansion Kit enables you to expand the I/O Capability beyond what a Base Kit 1 or Base Kit 2 can alone. It is a cost effective method to expand more capabilities using the PIC64-HPSC 64-bit microprocessor (MPU).
|
