Overview
This product is being phased out and replaced by ATSTK600.

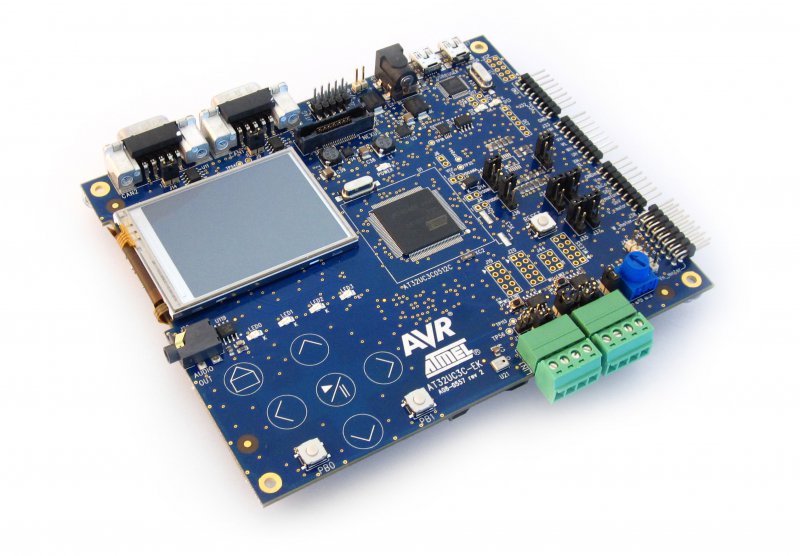

Evaluation kit and development board for the 32-bit AVR AT32UC3C0512C microcontroller featuring Floating-point Unit (FPU), dual CAN interfaces, dual LIN interfaces, Motor Control PWM and ADC, USB OTG, Peripheral Event System and true 5V I/O.
The UC3C-EK kit facilitates development and makes it easy to evaluate the full potential of the AVR UC3C series.
As a development system, the board provides on-board memory, USB communication interface, CAN and LIN network interfaces and the JTAG programming and debugging interface.
- Supports the AT32UC3C0512C
- Compatible with the MC3xx series of motor control boards
- QVGA (320x240) Full Color LCD display
- Sensors: Light, Temperature, Microphone
- Connectors for dual CAN, dual LIN, JTAG, Nexus, USB device and embedded host, SD card, MMC
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Atmel AVR32919: UC3C Evaluation Kit - The Atmel AT32UC3C-EK is an evaluation kit and development system for the Atmel AVR AT32UC3C0512C microcontroller. | User Guide | Download | ||
| AVR32831: AVR UC3C Scope Meter and Filtering Demonstration | Application Notes | Link | Download | |
| AVR32798: EXTBT User Guide | Application Notes | Link | Download | |
| AVR4030: AVR Software Framework - Reference Manual | Application Notes | Link | Download | |
| AVR32806: AVR UC3 USB DFU Boot Loader, Version 1.1.0 and Higher | Application Notes | Link | Download | |
| AVR32907: AT32UC3C-EK Getting Started Guide | Application Notes | Link | Download | |
| AVR4029: Software Framework - Getting Started | Application Notes | Link | Download | |
| AT32UC3C-EK Schematics | Board Design Files | Download |
