Part Number: ADM00873-BNDL

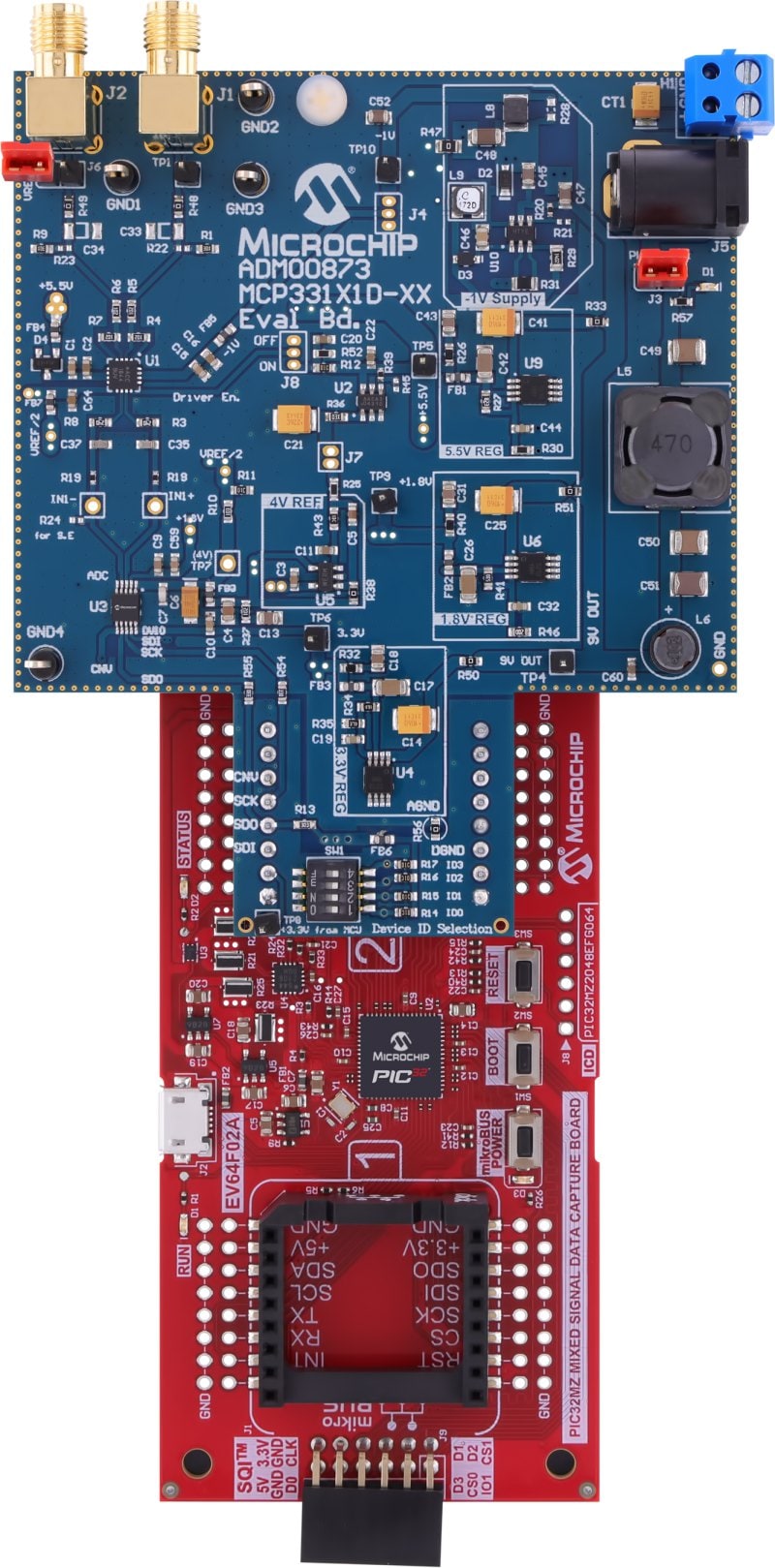

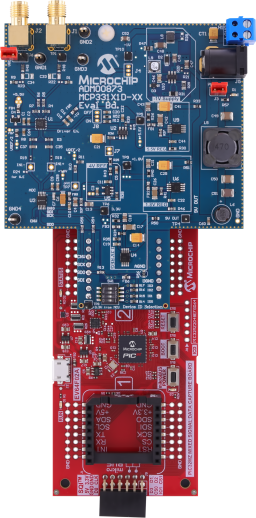

ADM00873-BNDL - 1 MSPS SAR ADC EVALUATION KIT

Download Primary User Guide

The ADM00873 Rev2 kit comes with EV64F02A - PIC32MZ MXS Data Capture Board, pre-programmed to work with ADC Evaluation GUI 3.2.0, which can be downloaded from the ADM00873 board page along with other board related files.

View Purchasing Options
Contact Us

Overview

The 1 Msps SAR ADC Evaluation Kit (ADM00873-BNDL) includes all tool sets needed to evaluate the MCP33131D-10 16-bit 1 Msps Differential SAR A/D converter.

Package Contents
  • ADM00873-Rev2 - MCP331x1x-xx 1 Msps SAR ADC Evaluation Board
  • 9V Power Supply
  • EV64F02A - PIC32MZ Data Capture Board (Pre-Programmed to work with ADC Evaluation GUI 3.2.0)
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

ADM00873

MCP331X1D-XX EVALUATION BOARD

The MCP331X1D-XX Evaluation Board (ADM00873) can be used to evaluate the performance of the MCP331x1x-xx SAR ADC device family.
