196-adm00375
196-adm00375

Part Number: ADM00375

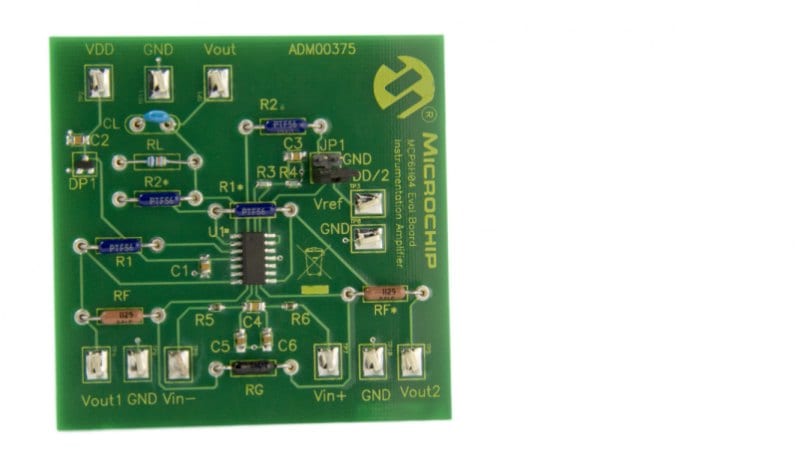

MCP6H04 EVALUATION BOARD



  • All amplifier resistors and capacitors are socketed
  • Test points are available for connection to lab equipment
  • Utilizes a single supply configuration
  • Supports a maximum of 16V power supply

    •

    Overview

    The MCP6H04 Evaluation Board is intended to support an instrumentation amplifier and show the capability of the MCP6H04 operational amplifier. It uses a quad op amp in a difference amplifier configuration with input buffers and voltage reference. The test points for the power supply, ground, input signals, output signals, and voltage reference allow lab equipment to be connected to the board.

    Devices Supported: MCP6H04

    To view this video, please click manage cookies below and accept functional cookies.
    Manage Cookies

    All Application Notes

    Documentation

    Title
    Document Id
    SPICE Model for MCP6H01/2/4 Devices Download 482f594f-1001-4629-93db-04938e01ae6e
    MCP6H04 Evaluation Board (ADM00375) BOM Download 2d53835a-1026-419f-a2af-e52c354e15ac
    MCP6H04 Evaluation Board (ADM00375) Gerbers Download d44378a3-90a2-4b01-a290-333812718dbf
    MCP6H04 Evaluation Board (ADM00375) Schematics Download 3e3732a6-33fd-459c-be1e-d8a75e13bfb2
    MCP6H01/2/4 Data Sheet Download 8361cb6a-da06-4ffc-8718-680d461e7bad
    MCP6H04 Evaluation Board User's Guide Download 6cf4ea28-0a5f-41e3-b2f4-81af2a3375f9

    Application Notes

    Title
    Date
    Document Category
    Current Sensing Circuit Concepts and Fundamentals 30 Aug 2011 Link Application Notes
