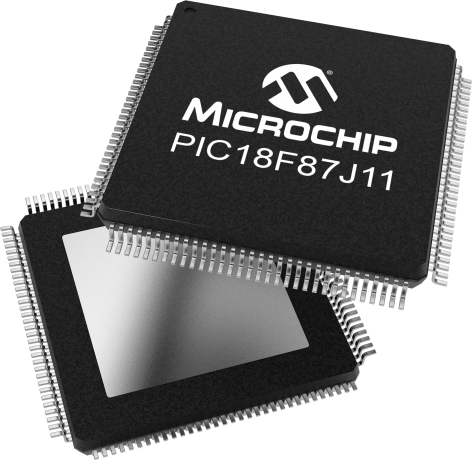

PIC18F87J11

In Production

Ideal for 3V applications that are cost senstitive, requiring flexible serial communication with four serial ports: double synchronous serial ports (I²C™ and SPI™) and double asynchronous serial ports. Large amounts of Flash program memory make it ideal for instrumentation panels, TCP/IP enabled embedded applications as well as metering, industrial control and monitoring applications. The PIC18F87J11 is an enhancement to the PIC18F87J10 family, including an internal 8MHz oscillator, lower power and improved EEPROM emulation via word Flash write capabilities.



    Features

        • 48 MHz and 12 MIPS at 3V
        • Flash 10,000 endurance, 20 years retention
        • 2.0 - 3.6V voltage range
        • 5V tolerant digital inputs
        • Enhanced ICD with 3 HW breakpoints
        • Internal 8MHz oscillator
        • nanoWatt technology
        • Parallel Master Port (PMP)
    Parameter Name
    Value
    Program Memory Type
    Flash
    Program Memory (KB)
    128
    CPU Speed (MIPS)
    12
    RAM Bytes
    3,904
    Digital Communication Peripherals
    2-UART, 2-SPI, 2-I2C2-MSSP(SPI/I2C)
    Capture/Compare/PWM Peripherals
    5 Input Capture, 2 CCP, 3 ECCP,
    Timers
    2 x 8-bit, 3 x 16-bit
    ADC
    12 ch, 10-bit
    Comparators
    2
    Temperature Range (C)
    -40 to 85
    Operating Voltage Range (V)
    2 to 3.6
    Pin Count
    80
    Documentation
    Data Sheets
    06/13/2012
    7372KB
      Errata



    Errata
    09/30/2015
    118KB
    Errata
    03/08/2010
    230KB
      Programming Specifications




    Programming Specification
    12/21/2009
    381KB
      Application Notes



    AppNote
    07/13/2016
    2147KB
    AppNote
    06/27/2011
    427KB
    AppNote
    08/08/2017
    414KB
    AppNote
    01/05/2017
    439KB
    AppNote
    02/03/2010
    482KB
      Brochures




    Brochures
    07/27/2017
    3378KB
      aspxDesignNotes




    Design Notes
    01/30/2012
    176KB
      Product Selection Tools




    Product Line Card
    07/31/2017
    3479KB
      Sell Sheets




    Sell Sheets
    07/11/2011
    182KB
      Tips and Tricks



    Tips and Tricks
    02/01/2008
    561KB
    Tips and Tricks
    04/22/2009
    5964KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    PIC18F87J11-I/PT
    80
    TQFP
    -40C to +85C
    TRAY
    3.89
    3.57
    3.23
    2.97
    2.83
    PIC18F87J11T-I/PT
    80
    TQFP
    -40C to +85C
    T/R
    3.94
    3.61
    3.27
    3.01
    2.86


    ** Device not available to purchase online. Please contact a sales office for pricing information.
