MEC1633

In Production

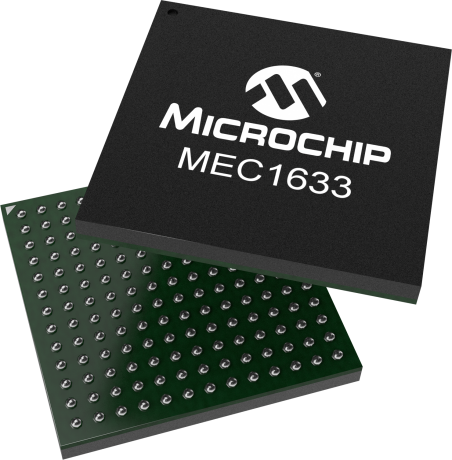

The MEC1633 is the mixed signal base component of a multi-device advanced I/O controller architecture which incorporates a high-performance 32-bit ARC 625D embedded microcontroller with a 192 Kilobyte Embedded Flash Subsystem, 16 Kilobytes of SRAM and a 1 Kilobyte EEPROM Emulation. It communicates with the system host using the Intel® Low Pin Count bus. The MEC1633 is the Embedded Controller Base Component of a split-architecture Advanced I/O Controller system that uses BC-LinkTM communication protocol to access up to three companion components. The MEC1633 is directly powered by two separate suspend supply planes (VBAT and VTR) and senses a third runtime power plane (VCC) to provide “instant on” and system power management functions. The MEC1633 also contains an integrated VTR Reset Interface and a system Power Management Interface that supports low-power states and can drive state changes as a result of hardware wake events as defined by the MEC1633 Wake Interface.



    Features

        • ARC-625D system controller
        • 169 LFBGA package
        • Embedded flash
        • 192KB Flash
        • 16KB RAM (65B CMOS)
        • 2K bytes EEPROM
        • 18x8 keyboard scan matrix
        • 135 GPIO Pins
        • 12 SMBus ports
        • 16 analog to digital converter channels
        • 3 LED
        • 4 low-power timers
        • 6 external diodes, 1 internal diode (temperature monitoring)
        • 16 PWM
        • 6 Fan Tachometer Inputs
        • MCU Serial Debug Port
        • Two pin serial debug port with 16C550A register interface
        • Flexible Flash programming interface
        • Port 80 BIOS Debug Port
        • Gang Programmer interface
        • JTAG interface
    Parameter Name
    Value
    Keyboard Scan Matrix
    18x8
    UART
    Y
    Host Interface
    LPC
    Code Storage
    Embedded Flash
    Operating Temperature
    0° C to +70° C
    Low Power Timers
    4
    Fan Tachometer Inputs
    6
    Max Operating Frequency
    20 Mhz
    Data RAM
    16KB RAM (65B CMOS)
    Breathing/ Blinking LED
    3
    GPIO
    135
    PWM
    16
    Package
    169 LFBGA
    VBAT-Powered, Power Control Interface
    Y
    LED
    3
    Analog to Digital Converter
    16 ch
    SMBus Ports
    12
    BC Link
    3
    SPI_Host
    2
    Flash/Code RAM
    192KB Flash
    EEPROM
    2000
    PECI
    3
    System Controller
    32-bit
    ACPI Interfaces
    4
    Counter/Timers
    4
    Documentation
      Boundary Scan BSDL




    BoundaryScanBSDL
    05/15/2013
    45KB
      IBIS



    IBIS
    10/28/2012
    428KB
    IBIS
    10/28/2012
    463KB
      Product Brief




    Product Brief
    09/10/2014
    307KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MEC1633-AUE-BLK00
    169
    LFBGA
    0C to +70C
    TRAY
    6.99
    5.82
    5.29
    5.11
    5.06

    MEC1633L-AUE
    169
    LFBGA
    Various
    TRAY
    **
    **
    **
    **
    **

    MEC1633X-AUE
    169
    LFBGA
    0C to +85C
    TRAY
    6.99
    5.82
    5.29
    5.11
    5.06


    ** Device not available to purchase online. Please contact a sales office for pricing information.
