Enhanced Dual Ch FXS ABS Wideband VoicePort
Status: Not Recommended for new designs
Add To Cart

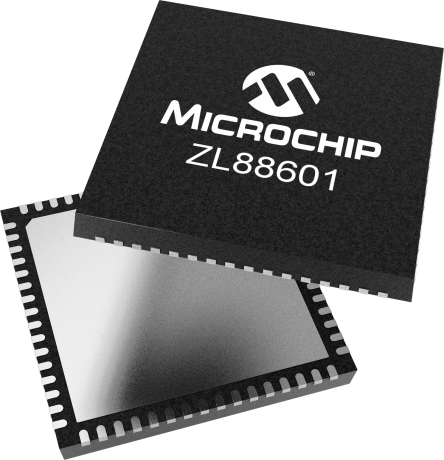

The Microchip Dual channel ZL88601 Automatic Battery Switching (ABS) Wideband VoicePort Device provides complete BORSCHT functions for two telephone line FXS ports. This device is a part of the new ZL880 Series featuring enhanced functionality, lower BOM cost, and greater power efficiency, while maintaining software compatibility with the industry leading VE880 Series.
Please consider this device
Next Generation ZL880 VoicePort Family with Enhanced Features and Performance Same API interface as the VE880 Series Low Bill of Materials (BOM) cost for 2 to 8 channel applications Complete BORSCHT Functions for Two FXS Channels in a Single 64-Pin QFN Package Battery feed, Over-voltage support, integrated Ringing, line Supervision, Codec, Hybrid (2W/4W), and Test Integrated Power Management Single power supply using integrated battery switches for lowest BOM cost Low Power Idle Mode with 60 mW consumption Internal FET drive circuit for lower BOM count Integrated real-time power monitoring tool Ringing 5 REN with pin for pin compatible 100-V (ZL88601) and 120-V (ZL88602) devices Internally generated sinusoidal or trapezoidal ringing with programmable DC offset Worldwide Programmability Input impedance, balance impedance, gain DC feed voltage and current limit Ringing frequency, voltage and current limit G.711 A-law, µ-law, or 16 bit linear coding Call progress tone and Caller ID generation Sample coefficients for more than 70 countries Per channel Wideband support Pin-Selectable PCM/SPI or ZSI Interfaces SPI Mode 0 and 3 support with no inter byte CS off time. Also supports legacy MPI Interface ZSI Mode for a smaller number of interface signals to the host and less expensive isolation
Broadband Gateway FXS
Output Voltage (V) max
