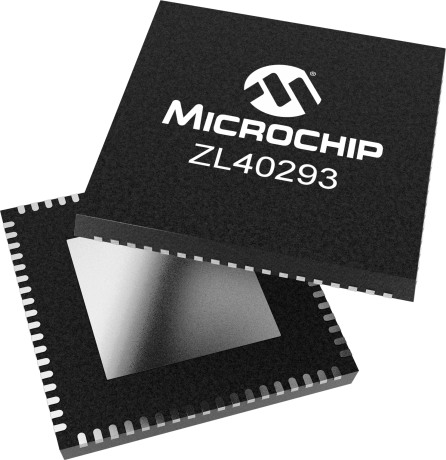

product primary image

ZL40293

DB2000 Low Jitter, Low Power PCIe Buffer

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The ZL40293 is part of a family of high-performance, ultra-low jitter, low power 1 to 20 HCSL fanout buffers. The ZL40293 can be used in PCIe Gen 1 through 5 applications requiring a 100 ohm termination.  Applications include PCI Express generation 1/2/3/4/5 clock distribution , Intel QPI Servers , Storage and Data Centers, Switches and Routers

For product comparison, please consider: ZL40292

Additional Features
  • Fully Compliant with PCIe 1, 2, 3, 4 and 5 Specifications
  • 20 Low-Power Push-Pull HCSL PCIe Outputs
  • Ultra-low additive jitter: 10fs maximum (as per PCIe 5.0)
  • Supports clock frequencies from 0 to 250MHz
  • Supports 3.3V power supplies
  • Embedded Low Drop Out (LDO) Voltage regulator provides superior Power Supply Noise Rejection
  • Maximum output to output skew of 50ps
  • SMBus Interface
  • Eight OE pins
  • Embedded series terminations adjusted for 100Ω differential transmission line
  • Transparent for Spread-Spectrum Clock
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Fanout Buffer
Input
LVCMOS/HCSL
Output
HCSL
Supply Voltage
3.3
Power Supply
3.3
Max Within Device Skew (ps)
50
OE
True
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Voltage
3.3

Documents

Jump to:

Data Sheets


897KB

Board Design Files


96KB

Brochures


663KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ZL40293LDF1
0.262000
0.150000
72
VQFN
10x10x1mm
Matte Tin
e3
ZL40293LDG1
0.262000
0.150000
72
VQFN
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
